Frequently Asked Questions (FAQ)

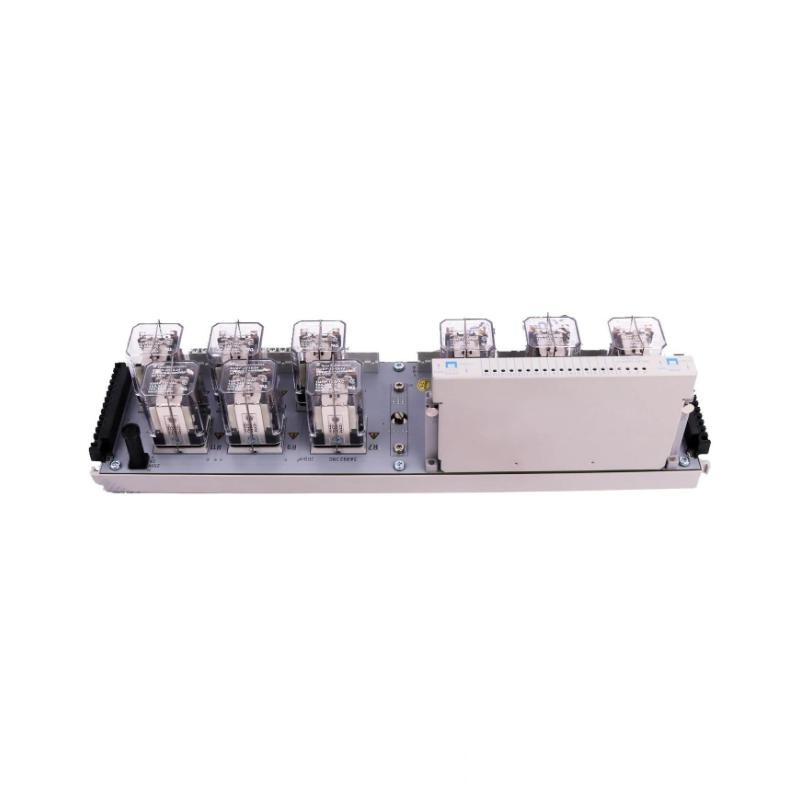

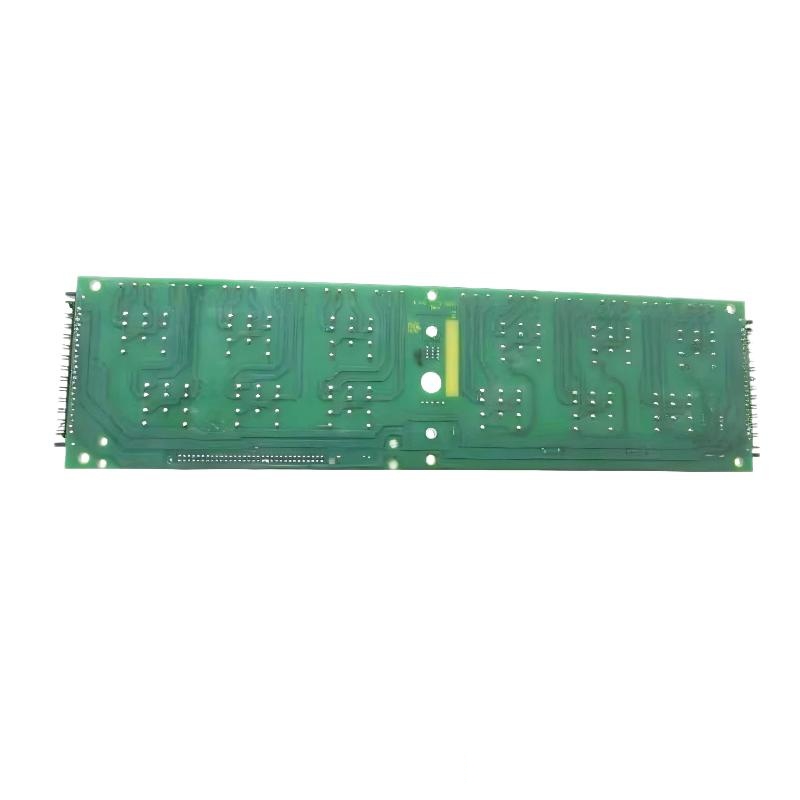

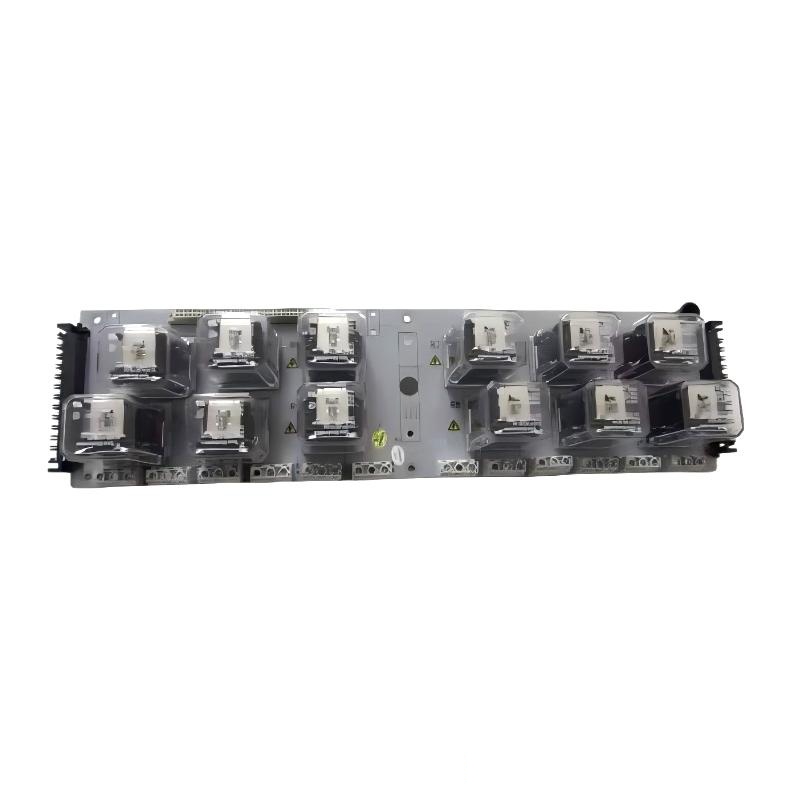

Q1: What is the function of the 1C31222G01 relay output panel?
A1: It provides 16 relay outputs to control field devices such as motors, solenoids, and alarm systems in industrial environments.

Q2: How is this module connected to the Ovation system?
A2: It connects via standardized Ovation I/O channels and integrates directly into Ovation DCS racks or panels.

Q3: What type of relays are used in this panel?
A3: The module uses Form C (SPDT) relays, which allow both normally open and normally closed configurations.

Q4: Can it be used for both AC and DC loads?
A4: Yes, it supports 24 VDC and 120 VAC, making it versatile for a variety of applications.

Q5: What is the response time for relay switching?
A5: It features a fast response time of ≤10 milliseconds.

Q6: Is the panel suitable for outdoor or extreme environments?
A6: Yes, the unit is rated for temperatures from -20°C to +70°C and is built to operate reliably in tough conditions.

Q7: How many devices can be controlled with one panel?
A7: Up to 16 separate field devices can be controlled with the relay outputs.

Q8: Does it require any special software to configure?
A8: No special software is required; it is fully integrated into the Ovation DCS programming environment.

Q9: How does this panel ensure safety?
A9: It includes 1500 V isolation and industry-standard certifications to prevent field-device interference with the control system.

Q10: Is maintenance complex?
A10: No, it is designed for easy maintenance with panel-mounted connectors and replaceable relay components.
