FAQ (Q&A)

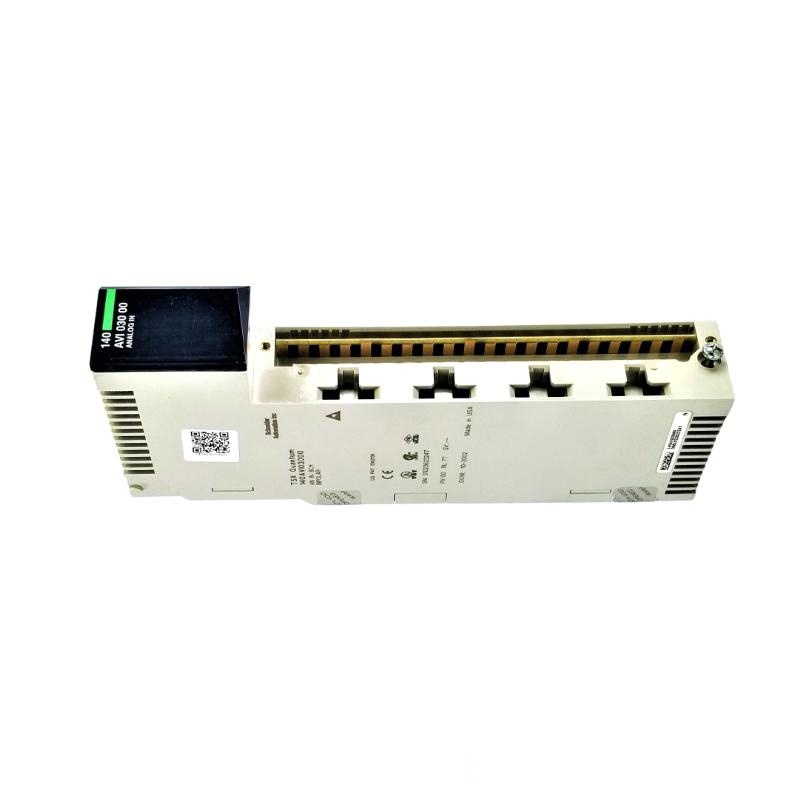

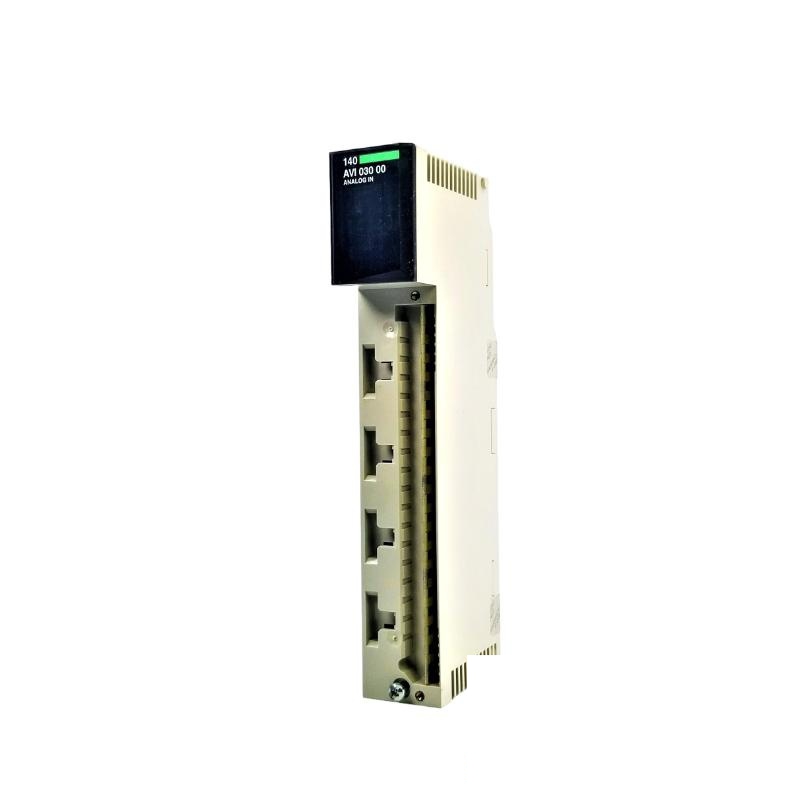

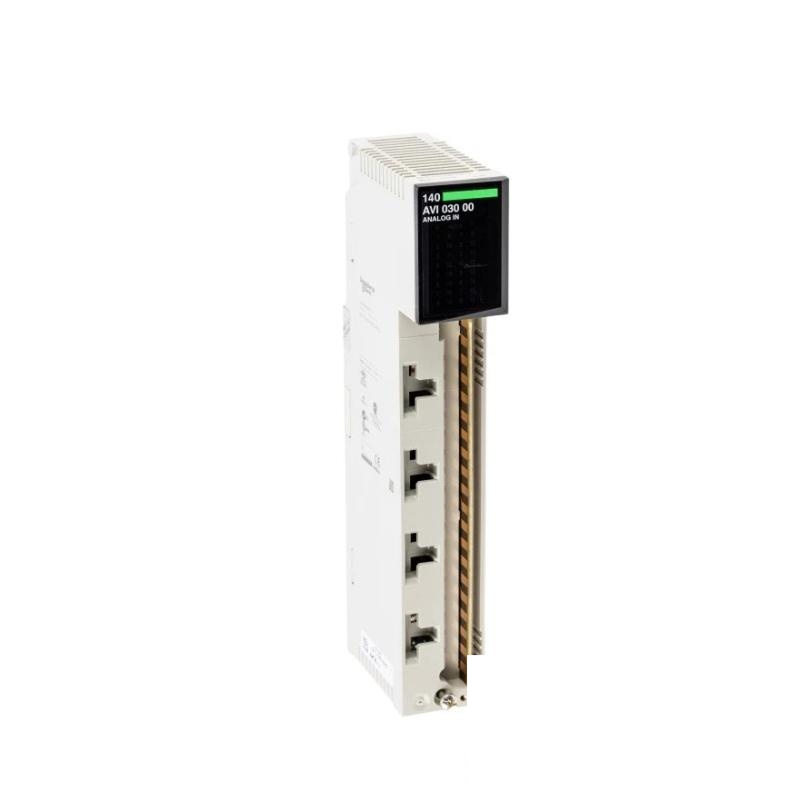

Q1: How many analog inputs does the 140AVI03000C support?
A1: It supports 8 analog inputs.

Q2: What types of signals can the module accept?
A2: It accepts voltage signals (±10 V) and current signals (4-20 mA).

Q3: What is the input resolution of this module?
A3: The module uses a 16-bit ADC for high resolution.

Q4: Is the module compatible with other Modicon Quantum PLC modules?
A4: Yes, it integrates seamlessly with the Modicon Quantum series.

Q5: What are the physical dimensions of the module?
A5: The module measures 103.9 mm (W) × 40.3 mm (H) × 250 mm (D).

Q6: What is the operating temperature range?
A6: The module operates between -20°C and +60°C.

Q7: How much does the module weigh?
A7: It weighs approximately 0.3 kg.

Q8: What is the input impedance for voltage signals?
A8: The input impedance for voltage inputs is greater than 100 kΩ.

Q9: Can this module sample signals at a high rate?
A9: Yes, it can sample up to 10 samples per second per channel.

Q10: What communication protocol does it use?
A10: It uses Modbus protocol over the Quantum bus.
