Frequently Asked Questions (FAQ)

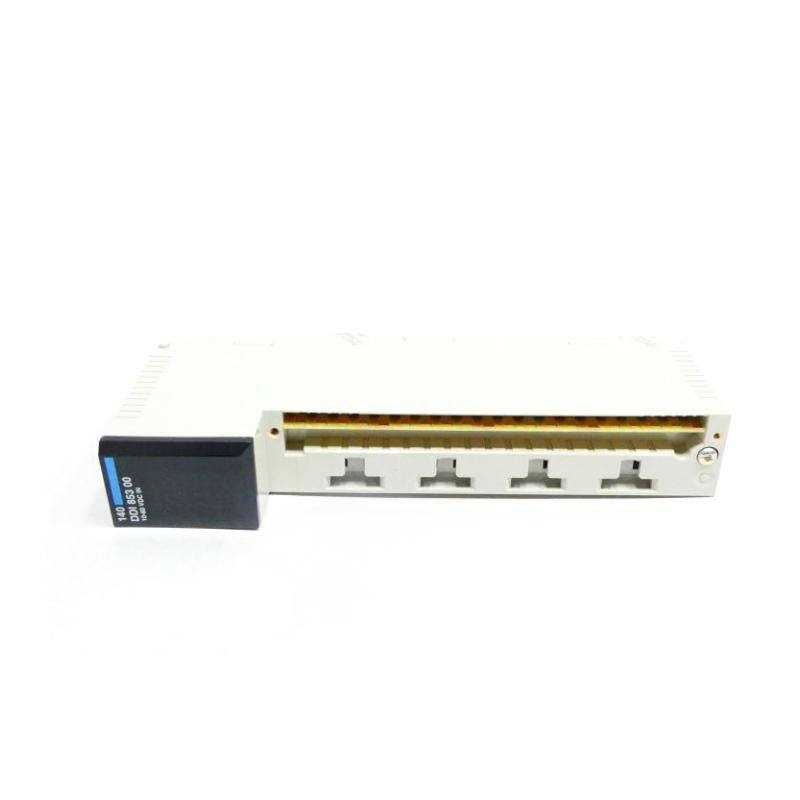

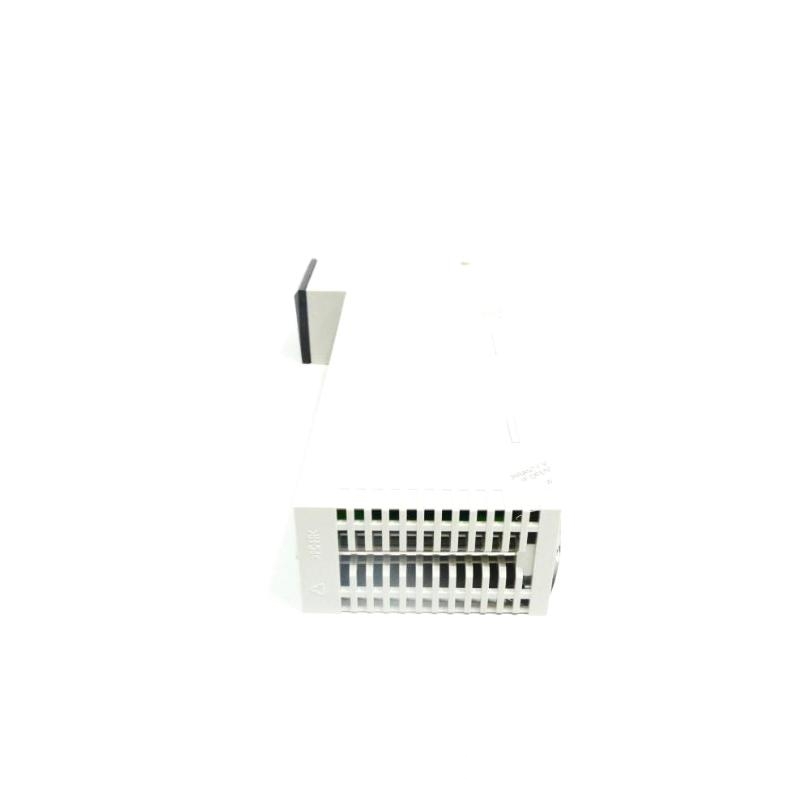

Q1: How many discrete inputs does the 140DDI85300 module support?
A1: The module supports 32 discrete inputs.

Q2: What is the input voltage for the 140DDI85300 module?
A2: The module operates with a 24 V DC input voltage.

Q3: What is the response time of the module?
A3: The module has a response time of 1 ms (nominal).

Q4: What is the isolation level for the inputs on this module?
A4: The module provides 500 V isolation between inputs and internal circuits.

Q5: How much current does each input draw?
A5: Each input draws a nominal current of 6 mA.

Q6: Can the module be mounted on a DIN rail?
A6: Yes, the module is designed for DIN rail mounting.

Q7: What is the operating temperature range of the 140DDI85300?
A7: The operating temperature range is from –20°C to +60°C.

Q8: Does the module have diagnostic features?
A8: Yes, the module has diagnostic LEDs that provide status information and help with troubleshooting.

Q9: What is the weight of the module?
A9: The 140DDI85300 module weighs 0.295 kg.

Q10: What are the certifications for this module?
A10: The module complies with CE, UL, and CSA standards.
