FAQ (Frequently Asked Questions)

Q1: What is the Schneider BMXDRA1605 module used for?

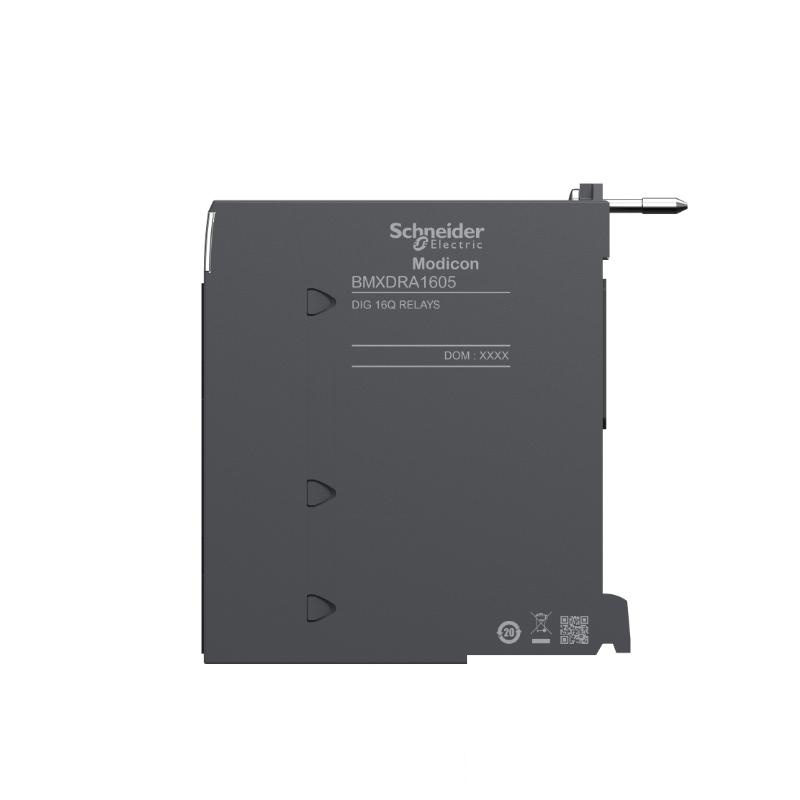

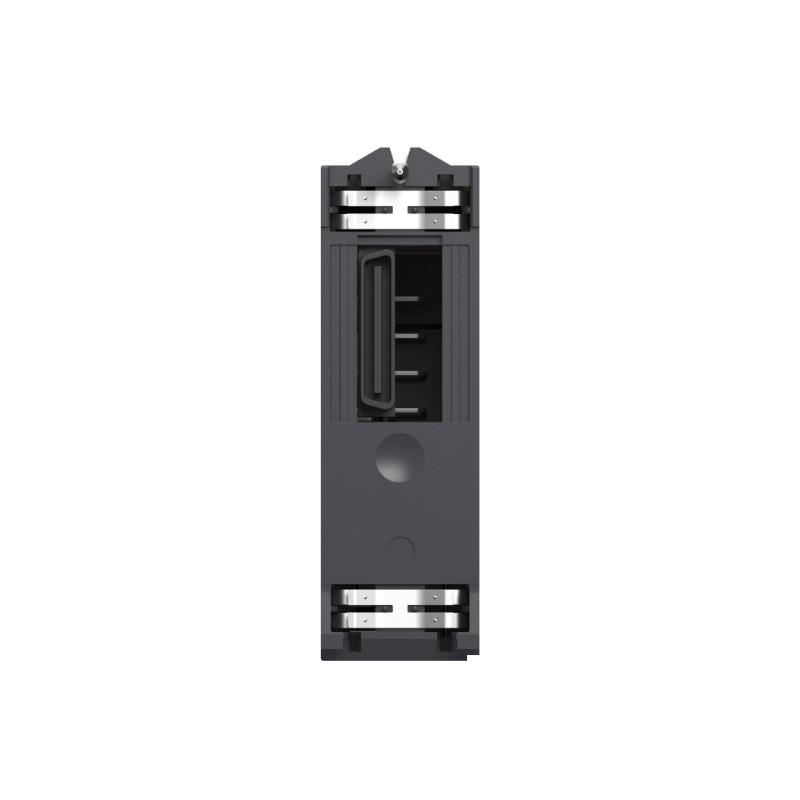

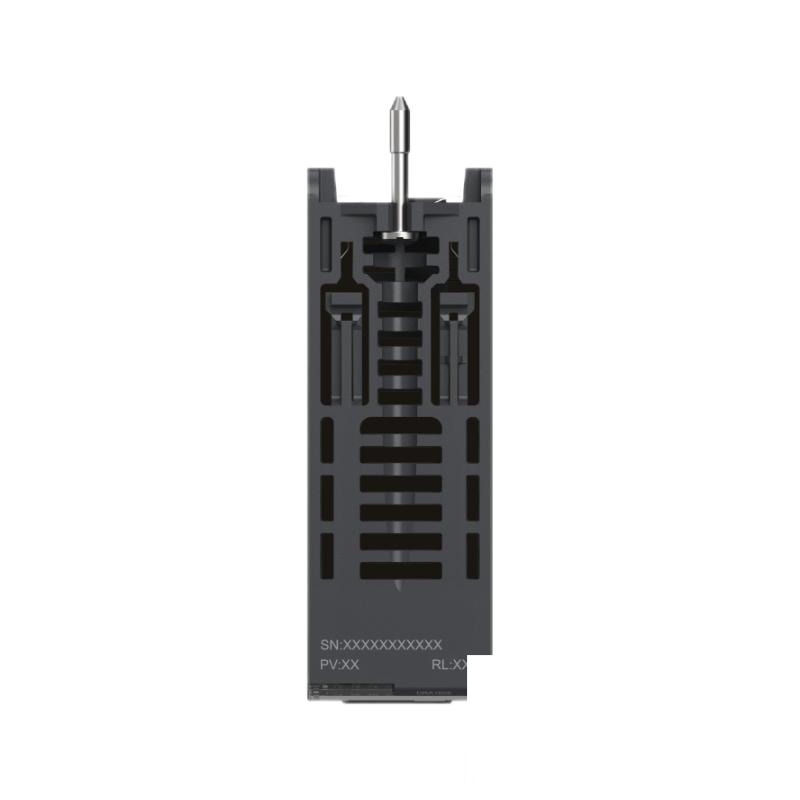

A1: The Schneider BMXDRA1605 is a Discrete Output Module used in the Modicon X80 series PLC system for controlling field devices such as solenoids, relays, and actuators with 24 VDC output signals.

Q2: How many outputs does the BMXDRA1605 module have?

A2: The BMXDRA1605 module has 16 discrete outputs, all capable of sourcing 24 VDC.

Q3: What is the output voltage of the BMXDRA1605 module?

A3: The module provides a 24 VDC output, suitable for most industrial automation applications.

Q4: How does the BMXDRA1605 module mount?

A4: The module is rack-mounted and is compatible with the Modicon X80 series PLC racks.

Q5: What is the response time of the BMXDRA1605 module?

A5: The response time of the BMXDRA1605 is less than 1 ms, making it ideal for high-speed applications.

Q6: Can the BMXDRA1605 module handle both positive and negative logic?

A6: No, the BMXDRA1605 module is configured for sourcing (positive logic), but other modules in the Modicon X80 series may support sinking logic.

Q7: What is the operating temperature range of the BMXDRA1605 module?

A7: The BMXDRA1605 operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.

Q8: Is the BMXDRA1605 module certified for global standards?

A8: Yes, the BMXDRA1605 is certified by UL, CE, CSA, and ROHS, ensuring compliance with international standards.

Q9: What are the mounting options for the BMXDRA1605?

A9: The module is designed to be rack-mounted as part of the Modicon X80 series PLC system.

Q10: What is the weight of the BMXDRA1605 module?

A10: The BMXDRA1605 module weighs approximately 0.15 kg, making it lightweight and easy to install.
