Frequently Asked Questions (FAQs):

Q1: What is the BMXFTB2020 used for?

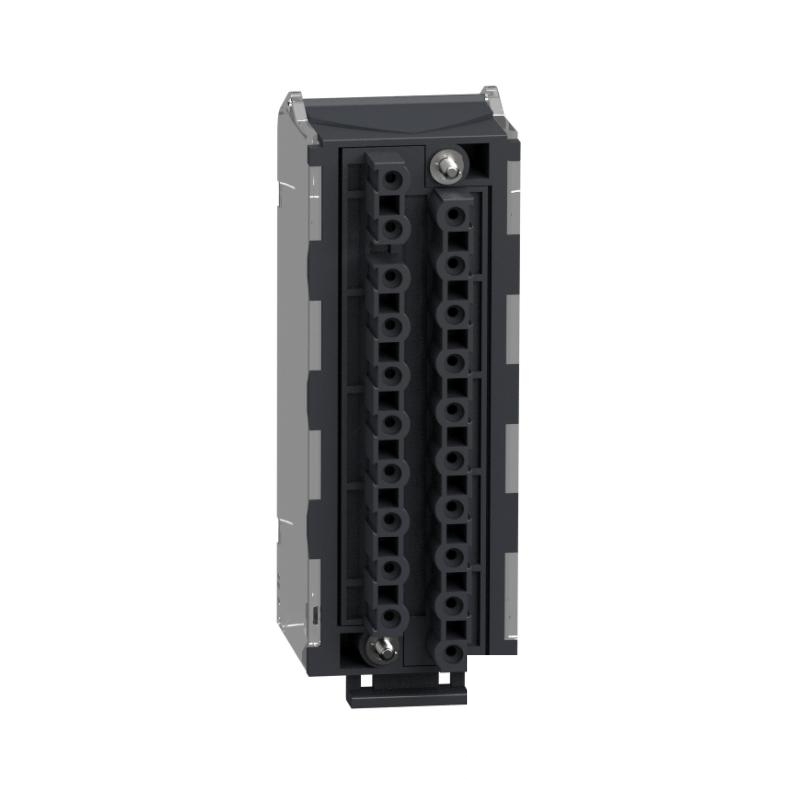

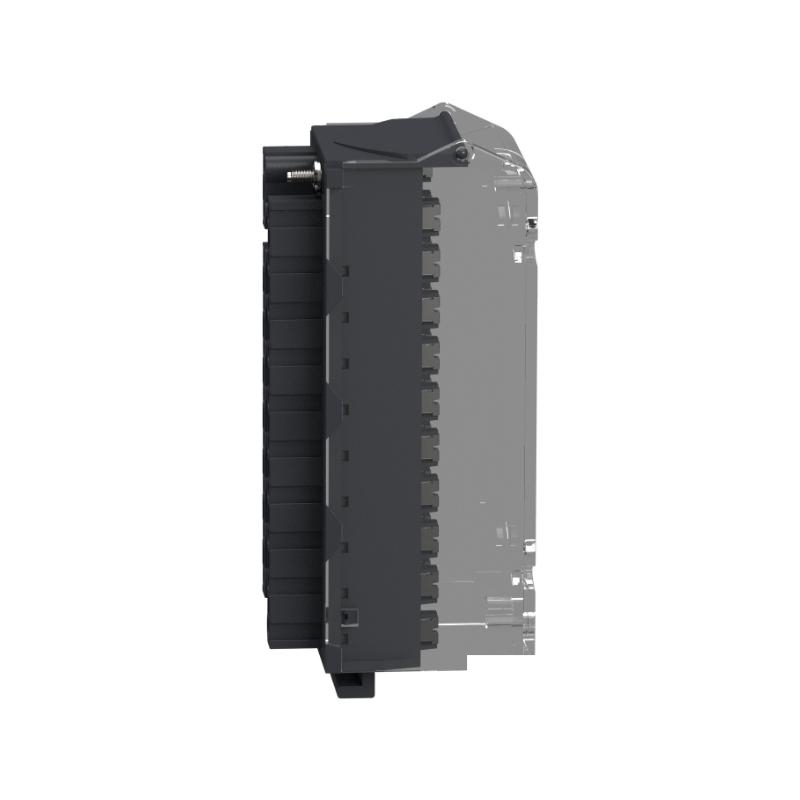

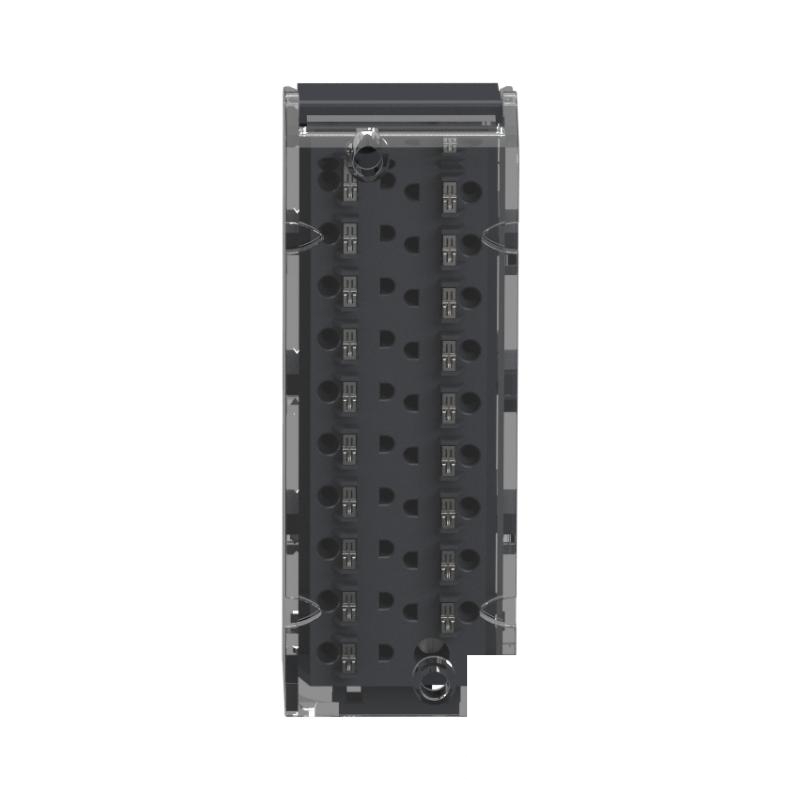

A1: The BMXFTB2020 is a 20-pin removable spring terminal block designed to provide secure, tool-free wiring for Schneider Electric’s Modicon X80 series I/O modules.

Q2: Can the BMXFTB2020 be used in high-vibration environments?
A2: Yes, the BMXFTB2020 is designed to meet IEC 60068-2-6 vibration resistance standards, making it ideal for industrial environments with high vibration levels.

Q3: What wire sizes does the BMXFTB2020 support?
A3: The BMXFTB2020 supports wire sizes from 0.2 mm² to 2.5 mm² (24-14 AWG), allowing flexibility for various wiring configurations.

Q4: Is it possible to install the BMXFTB2020 without tools?
A4: Yes, the spring terminal technology allows for tool-free wiring, making installation quick and easy.

Q5: What is the rated voltage and current for the BMXFTB2020?
A5: The BMXFTB2020 is rated for 250V AC/DC and up to 10A per connection.

Q6: How does the spring terminal mechanism work?
A6: The spring terminal uses a mechanical spring system that automatically applies pressure to the wire, providing a secure connection without the need for screws or tools.

Q7: What are the dimensions and weight of the BMXFTB2020?
A7: The BMXFTB2020 measures 91.4 x 41.8 x 32 mm and weighs 0.093 kg.

Q8: Can this terminal block be easily removed for maintenance?
A8: Yes, the removable design allowsfor easy disconnection for maintenance or reconfiguration.

Q9: Does the BMXFTB2020 comply with safety standards?
A9: Yes, the BMXFTB2020 complies with IEC 61131-2, UL, CSA, and CE standards for safety and performance.

Q10: Is this terminal block compatible with other Modicon X80 modules?
A10: Yes, the BMXFTB2020 is designed specifically for use with Modicon X80 series modules, ensuring seamless integration.
