Frequently Asked Questions (FAQ)

Q1: What is the main function of the BMXXBE1000 module?

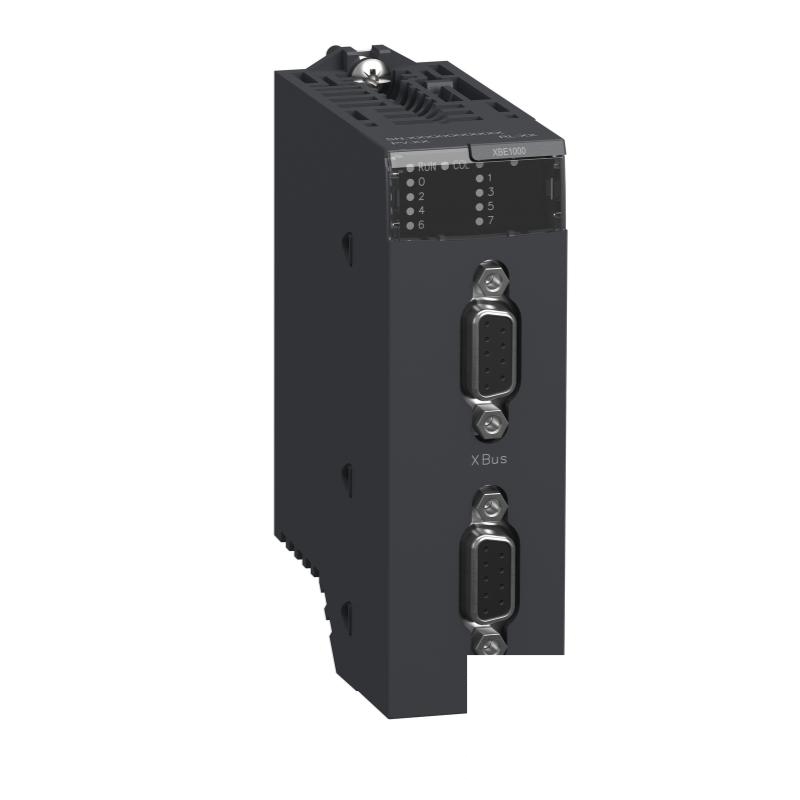

A1: The BMXXBE1000 is a backplane extension module for the Modicon M340 PLC, designed to expand the rack by providing additional slots for mounting I/O modules.

Q2: What communication protocols does the BMXXBE1000 support?
A2: The BMXXBE1000 does not directly communicate; it facilitates the addition of I/O modules, which support various protocols such as Modbus TCP and Ethernet.

Q3: What are the dimensions of the BMXXBE1000?
A3: The BMXXBE1000 has the dimensions of 104 x 77 x 33 mm.

Q4: How much does the BMXXBE1000 weigh?
A4: The weight of the BMXXBE1000 is 0.178 kg.

Q5: What is the power supply requirement for the BMXXBE1000?
A5: The BMXXBE1000 is powered through the Modicon M340 rack’s power supply.

Q6: Can the BMXXBE1000 be used with other Schneider Electric PLCs?
A6: No, the BMXXBE1000 is specifically designed for use with the Modicon M340 PLC system.

Q7: Is the BMXXBE1000 suitable for harsh environments?
A7: Yes, it is designed to withstand industrial conditions, including vibration and temperature ranges from -20°C to 60°C.

Q8: How does the BMXXBE1000 help in automation systems?
A8: It expands the system’s I/O capacity, making it easier to control more devices and integrate additional modules as the system grows.

Q9: What types of modules can be added with the BMXXBE1000?
A9: The BMXXBE1000 supports the addition of Modicon M340 I/O modules, such as analog/digital input/output modules, communication modules, and power supply modules.

Q10: What is the mounting type of the BMXXBE1000?
A10: The module is mounted via a snap-on design on the Modicon M340 rack, making installation easy and fast.
