Frequently Asked Questions (FAQ)

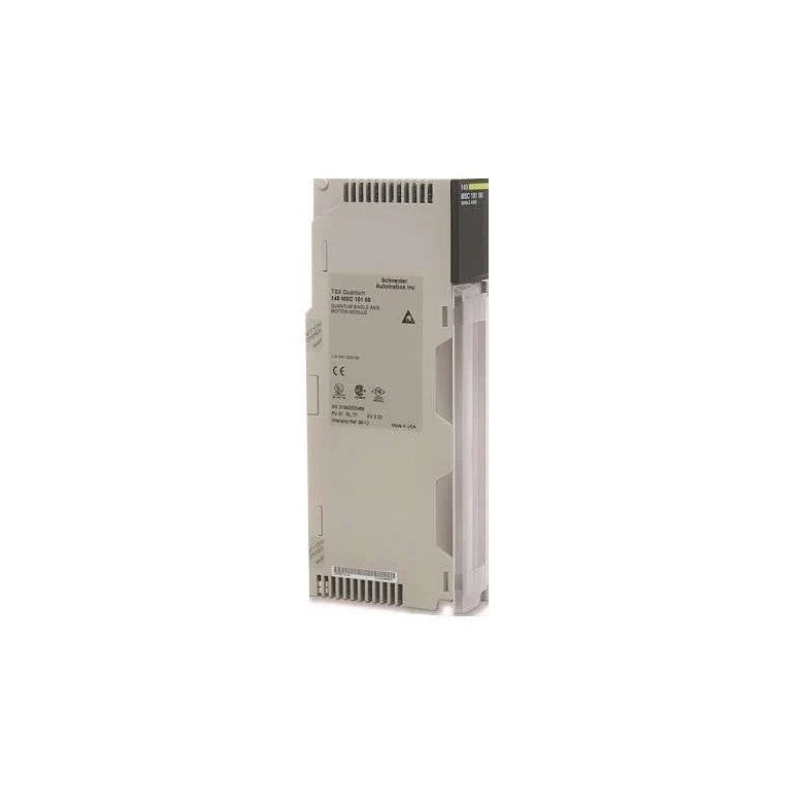

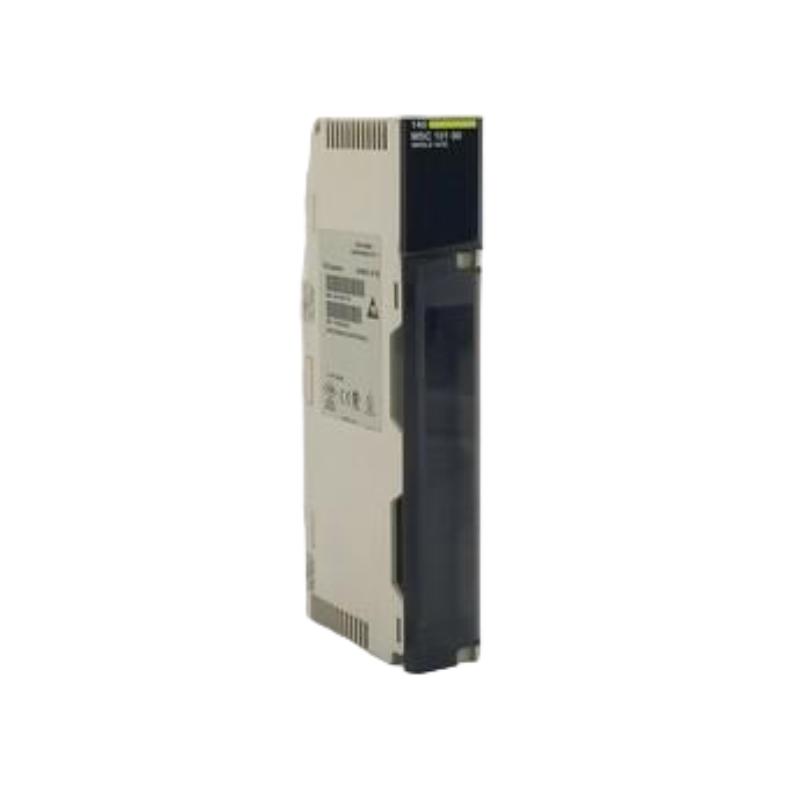

Q1: What is the primary function of the 140MSC10100 module?

A1: The 140MSC10100 is a communication module that enables Modicon M340 PLC systems to communicate with remote devices using Modbus TCP and Ethernet. It facilitates high-speed data exchange, improving real-time control and monitoring in industrial automation.

Q2: How is the 140MSC10100 module installed?

A2: The 140MSC10100 module is mounted on a DIN rail. After securing it, connect the required power supply and communication cables to ensure proper operation.

Q3: What power supply is needed for the 140MSC10100?

A3: The 140MSC10100 operates with a 24V DC power supply.

Q4: What communication protocols does the 140MSC10100 support?

A4: The module supports Modbus TCP and Ethernet communication protocols, which allow fast and reliable data transfer between devices.

Q5: Can the 140MSC10100 module be used outdoors?

A5: The 140MSC10100 has an IP20 rating, which means it is designed for indoor use only. For outdoor applications, additional protective housing may be required.

Q6: What is the operating temperature range for the 140MSC10100 module?

A6: The module operates within the temperature range of 0°C to 60°C, making it suitable for most industrial environments.

Q7: How many Ethernet ports does the 140MSC10100 have?

A7: The 140MSC10100 features 2 Ethernet ports for reliable communication between devices.

Q8: How do I configure the 140MSC10100 module?

A8: The module can be configured using Schneider Electric’s EcoStruxure™ Control Expert software, which provides an easy-to-use interface for programming and system integration.

Q9: What is the weight of the 140MSC10100 module?

A9: The 140MSC10100 weighs approximately 0.45 kg, making it lightweight and easy to install.

Q10: Is the 140MSC10100 compatible with other Modicon PLC models?

A10: Yes, the 140MSC10100 is fully compatible with other Modicon M340 series devices, making it a versatile component for various industrial automation systems.
