Frequently Asked Questions (FAQ)

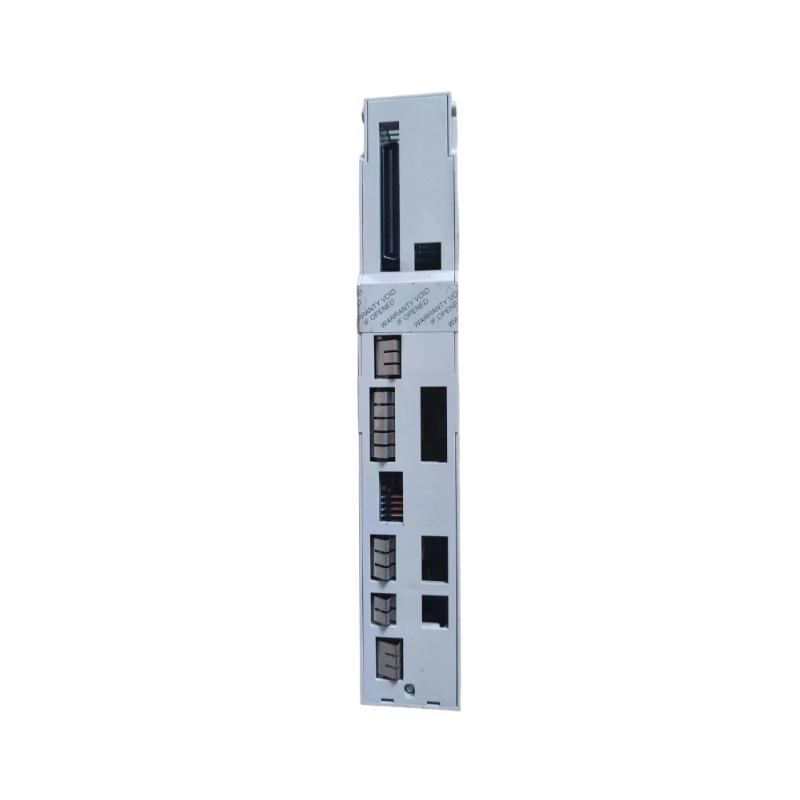

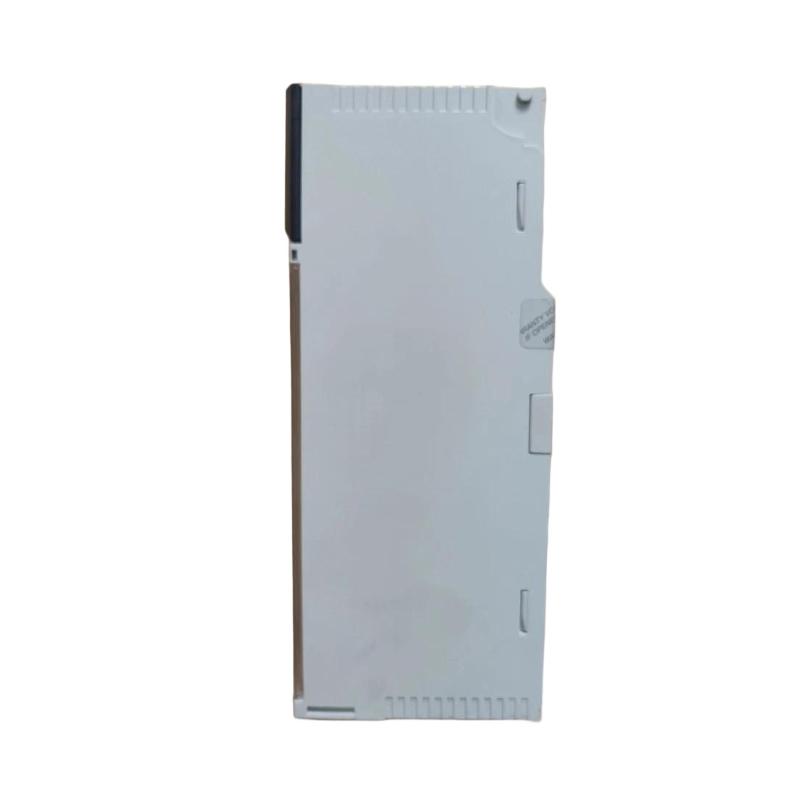

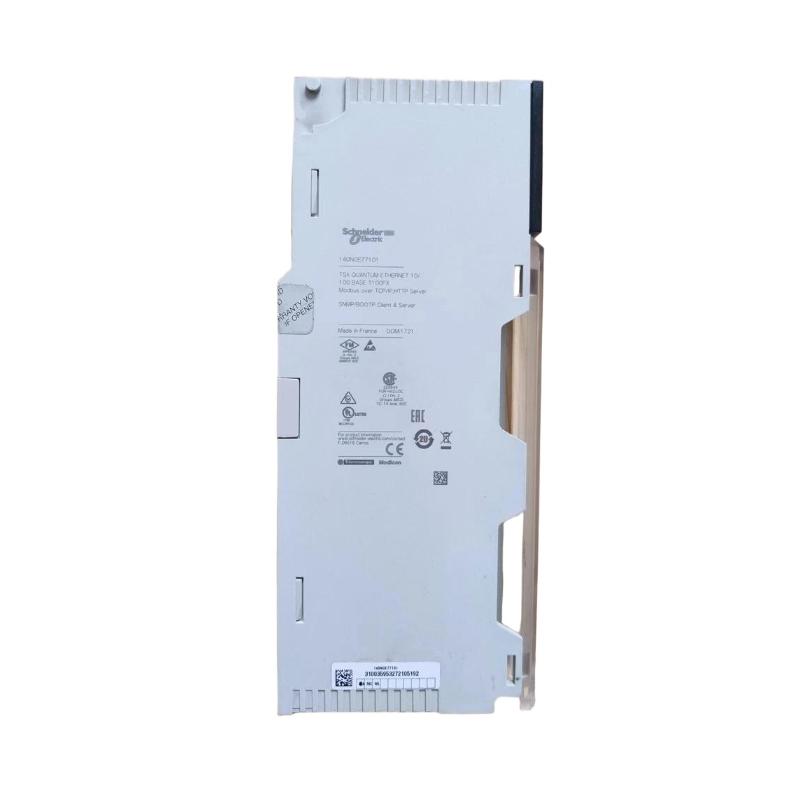

Q1: What is the primary function of the 140N0E77101 module?

A1: The 140N0E77101 is a communication module for Modicon M340 PLC systems. It supports Modbus TCP and Ethernet protocols, enabling fast and reliable communication between devices in industrial automation systems.

Q2: How is the 140N0E77101 module installed?

A2: The 140N0E77101 module is mounted on a DIN rail. Once installed, it can be connected to a 24V DC power supply and configured using Schneider Electric’s EcoStruxure™ Control Expert software.

Q3: What power supply is required for the 140N0E77101?

A3: The module requires a 24V DC power supply for operation.

Q4: What communication protocols does the 140N0E77101 support?

A4: The 140N0E77101 supports Modbus TCP and Ethernet communication protocols, ensuring high-speed data transfer between connected devices.

Q5: Can the 140N0E77101 module be used outdoors?

A5: The 140N0E77101 is rated IP20, which means it is designed for indoor use. For outdoor applications, additional protective housing would be necessary.

Q6: What is the operating temperature range for the 140N0E77101 module?

A6: The module operates within a temperature range of 0°C to 60°C, making it suitable for most industrial environments.

Q7: How many Ethernet ports does the 140N0E77101 have?

A7: The 140N0E77101 module has 2 Ethernet ports, providing flexible communication options for system integration.

Q8: How do I configure the 140N0E77101 module?

A8: The 140N0E77101 module can be configured using EcoStruxure™ Control Expert software, which provides a user-friendly interface for easy programming and setup.

Q9: What is the weight of the 140N0E77101 module?

A9: The 140N0E77101 weighs approximately 0.45 kg, making it compact and easy to handle during installation.

Q10: Is the 140N0E77101 compatible with other Modicon PLC systems?

A10: Yes, the 140N0E77101 is compatible with other Modicon M340 series devices, making it a versatile choice for a wide range of industrial automation systems.
