Frequently Asked Questions (FAQs)

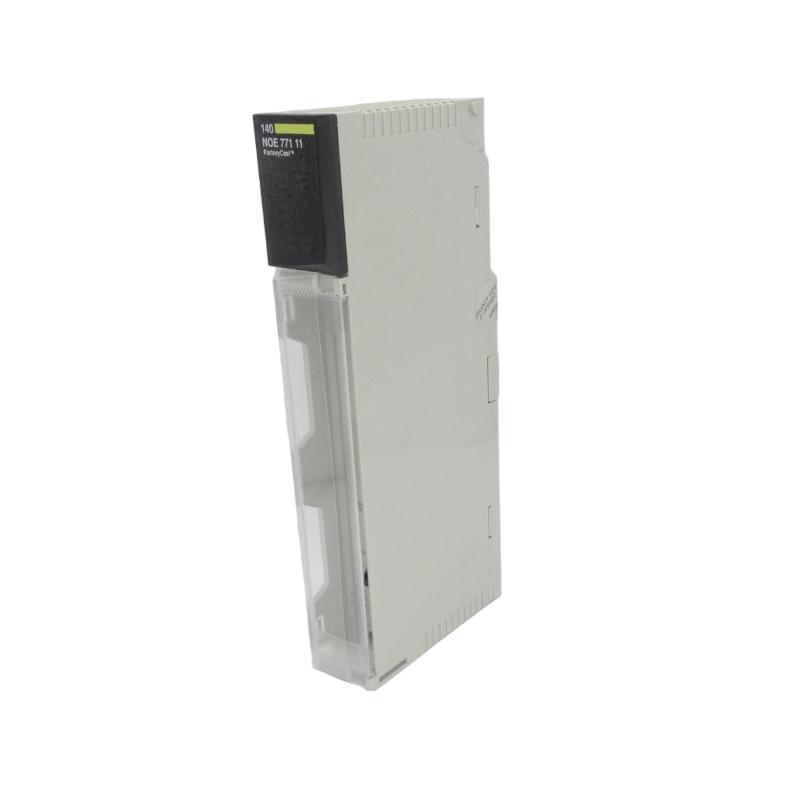

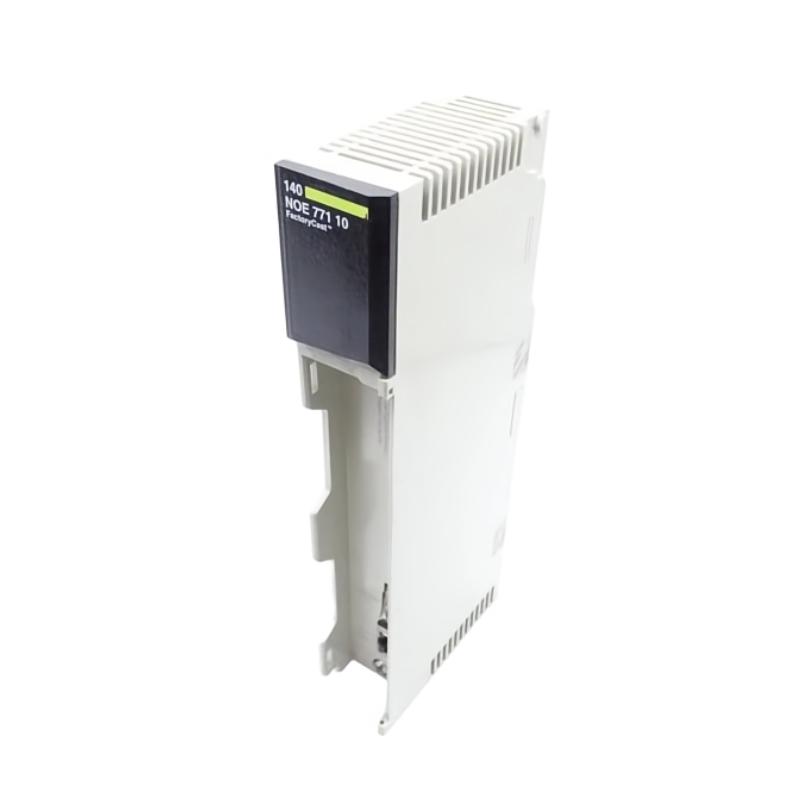

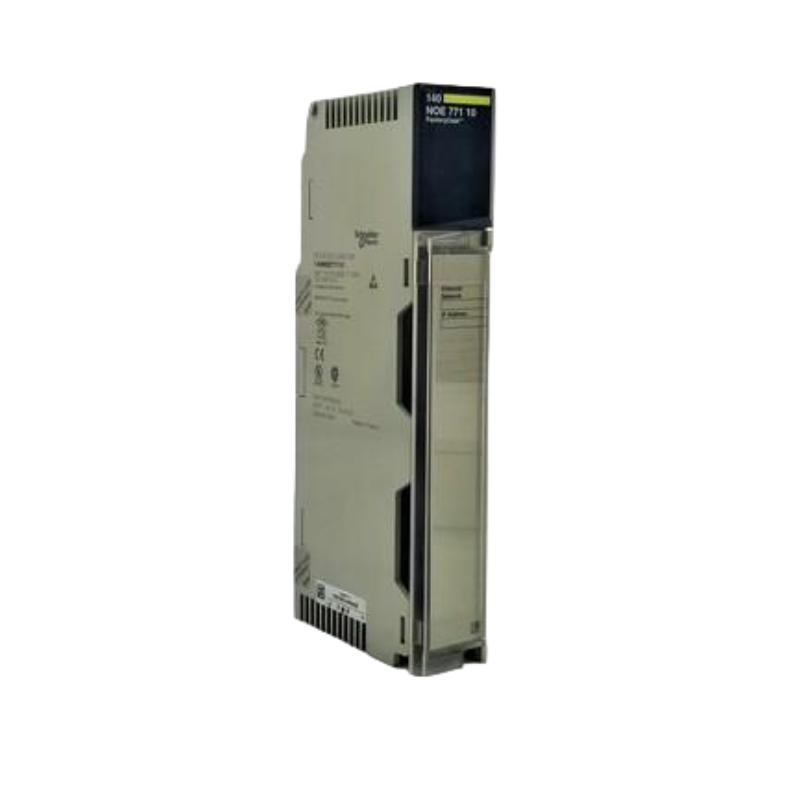

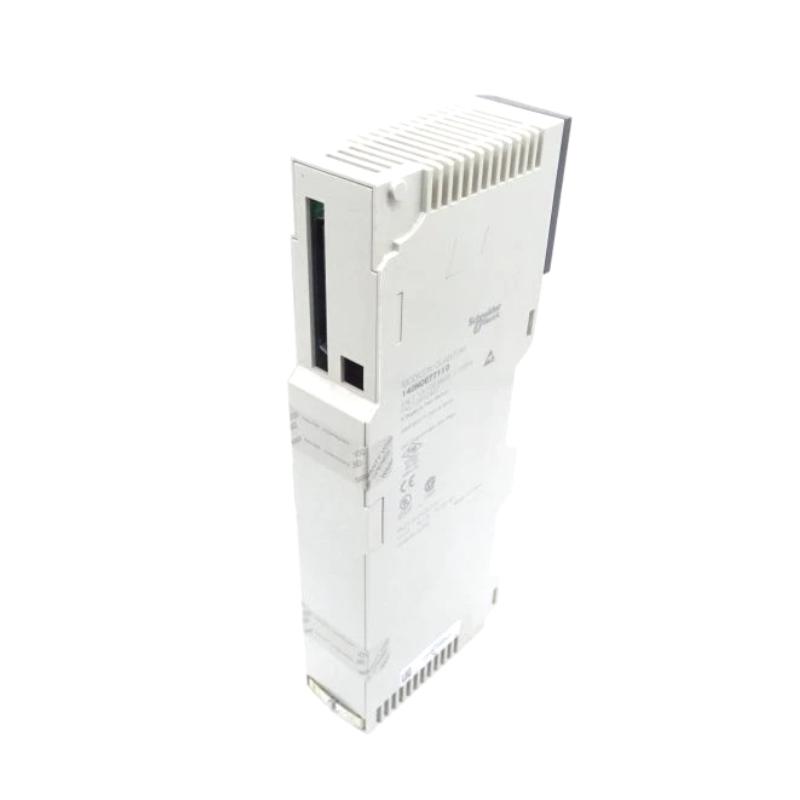

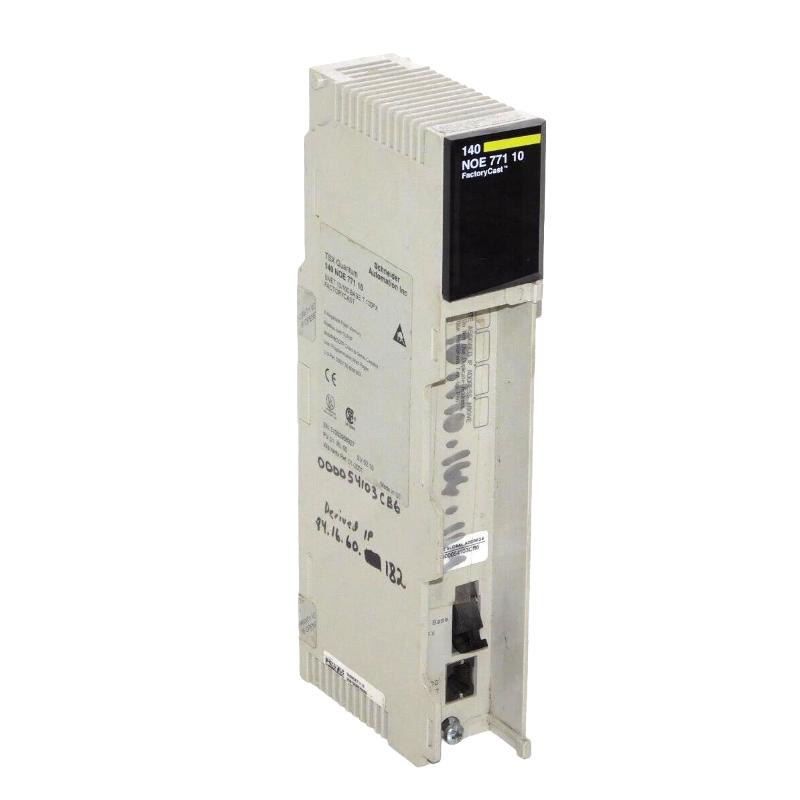

Q1: What is the function of the 140NOE77110C module?

A1: The 140NOE77110C is an Ethernet I/O module used to provide high-speed communication between Programmable Logic Controllers (PLCs) and industrial field devices via Modbus TCP/IP. It allows for the seamless transmission of both digital and analog signals.

Q2: What types of I/O does the 140NOE77110C support?

A2: The module supports 8 digital inputs, 8 digital outputs, 4 analog inputs, and 4 analog outputs, providing flexible connectivity options for various industrial devices.

Q3: How is the 140NOE77110C powered?

A3: The 140NOE77110C is powered by a 24V DC power supply, which is commonly used for industrial I/O modules, ensuring stable operation in industrial environments.

Q4: What is the operating temperature range of the 140NOE77110C?

A4: The 140NOE77110C operates within a temperature range of -20°C to +60°C, making it suitable for most industrial environments.

Q5: What is the protection class of the 140NOE77110C?

A5: The 140NOE77110C has an IP20 protection rating, meaning it is protected against solid objects greater than 12mm but is not suitable for environments with moisture exposure.

Q6: How is the 140NOE77110C mounted?

A6: The module is designed for DIN rail mounting, which is the standard method for installing industrial modules in control panels and enclosures.

Q7: What are the dimensions and weight of the 140NOE77110C?

A7: The 140NOE77110C measures 90 x 120 x 65 mm and weighs approximately 0.38 kg, making it compact and lightweight for easy installation.

Q8: Can the 140NOE77110C module be used in outdoor applications?

A8: No, the 140NOE77110C is designed for indoor use with an IP20 protection class, meaning it is not suitable for exposure to outdoor conditions or moisture.

Q9: How many devices can be connected to the 140NOE77110C module?

A9: The 140NOE77110C supports up to 8 digital inputs, 8 digital outputs, 4 analog inputs, and 4 analog outputs, which allows for the connection of a variety of industrial devices.

Q10: Is the 140NOE77110C compatible with other Schneider Electric products?

A10: Yes, the 140NOE77110C is fully compatible with other Modicon PLCs and devices that use the Modbus TCP/IP protocol, allowing for seamless integration into existing Schneider Electric automation systems.
