9. Frequently Asked Questions (FAQ)

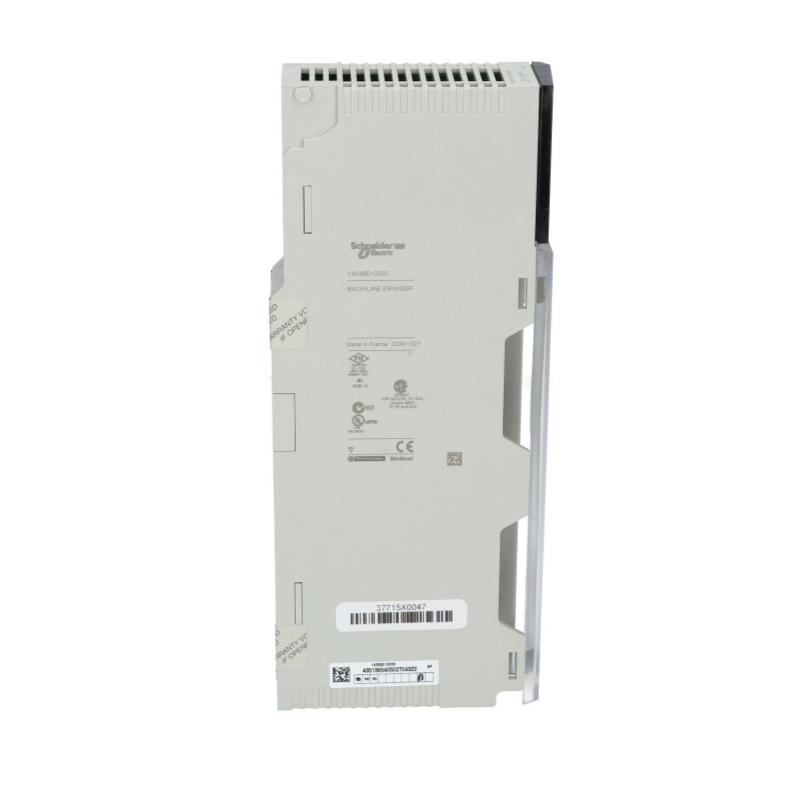

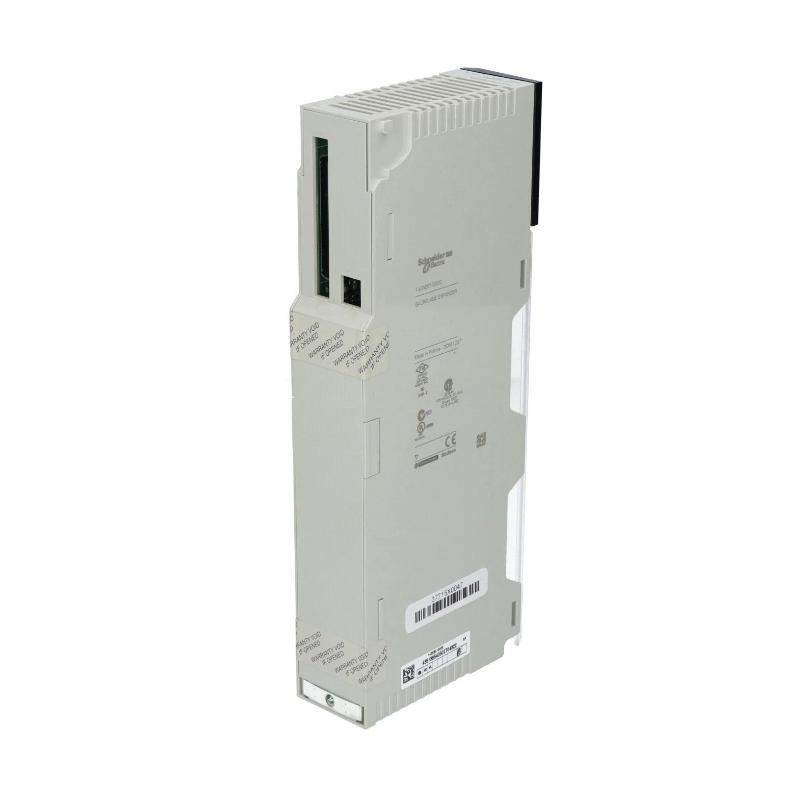

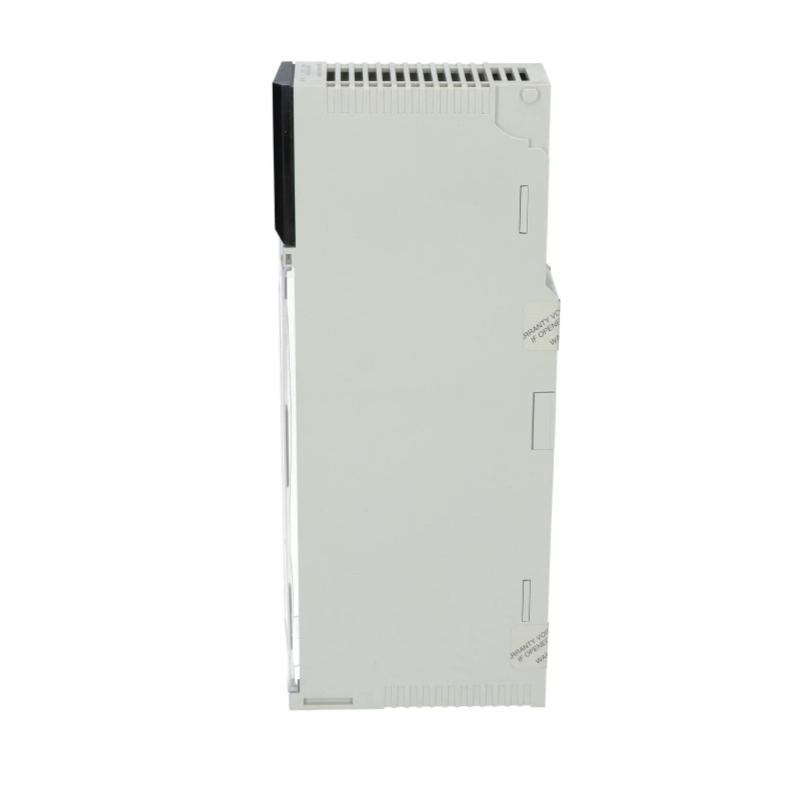

Q1: What is the main purpose of the 140XBE10000?
A1: It is designed to expand the backplane capacity of a modular automation rack, allowing additional modules to be installed as needed.

Q2: How many additional slots does this module provide?
A2: The module provides eight additional slots for module expansion.

Q3: What type of backplane does it support?
A3: It supports a high‑speed 32‑bit extension bus for signal and power distribution.

Q4: What is the approximate weight of the module?
A4: The module weighs approximately 1.45 kg.

Q5: What mounting configuration is required?
A5: It is designed to be installed directly into the existing automation rack.

Q6: Can this module be used in harsh industrial environments?
A6: Yes, it is built to operate within industrial temperature and humidity ranges.

Q7: Does this module affect signal integrity?
A7: No, the high‑speed extension bus and shielding ensure stable signal transmission across the rack.

Q8: Is additional wiring required for power distribution?
A8: The module provides internal backplane power distribution and minimizes external wiring.

Q9: Can this be used for distributed control systems?
A9: Yes, it supports distributed architectures by facilitating added modules across extended racks.

Q10: How should maintenance be performed?
A10: Maintenance typically involves inspecting connectors and replacing modules individually without interrupting the entire system.
