FAQ (Frequently Asked Questions)

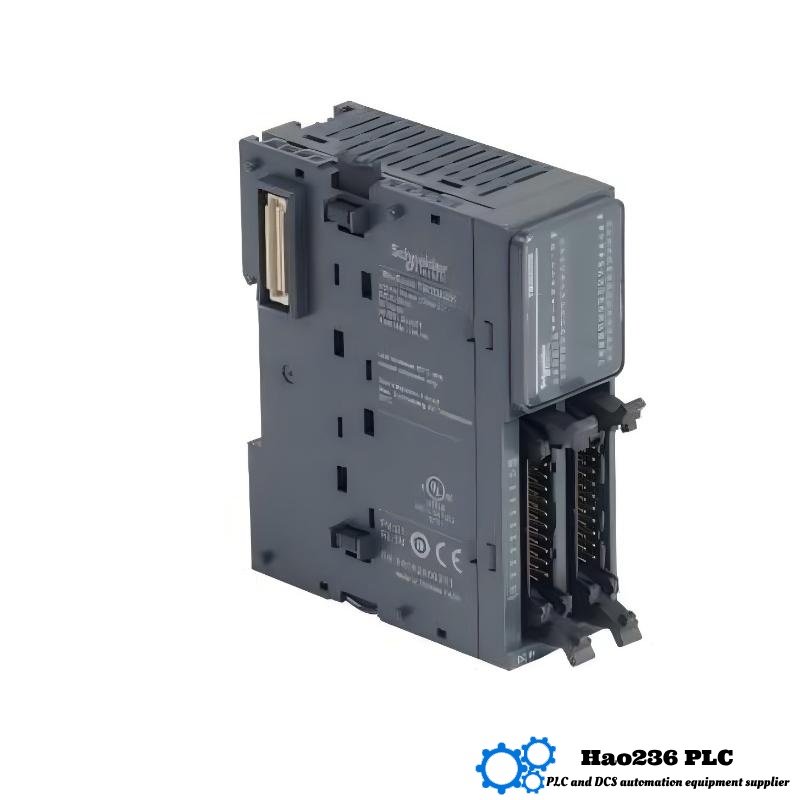

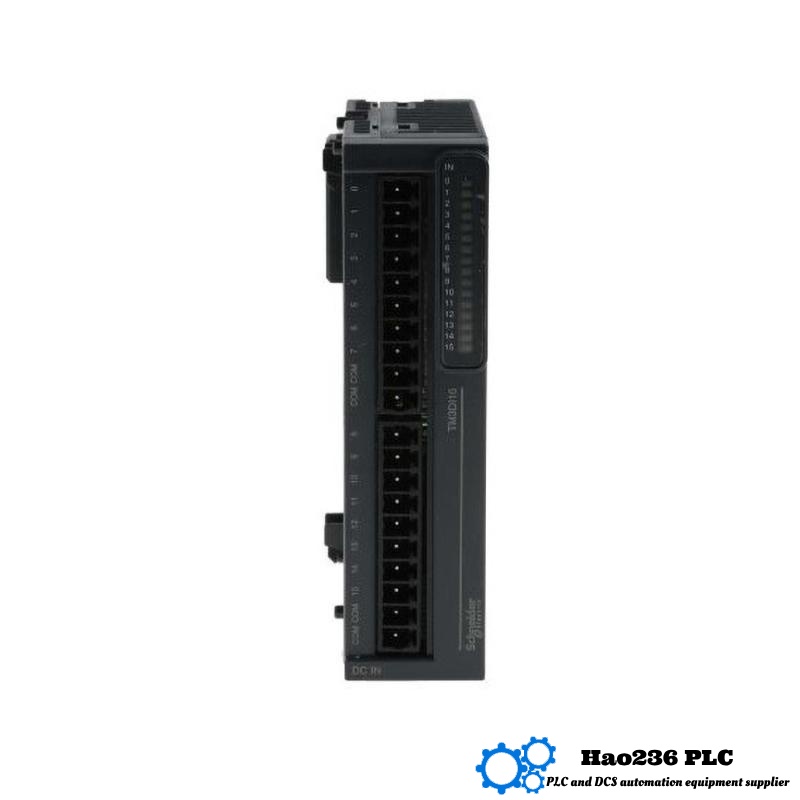

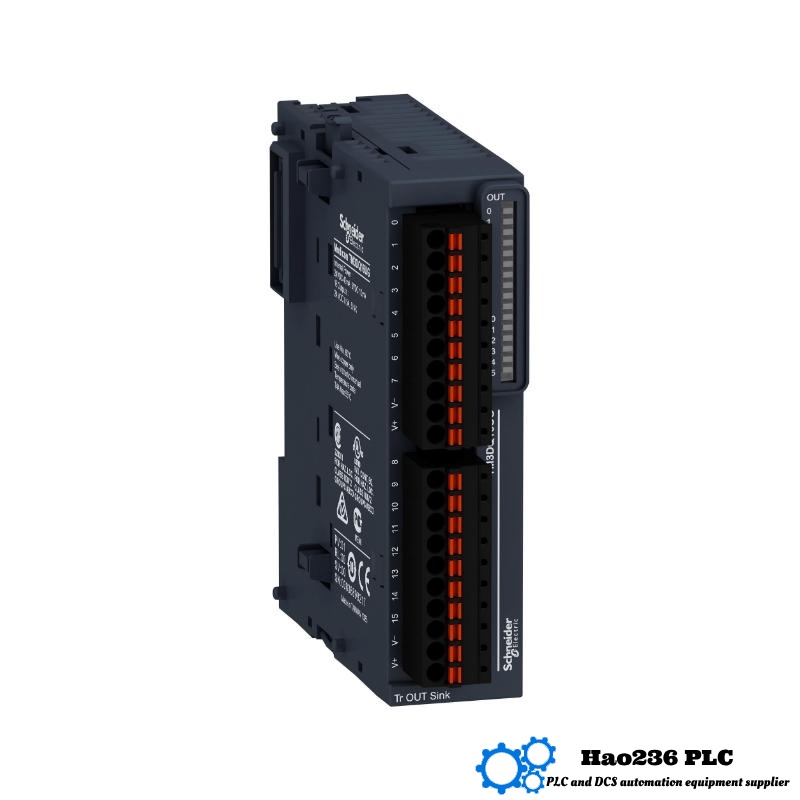

Q1: What is the main function of the TM3DQ16UG expansion module?
A1: The TM3DQ16UG is a 16-channel digital input expansion module for Schneider Electric’s Modicon PLCs, used to increase the I/O capacity for industrial automation systems.

Q2: How many digital inputs does the TM3DQ16UG module support?
A2: The module supports 16 digital inputs.

Q3: What is the input voltage range for the TM3DQ16UG module?
A3: The TM3DQ16UG module operates with 24V DC inputs.

Q4: What is the installation method for the TM3DQ16UG?
A4: The module is installed easily on DIN rails, making it simple to integrate into existing setups.

Q5: What is the response time for the digital inputs?
A5: The response time for the digital inputs is approximately 10ms.

Q6: Can the TM3DQ16UG module be used in outdoor environments?
A6: The module is designed for indoor use, but it can handle a wide range of environmental conditions with an operating temperature range of -25°C to +70°C.

Q7: Does the TM3DQ16UG support high-speed digital signals?
A7: Yes, the module supports high-speed digital input signals, ideal for fast-paced automation systems.

Q8: How can I integrate the TM3DQ16UG with other Schneider Electric products?
A8: The TM3DQ16UG integrates seamlessly with Modicon PLCs and can be configured using Schneider Electric’s engineering tools like EcoStruxure™ Control Expert.

Q9: What is the weight of the TM3DQ16UG expansion module?
A9: The weight of the TM3DQ16UG module is approximately 0.76 kg.

Q10: Can I use the TM3DQ16UG in hazardous environments?
A10: The module is designed for standard industrial environments. For hazardous locations, additional certification may be required.
