FAQ (Frequently Asked Questions)

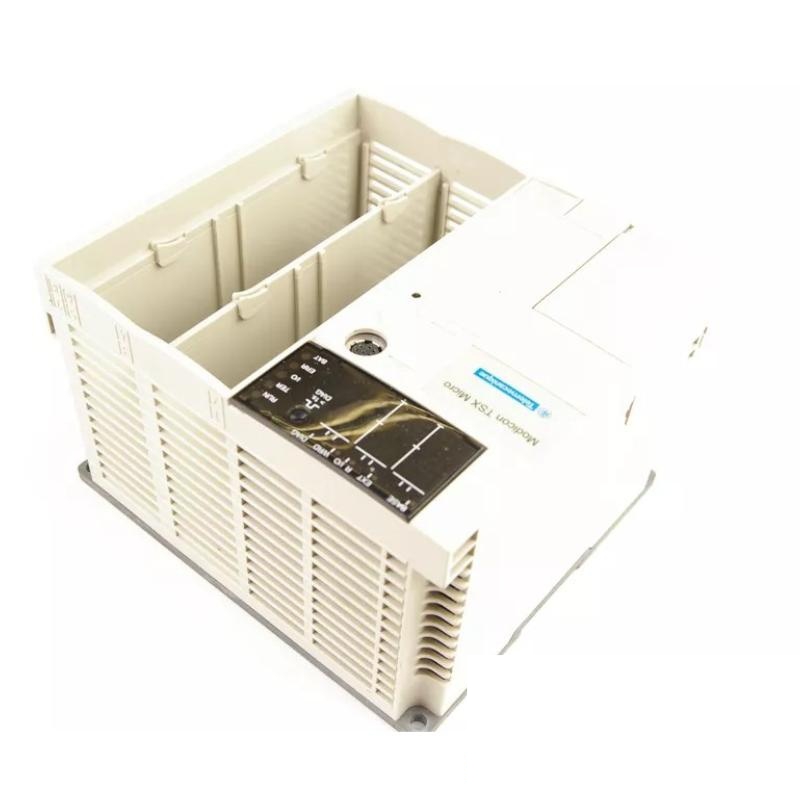

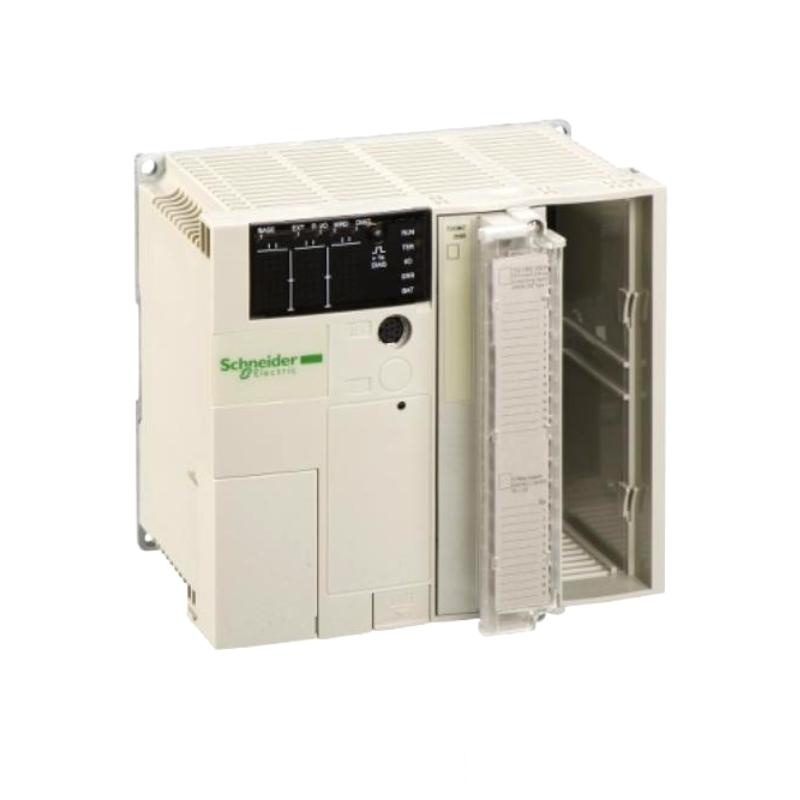

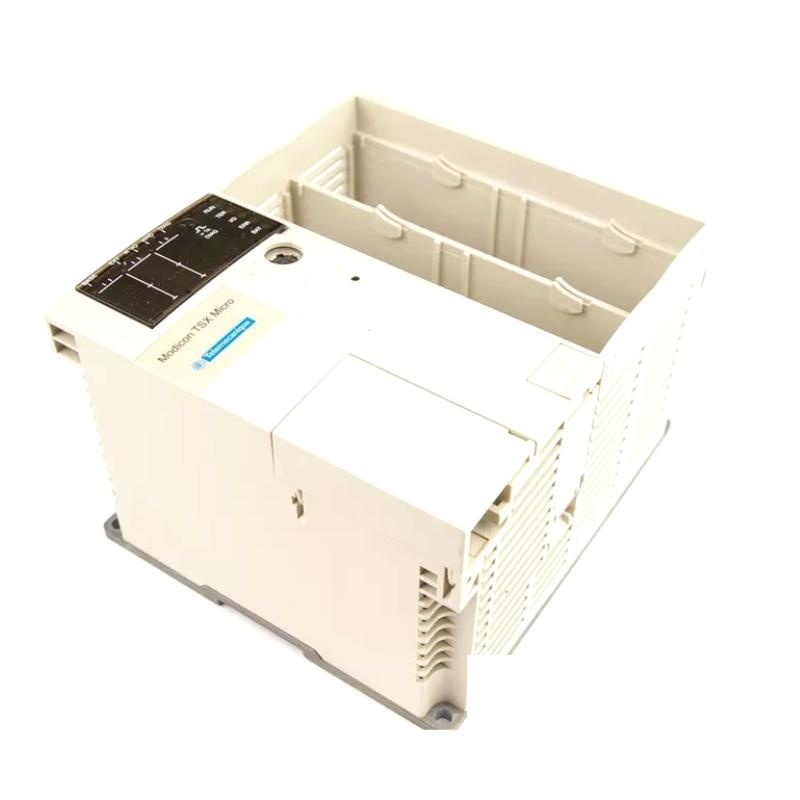

Q1: What is the primary function of the TSX3705001 PLC?
A1: The TSX3705001 is designed for controlling and automating industrial processes. It manages input and output signals from sensors, switches, and other devices, ensuring smooth operations in manufacturing and control systems.

Q2: How many I/O points does the TSX3705001 support?
A2: The TSX3705001 supports up to 256 digital inputs and 256 digital outputs, which can be expanded with additional I/O modules.

Q3: Can the TSX3705001 handle analog inputs and outputs?
A3: No, the TSX3705001 is designed specifically for digital I/O. For analog inputs and outputs, Schneider Electric offers other models in the Modicon series.

Q4: What programming languages can be used with the TSX3705001?
A4: The PLC supports programming in Ladder Logic, Structured Text, and Function Block Diagram, which are all standard for Schneider Electric controllers.

Q5: Is the TSX3705001 compatible with Schneider Electric’s software?
A5: Yes, it is compatible with Schneider Electric’s SoMachine and Unity Pro software for programming and configuration.

Q6: How is the TSX3705001 mounted?
A6: The TSX3705001 can be mounted on a DIN rail, allowing for easy installation in industrial control cabinets.

Q7: What is the maximum program memory of the TSX3705001?
A7: The TSX3705001 has 64 KB of program memory, which is sufficient for medium-sized control applications.

Q8: Does the TSX3705001 have Ethernet connectivity?
A8: Ethernet support is available through optional expansion modules, allowing the PLC to connect to networks for remote control and monitoring.

Q9: What is the operating temperature range of the TSX3705001?
A9: The TSX3705001 operates within a temperature range of -10°C to 55°C, suitable for most industrial environments.

Q10: What is the weight of the TSX3705001 PLC?
A10: The TSX3705001 weighs 1.4 kg, making it compact and easy to handle during installation.
