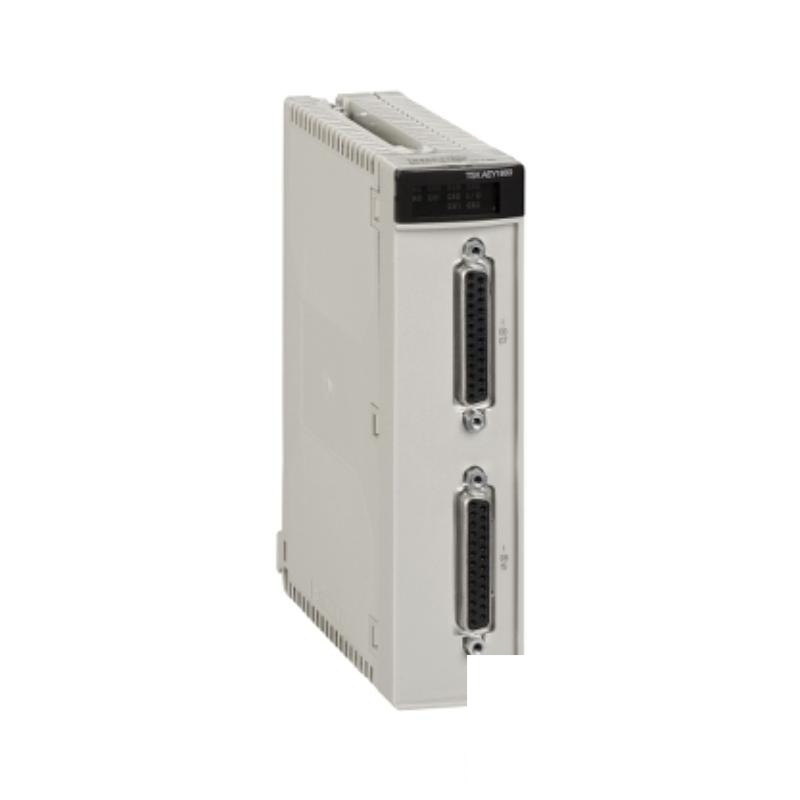

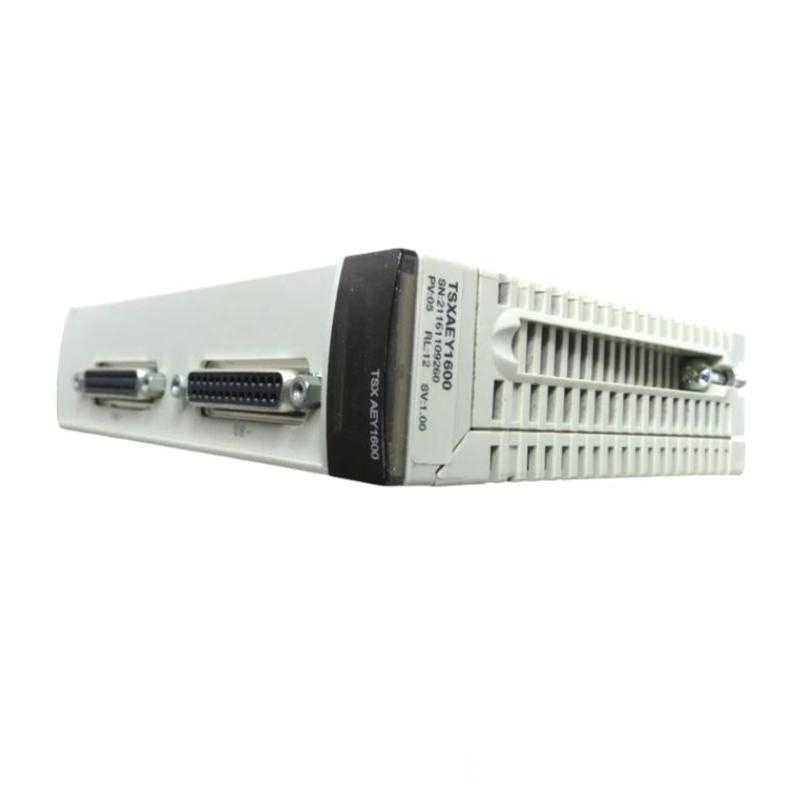

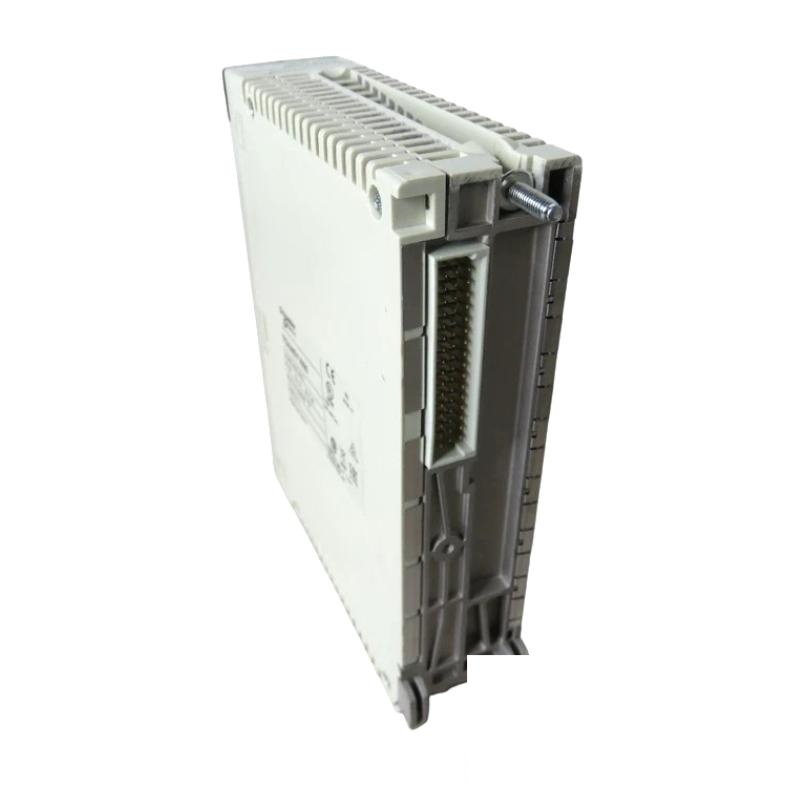

FAQ for Schneider TSXAEY1600 Analog Input Module

Q1: What types of analog inputs does the TSXAEY1600 accept?
A1: It accepts both voltage inputs ranging from 0-10V and ±10V, as well as current inputs of 0-20 mA and ±20 mA.

Q2: How many input channels does the module provide?
A2: The module has 16 differential analog input channels.

Q3: What is the resolution of the analog signals processed by this module?
A3: The TSXAEY1600 processes signals with 12-bit resolution for accurate measurements.

Q4: What are the physical dimensions and weight of the module?
A4: The dimensions are 55 × 180 × 260 mm, and it weighs approximately 0.34 kg.

Q5: What is the required power supply for the module?
A5: It operates on a 24 V DC power supply.

Q6: Which communication protocols does the module support?
A6: It supports Modbus/RTU communication protocol for data exchange with PLCs.

Q7: Is the TSXAEY1600 compatible with PLC brands other than Schneider’s Modicon Premium?
A7: This module is specifically designed to work with Modicon Premium series PLCs from Schneider Electric.

Q8: What operating temperature range is supported by the TSXAEY1600?
A8: It functions reliably within the temperature range of -10°C to +60°C.

Q9: How is the module mounted in control panels or cabinets?
A9: The TSXAEY1600 is designed for easy installation on DIN rails.

Q10: What is the input impedance for the analog signals?
A10: The input impedance is 10 kΩ, ensuring minimal signal interference.
