❓ Frequently Asked Questions (FAQ)

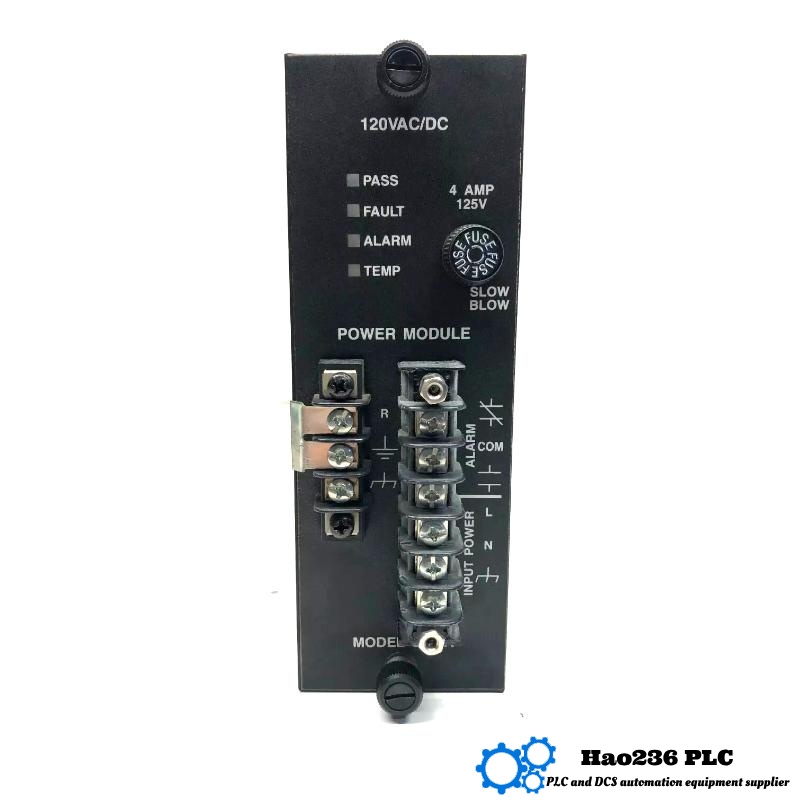

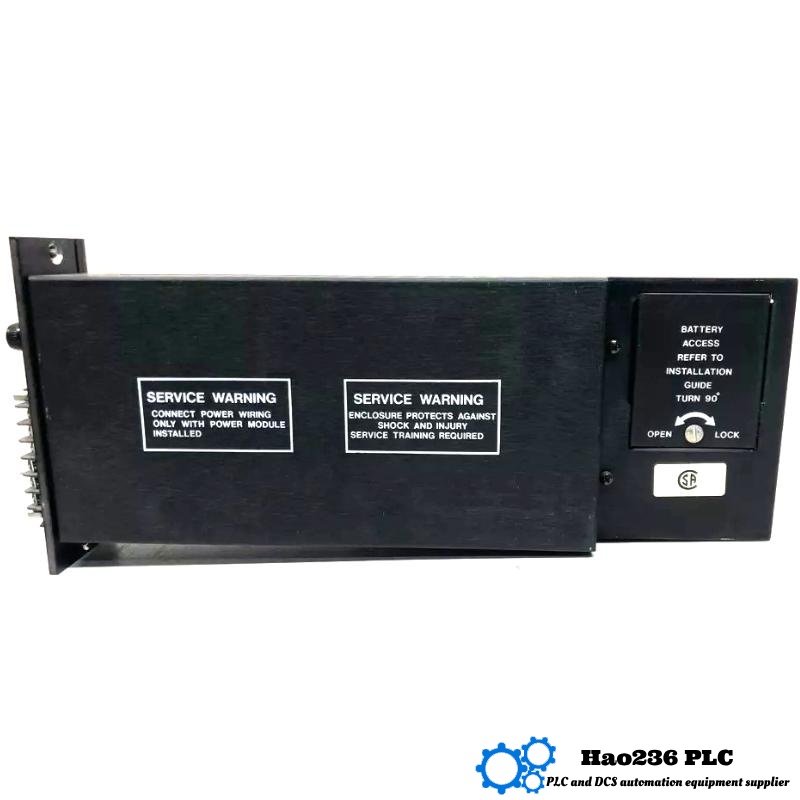

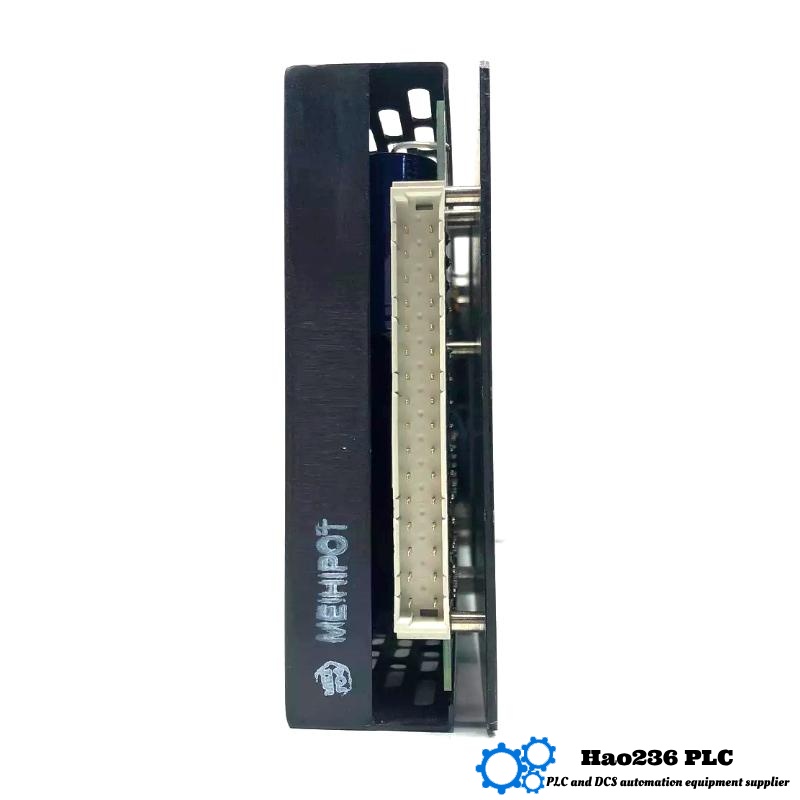

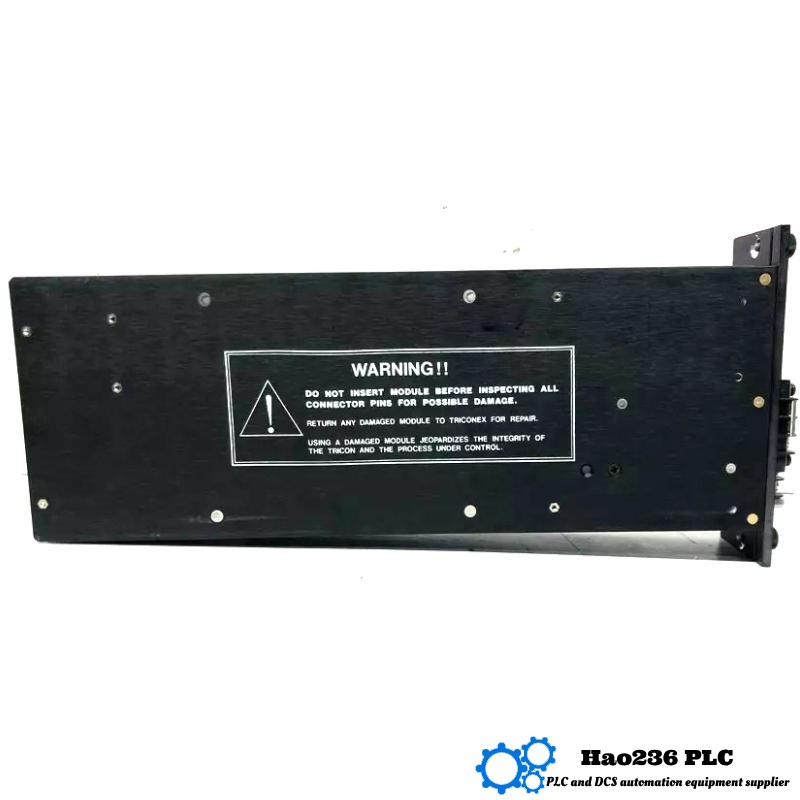

Q1: What is the primary function of the 8305A module?
A1: It supplies regulated 24 V DC power to safety system components, ensuring continuous operation in TMR systems.

Q2: Is the 8305A hot-swappable?
A2: Yes, it can be replaced without powering down the system, minimizing operational disruptions.

Q3: What redundancy type does it support?
A3: The 8305A supports N+1 and true triple modular redundancy configurations.

Q4: Can it handle AC and DC inputs?
A4: Yes, it accepts a wide range: 85–264 V AC or 120–350 V DC.

Q5: What kind of output does it provide?
A5: It provides a stable, regulated 24 V DC output at up to 20 A.

Q6: Is it certified for hazardous environments?
A6: Yes, including SIL 3, ATEX Zone 2, and FM Class I Div 2 certifications.

Q7: How large is the module?
A7: Its approximate dimensions are 132 mm × 60 mm × 200 mm.

Q8: What is the module’s weight?
A8: The 8305A weighs approximately 2.2 kg.

Q9: How efficient is the module under load?
A9: It operates at about 92% efficiency at full rated load.

Q10: What’s the expected lifetime of the module?
A10: With an MTBF of over 500,000 hours, it is designed for long-term reliability.
