Frequently Asked Questions (FAQ)

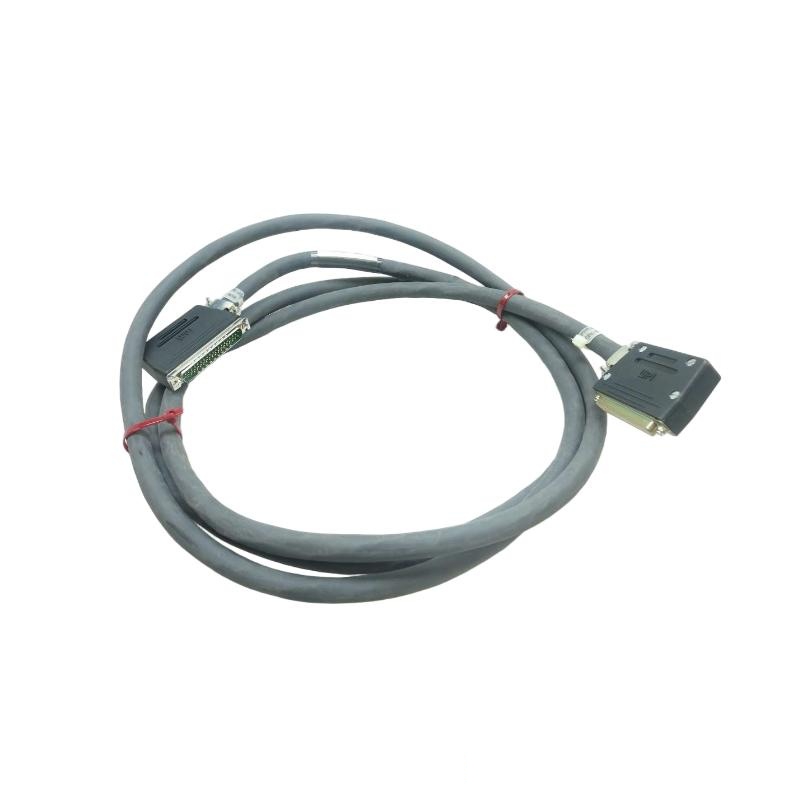

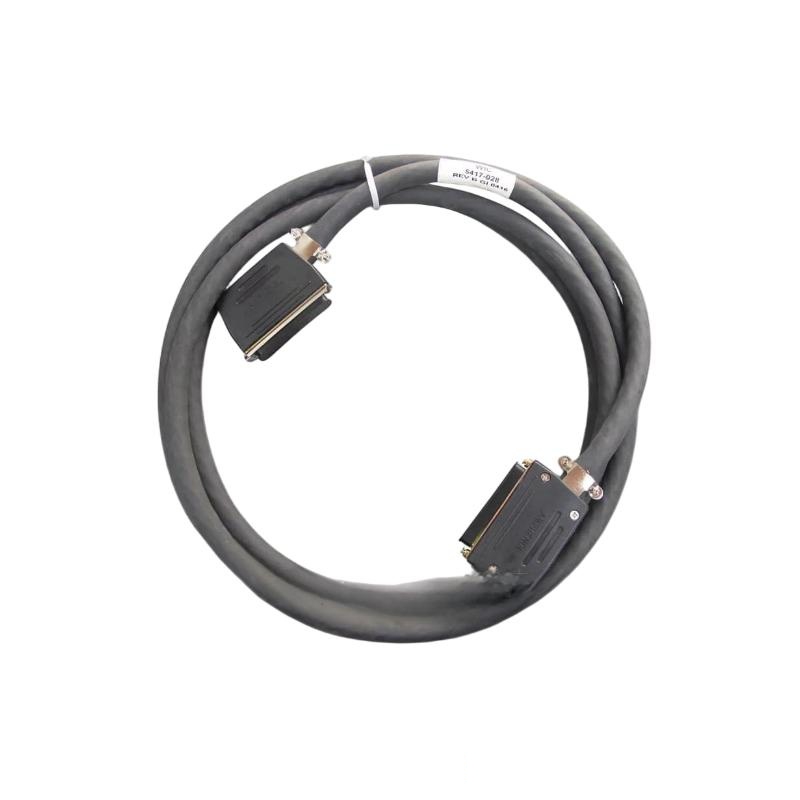

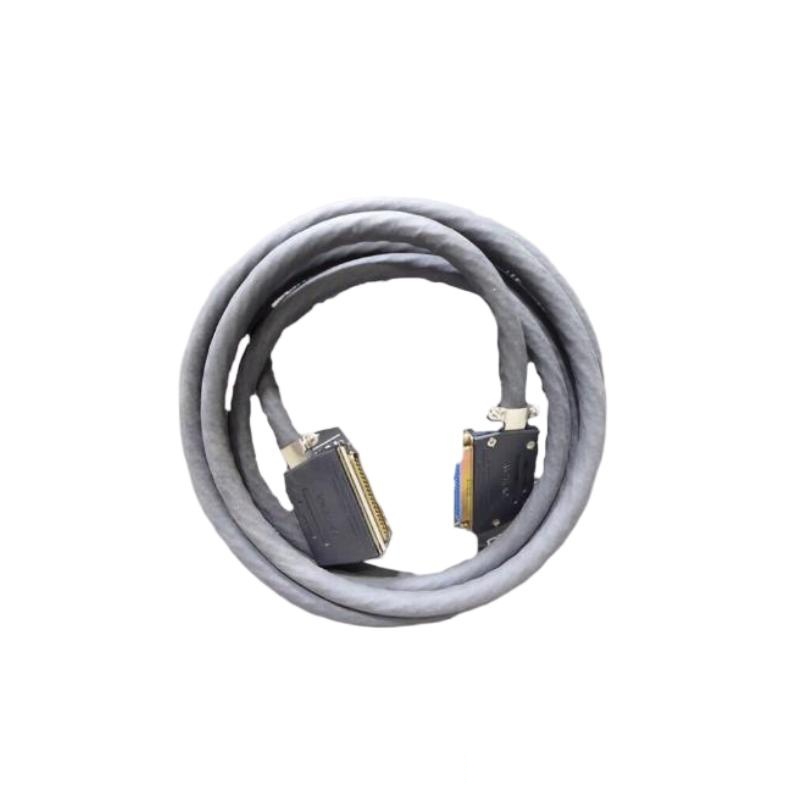

Q1: What is the primary role of the 5417-028 cable?
A1: It provides a factory-terminated, shielded interconnect between Woodward governor/control modules and field sensors or actuators, ensuring reliable transmission of control and feedback signals.

Q2: Why is the cable length specified as 10 ft?
A2: A 10 ft length offers sufficient reach for most engine-generator installations while avoiding excessive slack, facilitating neat routing in control cabinets.

Q3: What is the weight of this cable assembly?
A3: The 5417-028 weighs approximately 1.27 kg, accounting for its thicker shielding and heavier conductor bundle compared to shorter or lighter variants.

Q4: Which connectors are used on the 5417-028?
A4: The cable is terminated with a 9-pin D-sub male connector on one end (for the governor module) and a 9-pin D-sub female connector on the other end (for field devices).

Q5: Can the 5417-028 withstand high temperatures?
A5: Yes, the neoprene-based jacket and XLPE insulation allow operation between –40 °C and +85 °C without degradation of electrical properties.

Q6: How does the cable resist electrical noise?
A6: A tinned-copper braided shield combined with XLPE insulation provides over 85% coverage, reducing electromagnetic interference (EMI) and preserving signal integrity.

Q7: Is the cable suitable for marine or offshore use?
A7: Its neoprene jacket resists oils, humidity, and temperature fluctuations typical of marine and offshore environments, making it an ideal choice for propulsion and generator applications.

Q8: Can this cable connect to non-Woodward equipment?
A8: While designed for Woodward modules, the standard 9-pin D-sub pin-out allows compatibility with third-party controllers following the same wiring conventions.

Q9: Which certifications does the 5417-028 meet?
A9: It is UL AWM Style 2464 listed, CE marked, and RoHS compliant, ensuring compliance with safety and environmental regulations in global markets.

Q10: What is the recommended maintenance for this cable?
A10: Inspect the jacket for cuts or abrasions, verify connector seating and pins for corrosion, and avoid bends tighter than a 10 mm radius to extend service life.
