FAQ (10 Q&A)

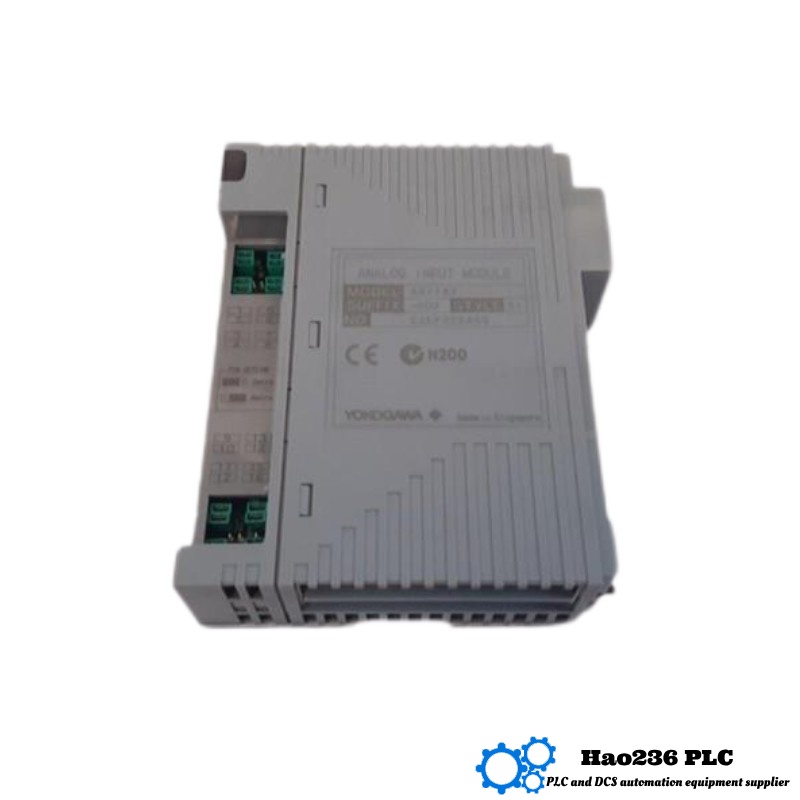

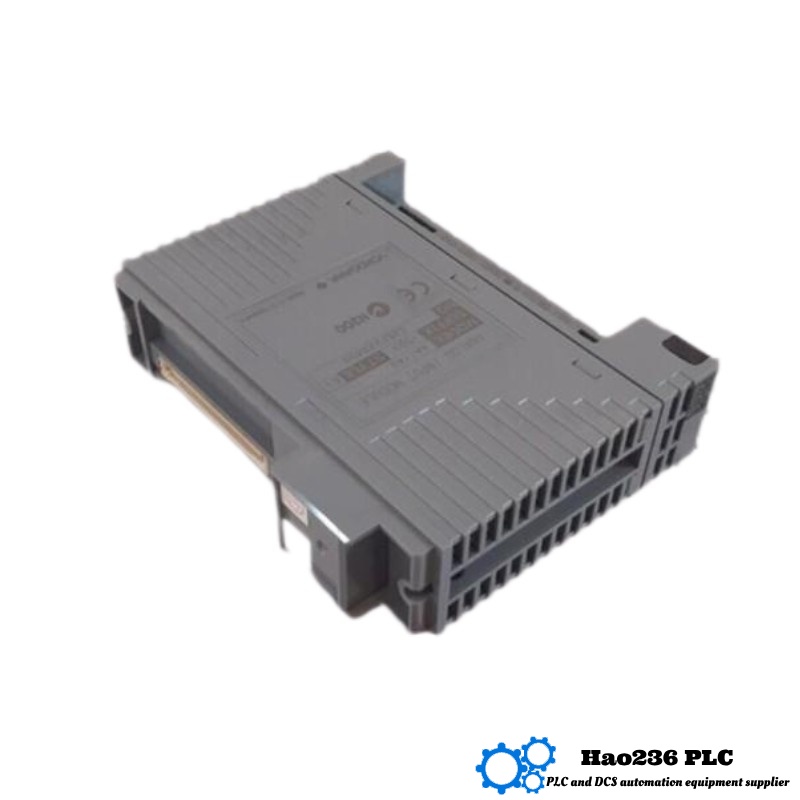

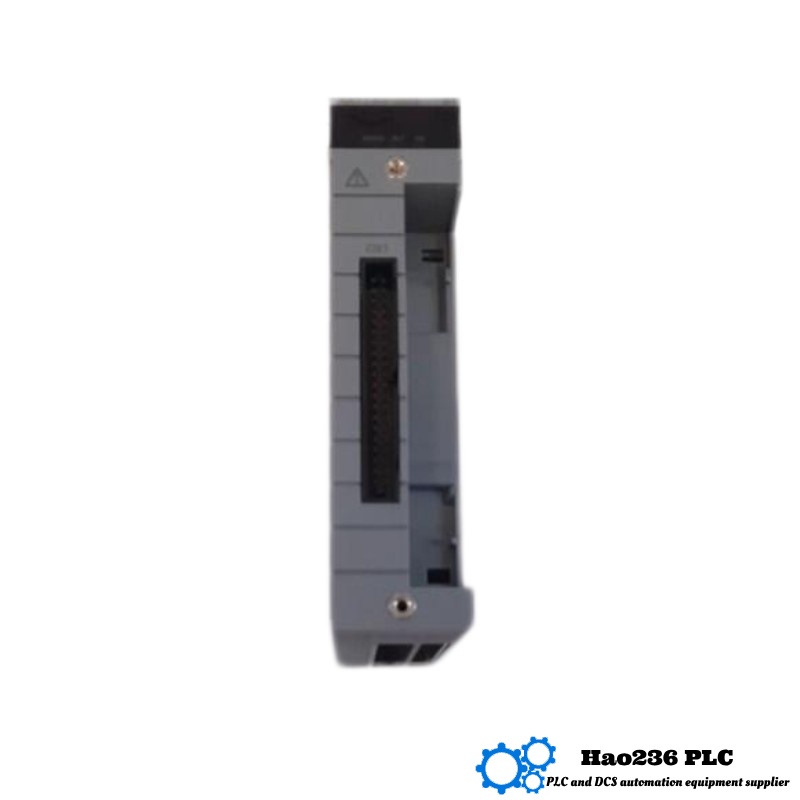

Q1: What type of signals can the AAI143‑S53 accept?
A1: It handles 16 isolated analog inputs, primarily 4–20 mA, and some variants may support voltage ranges as well.

Q2: Is signal isolation provided?
A2: Yes—each channel is isolated, withstanding up to 1500 V AC between input and system.

Q3: How fast does it update data?
A3: The module refreshes inputs every ~10 ms.

Q4: Can it power transmitters?
A4: Yes, it supplies transmitter power between 19.0 V and 25.5 V depending on load.

Q5: Does it support HART communication?
A5: Yes, HART is supported on specific variants with the “H” identifier.

Q6: What are its dimensions and weight?
A6: It is compact—around 107.5 × 32.8 × 130 mm—and weighs approximately 0.3 kg.

Q7: What temperature ranges can it handle?
A7: Operating range typically spans –20 °C to +70 °C, as per the ISA G3 spec.

Q8: How accurate are its measurements?
A8: Measurement accuracy is ±16 µA with minimized drift of ±16 µA per 10 °C of ambient change.

Q9: Is it built for tough environments?
A9: Yes—it complies with ISA G3 standards and offers enhanced ruggedness.

Q10: Can I attach terminal blocks easily?
A10: Absolutely—models like A4S00 support pressure clamp or dual clamp terminal attachments for simplified wiring.
