Top 10 FAQs

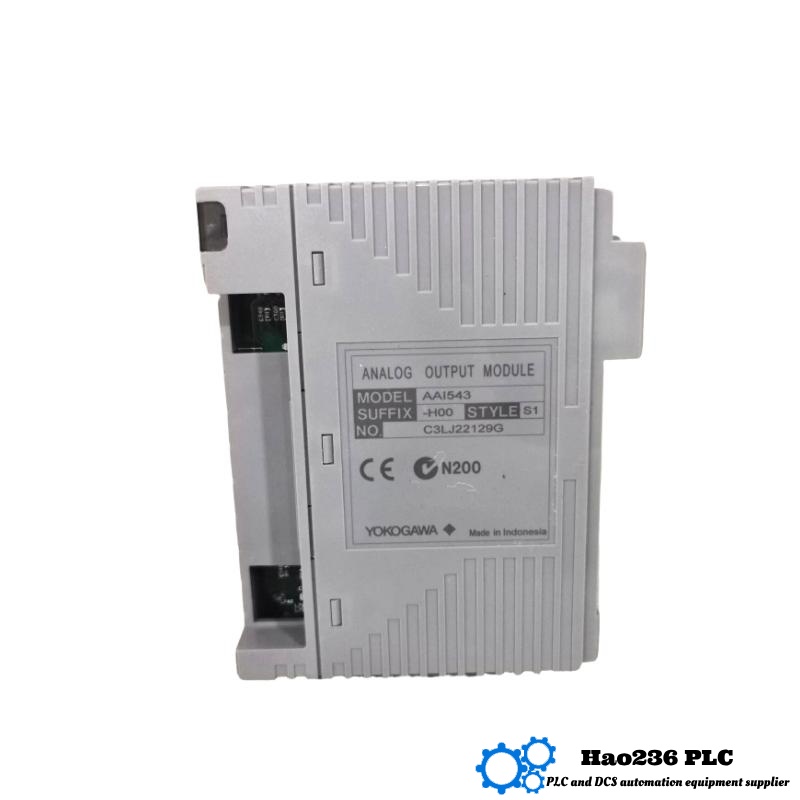

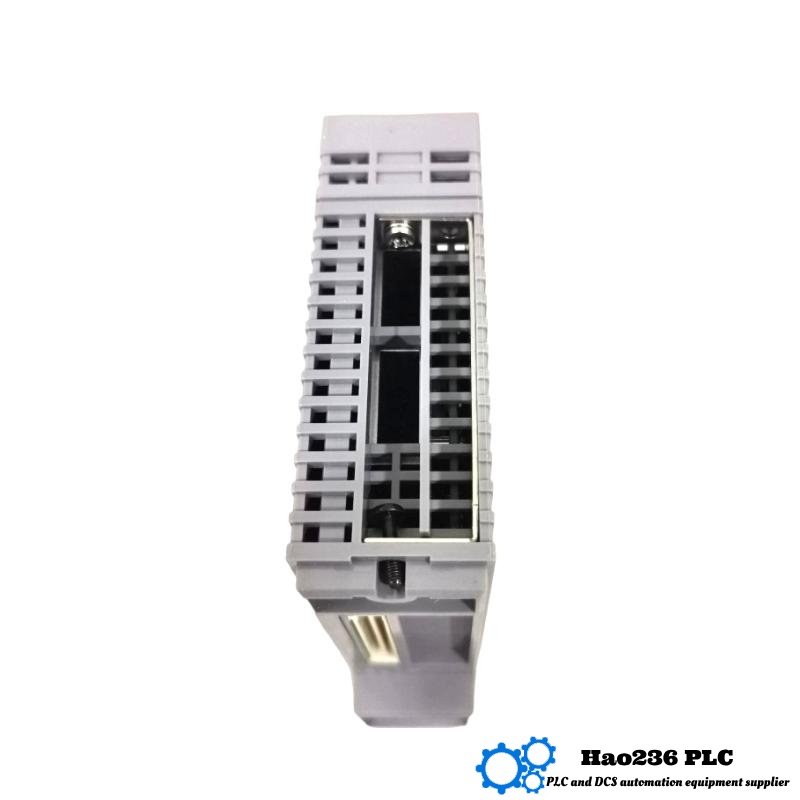

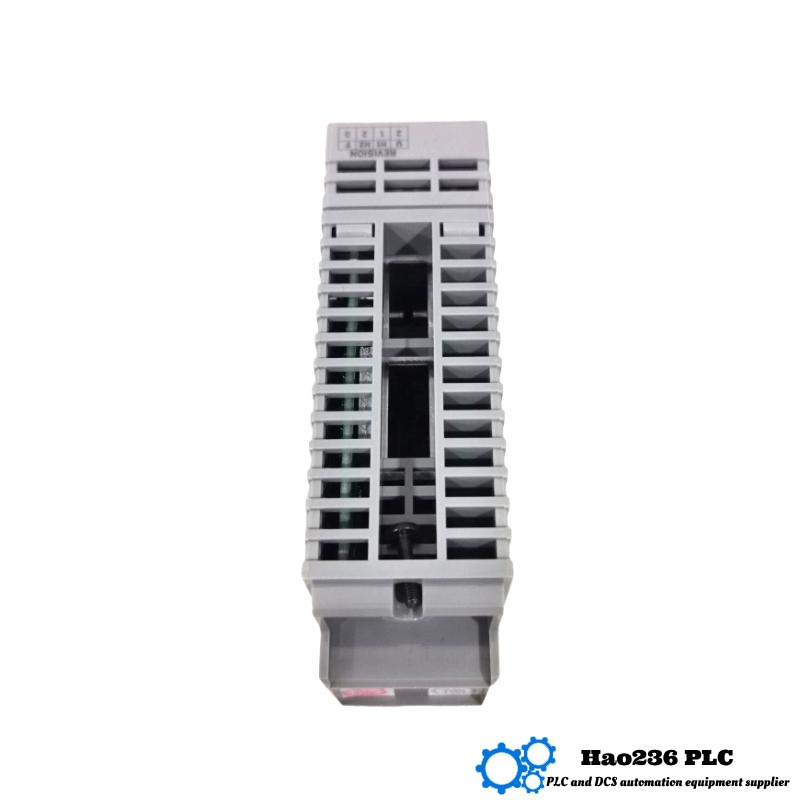

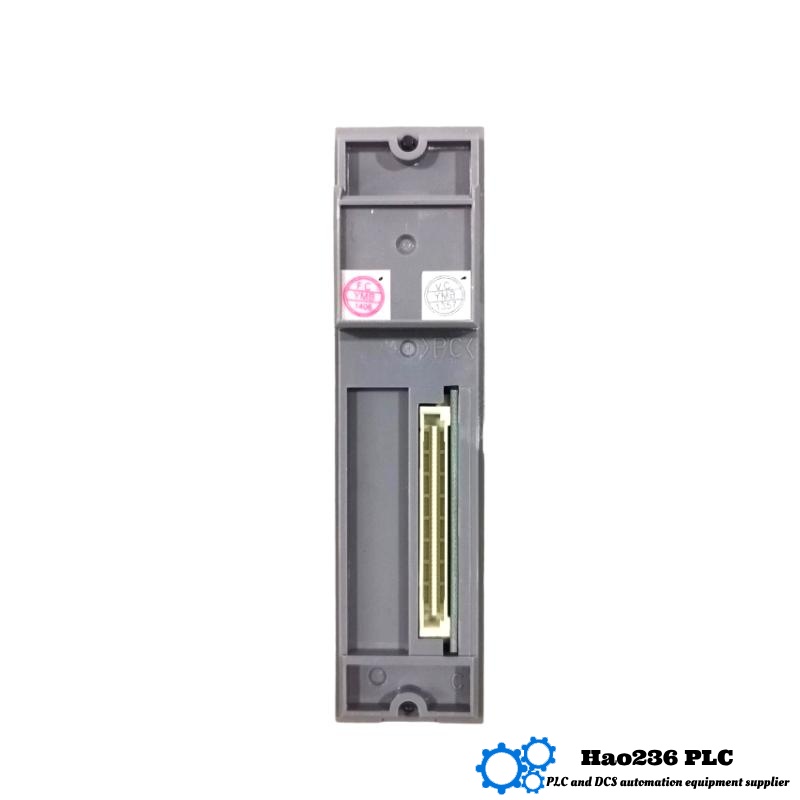

Q1: What is the main purpose of the AAI543-H00/A4S10 module?
A1: It is used to convert digital signals from a control system into analog 4–20 mA output signals to operate field devices.

Q2: How many outputs does it support?
A2: The module supports 16 isolated analog output channels.

Q3: What is the benefit of the A4S10 terminal block?
A3: It provides surge protection, enhancing the system’s resilience to voltage spikes.

Q4: Can this module be used in hazardous environments?
A4: Yes, it is designed to operate in industrial settings with strict safety and isolation requirements.

Q5: Is this module compatible with HART communication?
A5: Yes, it supports HART, allowing for enhanced communication with smart field devices.

Q6: How accurate is the output current?
A6: The module has a high accuracy of ±48 µA.

Q7: Does it require external power?
A7: Yes, it consumes 230 mA at 5V DC and 540 mA at 24V DC.

Q8: Can it be installed in tight spaces?
A8: Yes, its compact dimensions (27 x 130 x 110 mm) make it suitable for tight installations.

Q9: How is the module connected?
A9: Via a pressure clamp terminal block, which is secure and easy to install.

Q10: What industries typically use this module?
A10: Power, chemical, oil & gas, water treatment, and manufacturing industries use it extensively.
