Product Overview – Yokogawa AAI543-H60 S1 The AAI543-H60 S1 is a high-performance analog output module designed for advanced distributed control systems (DCS). It features 16 isolated 4–20 mA analog out……

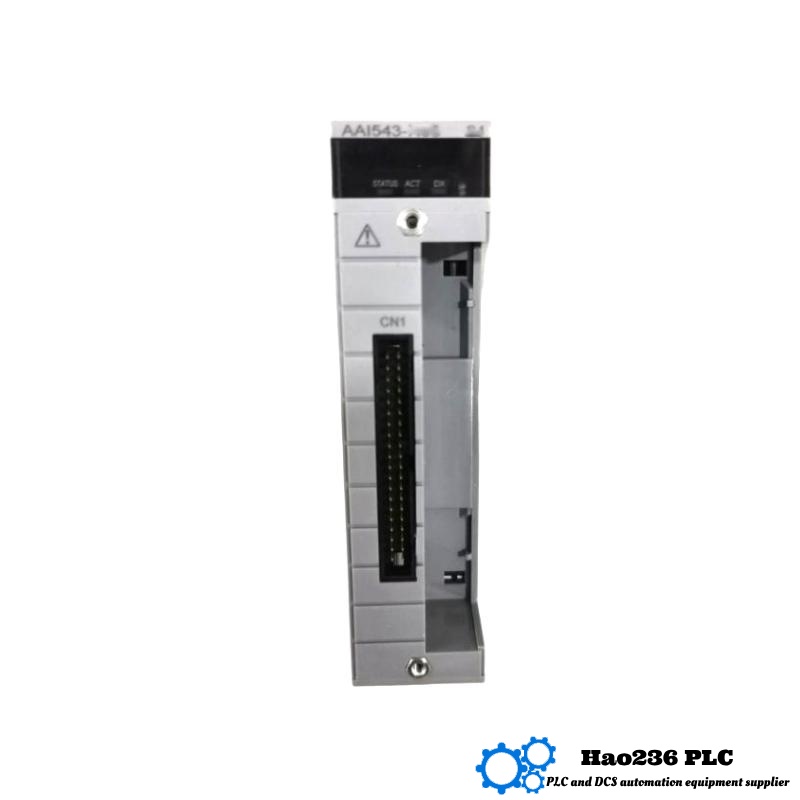

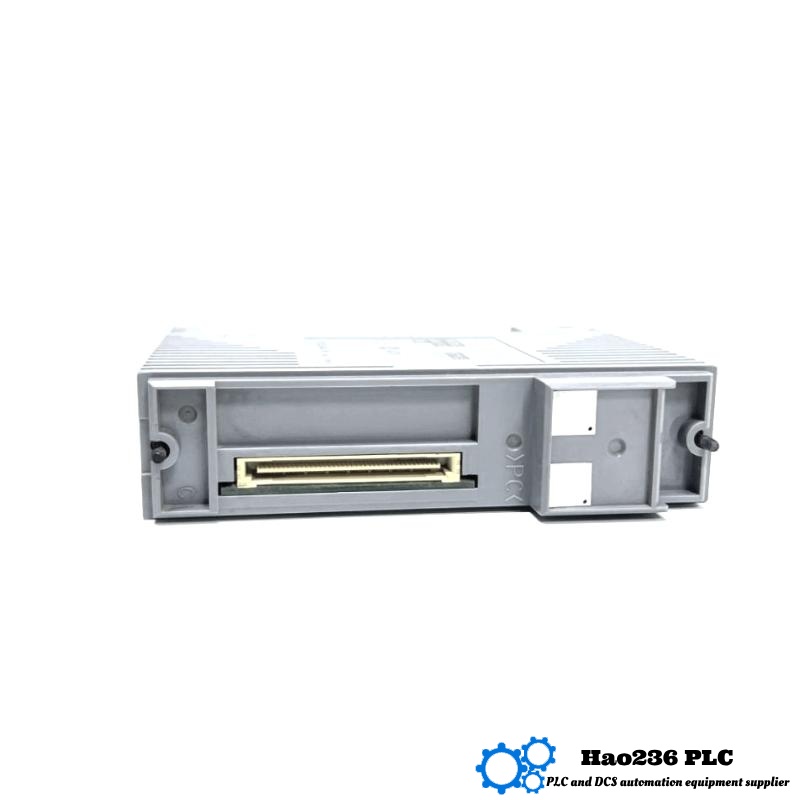

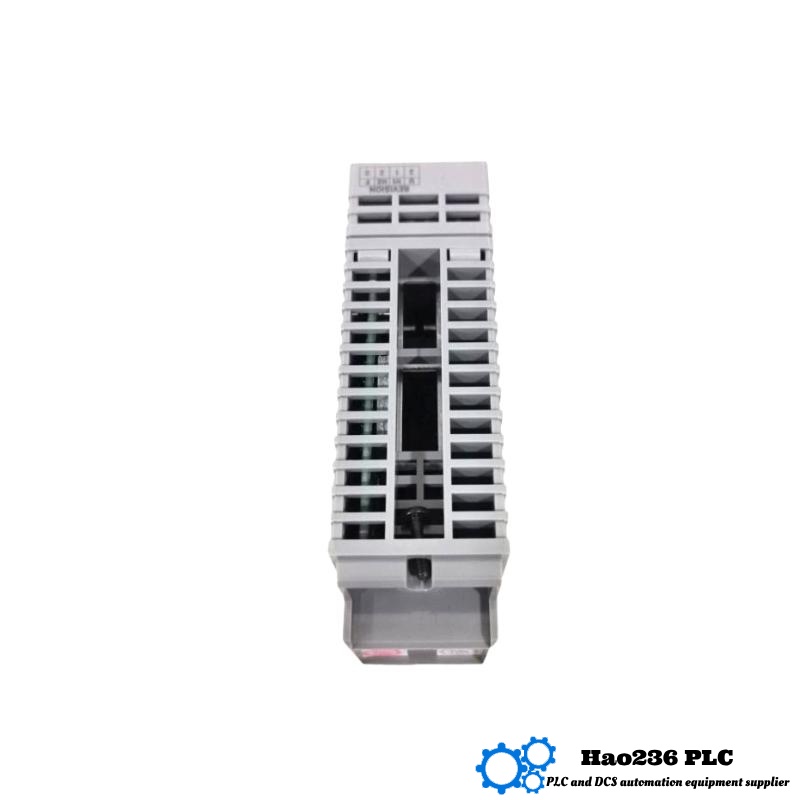

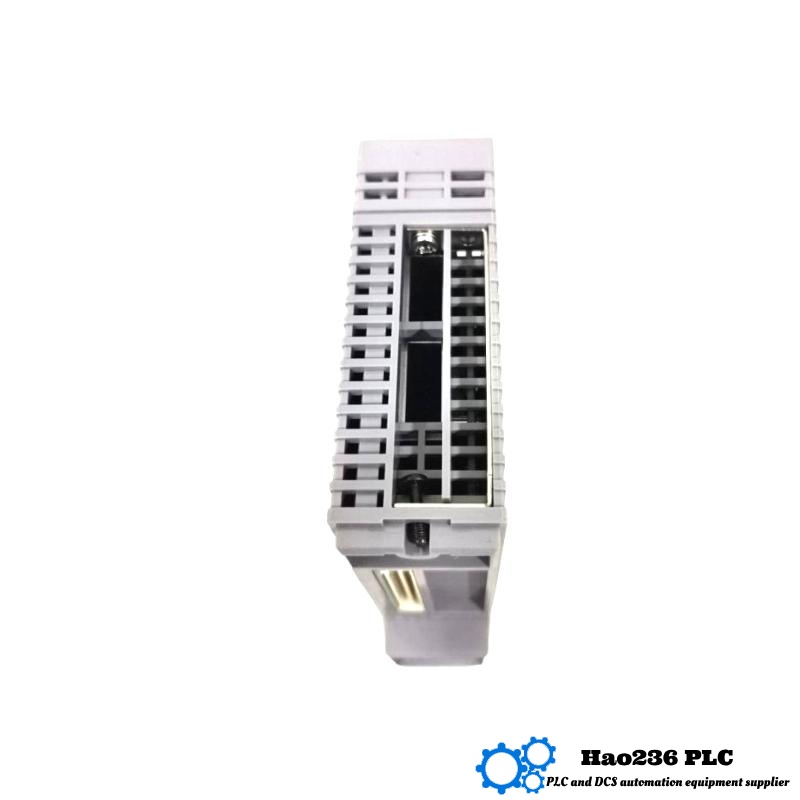

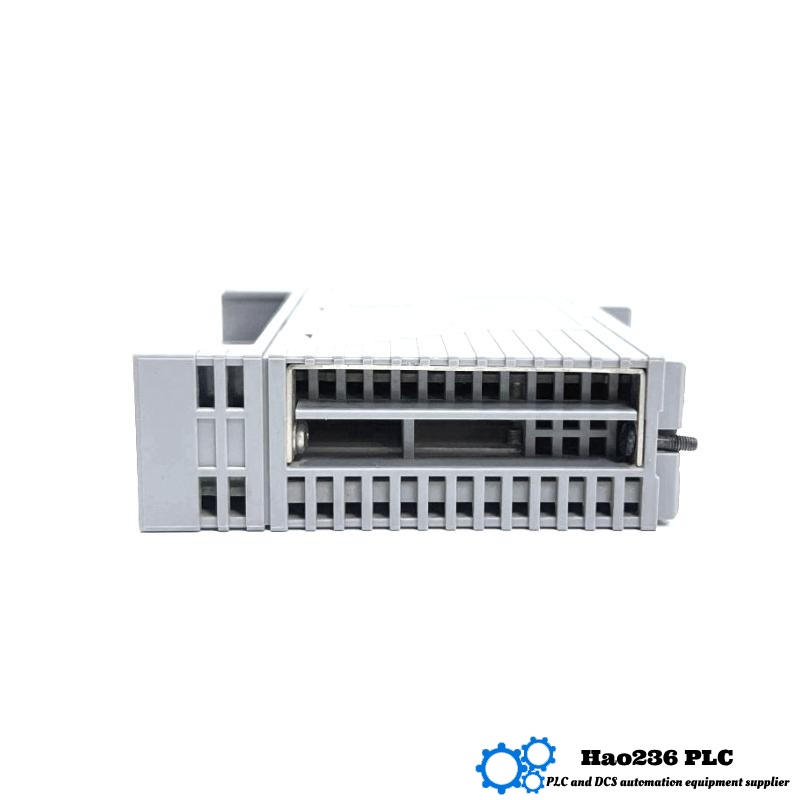

Yokogawa AAI543-H60 S1 Analog Output Module

Manufacturer: Yokogawa
Product Number: AAI543-H60 S1
Product Type: Analog Output Module
Origin: Japan
Dimensions: 12.7 cm × 2.5 cm × 12.7 cm
Weight: 0.4kg
Shipping Port:Xiamen, China
Condition:New & In Stock
Payment Methods:T/T, PayPal, Western Union
Warranty:1 Year
Lead Time:1-3 Working Days
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:24-Hour Service
Certificate:COO
Views:178

Request Quote

Our advantage

Yokogawa AAI543-H60 S1 Analog Output Module

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.

FAQs

Q1: What is the purpose of the AAI543-H60 S1 module?
A1: It provides 16 isolated 4–20 mA analog output channels with HART communication for precise signal transmission in industrial applications.

Q2: What is the operating temperature range of the module?
A2: The module operates within a temperature range of –20 °C to +70 °C.

Q3: Does the module support HART communication?
A3: Yes, the module is equipped with HART communication capabilities.

Q4: What is the maximum current consumption of the module?
A4: The module consumes a maximum of 230 mA at 5 V DC and 540 mA at 24 V DC.

Q5: How many output channels does the module have?
A5: The module provides 16 isolated output channels.

Q6: What is the accuracy of the module?
A6: The module offers an accuracy of ±48 µA.

Q7: What is the weight of the module?
A7: The module weighs 0.4 kg.

Q8: What is the allowable load resistance for the module?
A8: The module supports a load resistance range of 0–750 Ω.

Q9: Can the module be used in redundant configurations?
A9: Yes, the module supports fast switch-over response in redundant configurations without explosion protection.

Q10: What are the external communication options for the module?
A10: The module supports pressure clamp terminals, MIL connector cables, and dedicated cables (KS1).
