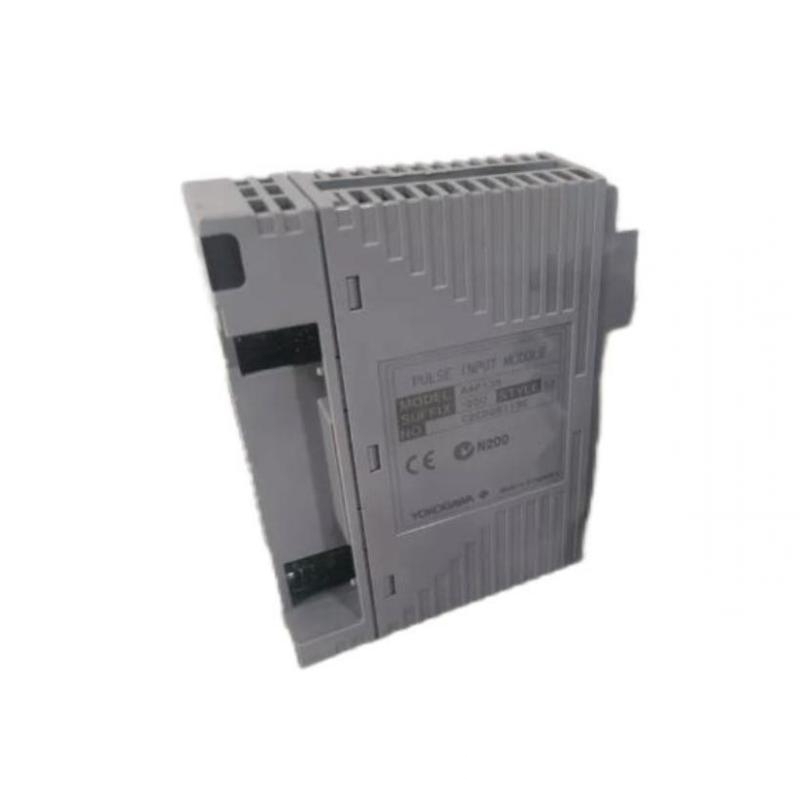

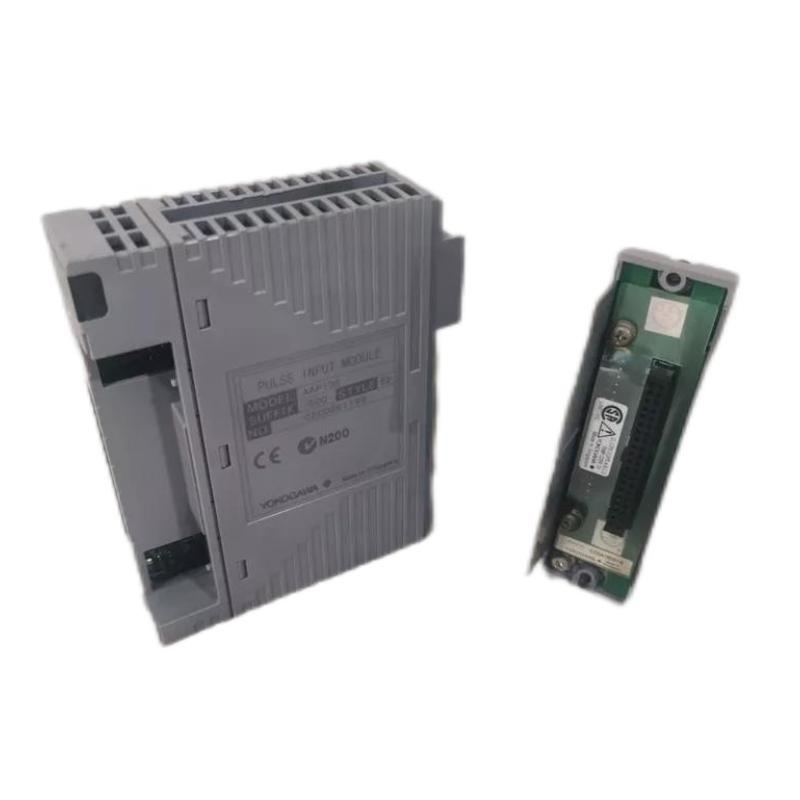

FAQ for Yokogawa AAP135-S00 S2

Q1: What type of input does the AAP135-S00 S2 accept?
A1: The AAP135-S00 S2 accepts pulse input signals.

Q2: What is the maximum pulse frequency supported by the module?
A2: The module supports a maximum pulse frequency of 10 kHz.

Q3: What is the operating temperature range of the AAP135-S00 S2?
A3: The module operates within a temperature range of -10°C to +60°C.

Q4: What is the size of the AAP135-S00 S2?
A4: The module measures 107.5 × 32.8 × 130 mm.

Q5: What is the weight of the AAP135-S00 S2?
A5: The weight of the module is 0.3 kg.

Q6: Can the AAP135-S00 S2 handle both digital and pulse inputs?
A6: Yes, the AAP135-S00 S2 handles pulse inputs, which are converted to digital output.

Q7: What is the response time of the AAP135-S00 S2 module?
A7: The response time is ≤ 100 ms, ensuring quick signal processing.

Q8: What is the power supply requirement for the AAP135-S00 S2?
A8: The module requires a 24V DC power supply.

Q9: How does the AAP135-S00 S2 handle input isolation?
A9: The module offers 500 VDC isolation between the input and output for enhanced safety and performance.

Q10: In which industries is the AAP135-S00 S2 commonly used?
A10: It is commonly used in industries such as energy management, flow measurement, process control, and machine monitoring.
