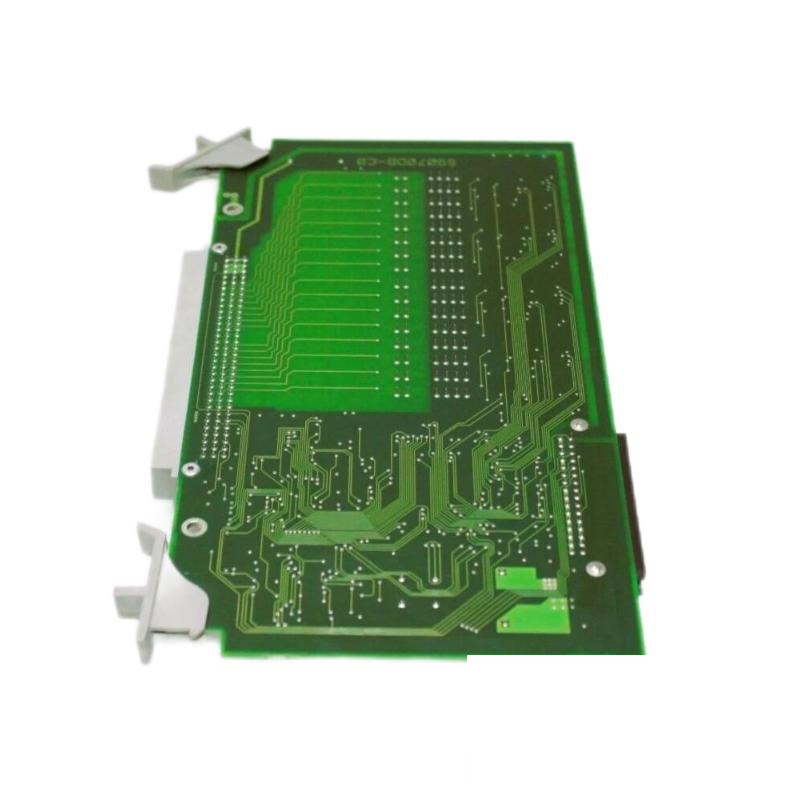

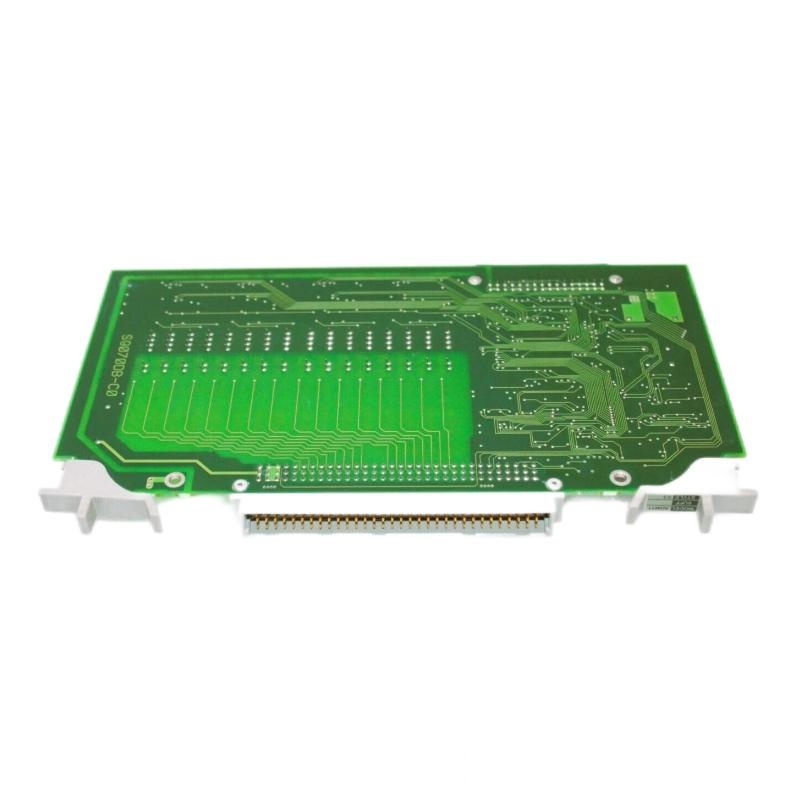

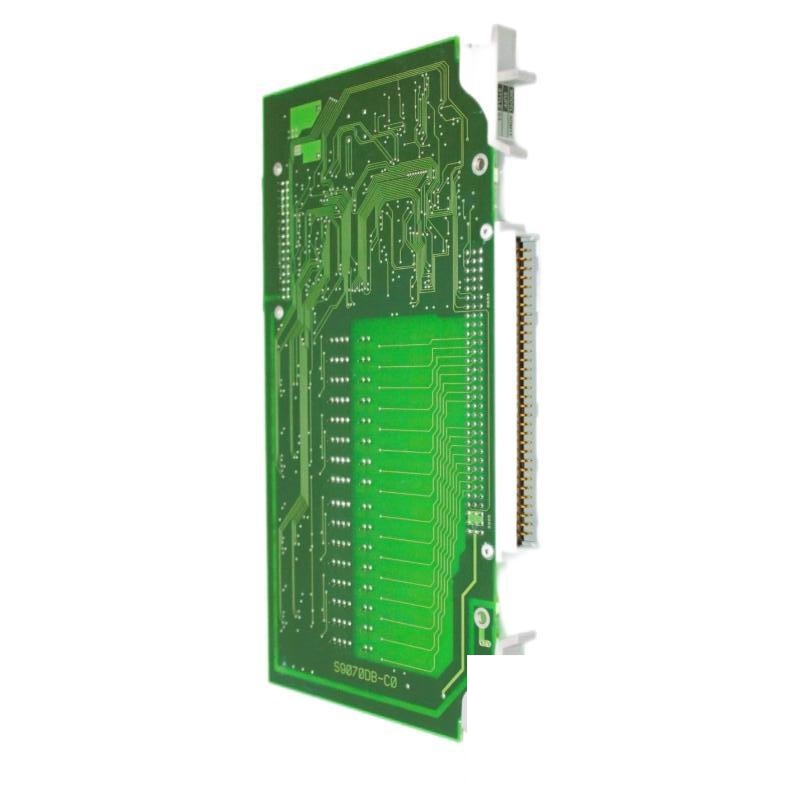

FAQ – Yokogawa ADM11-S3 Contact Input Module

Q1: What is the main function of the Yokogawa ADM11-S3 module?
A1: The ADM11-S3 is designed to monitor contact input signals from devices such as relays, switches, and limit sensors. It converts these signals into digital data for use in industrial automation systems.

Q2: What is the input type for the ADM11-S3 module?
A2: The ADM11-S3 module accepts dry contact signals, typically from devices that switch between on/off states.

Q3: What is the operating temperature range of the ADM11-S3 module?
A3: The module operates within a temperature range of –20°C to +60°C, making it suitable for a wide variety of industrial environments.

Q4: Can the ADM11-S3 be used for both analog and digital inputs?
A4: No, the ADM11-S3 is specifically designed for contact input signals, not for analog or digital inputs.

Q5: How is the ADM11-S3 module powered?
A5: The module is powered by a 24V DC supply, which is the standard for most industrial automation systems.

Q6: What is the power consumption of the ADM11-S3?
A6: The ADM11-S3 has a power consumption of 2 watts, making it energy-efficient for industrial use.

Q7: How is the ADM11-S3 module mounted?
A7: The module is DIN rail mountable, which allows for easy integration into existing control panels or systems.

Q8: What communication protocol does the ADM11-S3 support?
A8: The ADM11-S3 module supports Modbus RTU communication protocol, allowing it to interface with a wide range of automation systems.

Q9: What are the dimensions of the ADM11-S3?
A9: The dimensions of the ADM11-S3 module are 125 x 130 x 248 mm, making it compact and easy to integrate into control systems.

Q10: How reliable is the ADM11-S3 for long-term operation?
A10: The ADM11-S3 is built to provide reliable operation over long periods, even in demanding industrial environments, thanks to its durable design and high precision.
