Frequently Asked Questions (FAQ)

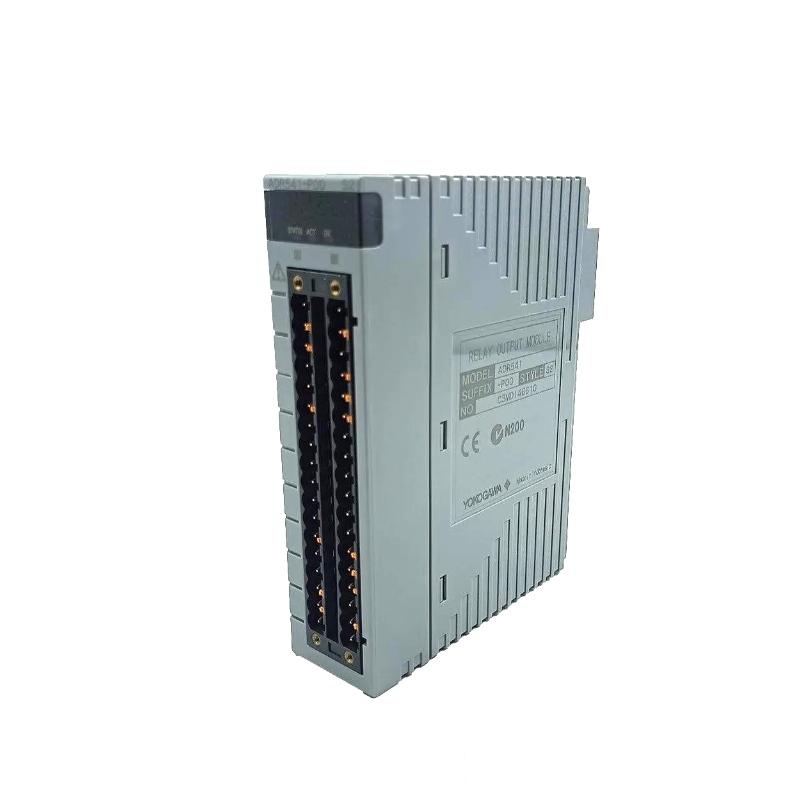

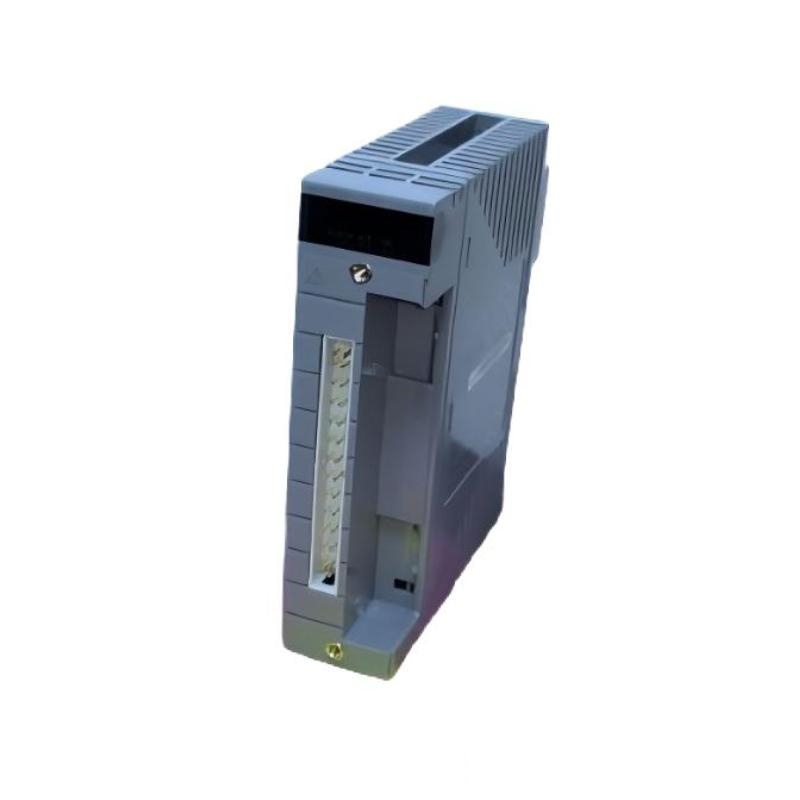

Q1: What are the dimensions of the ADR541-P00 module?
A1: The module measures 130 x 32.8 x 107.5 mm.

Q2: How much does it weigh?
A2: It weighs approximately 0.3 kg.

Q3: How many relay outputs does this module have?
A3: The ADR541-P00 has 4 relay contact outputs.

Q4: What is the maximum load rating of the relay outputs?
A4: The relay outputs can handle up to 5 A at 250 VAC or 30 VDC.

Q5: What type of mounting does it support?
A5: The module supports DIN rail and panel mounting.

Q6: Is there electrical isolation in the relay outputs?
A6: Yes, the relay outputs are fully electrically isolated.

Q7: What is the operating temperature range?
A7: It operates from 0 °C to 55 °C.

Q8: Is this module certified for safety standards?
A8: Yes, it has CE and UL certifications.

Q9: Can it be used for alarm and safety systems?
A9: Yes, it is commonly used for alarms and emergency shutdown circuits.

Q10: What is the typical response time for switching?
A10: The response time is approximately 20 milliseconds.
