Frequently Asked Questions (FAQs)

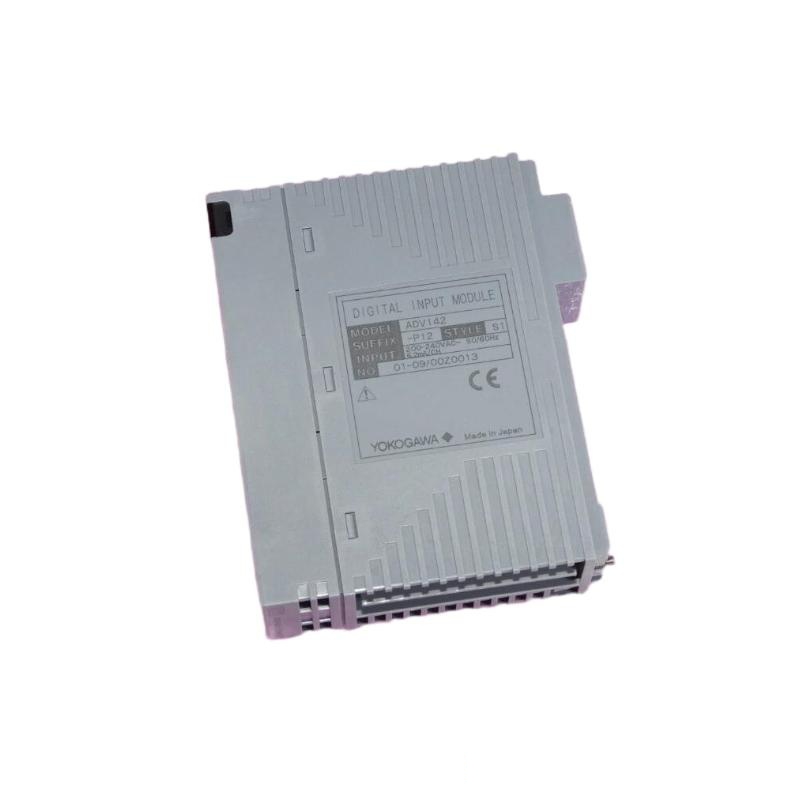

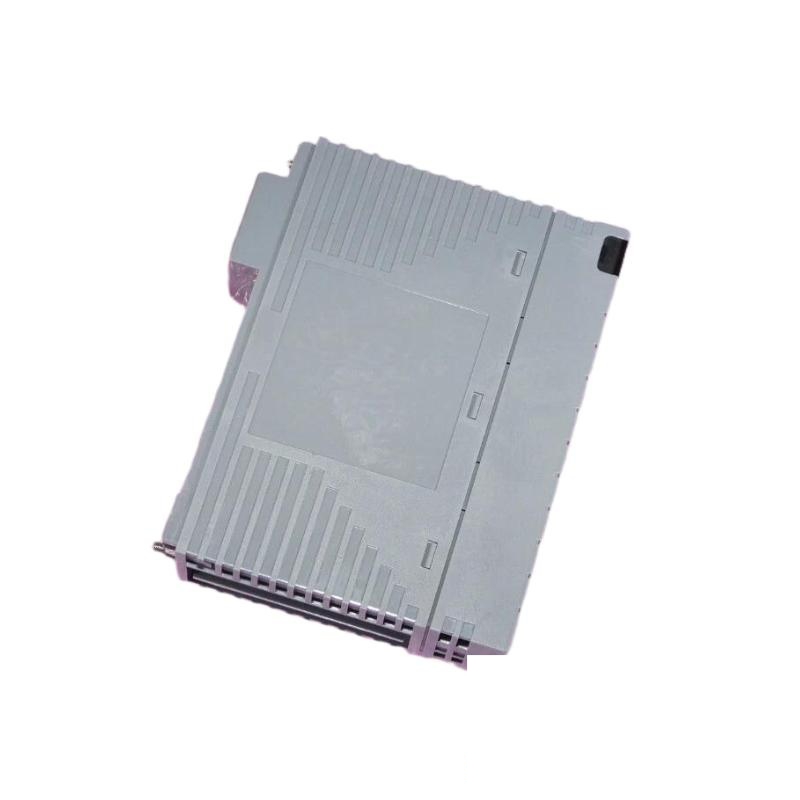

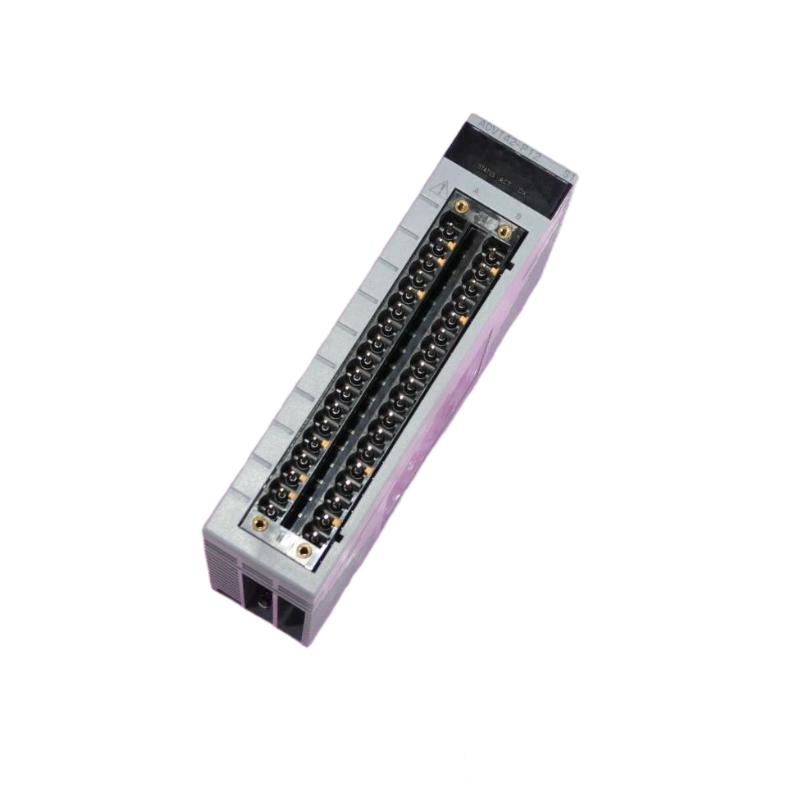

Q1: What is the main function of the Yokogawa ADV142-P12 module?
A1: The ADV142-P12 is a digital input module designed to process digital signals from field devices such as sensors, switches, and relays. It converts these signals into data that can be read and processed by a controller, making it ideal for process automation.

Q2: How many channels does the ADV142-P12 support?
A2: The ADV142-P12 provides 12 digital input channels, allowing you to monitor multiple devices simultaneously within a control system.

Q3: What is the input voltage range for the ADV142-P12?
A3: The module supports a wide input voltage range from 0 to 30 V DC, accommodating various types of digital devices and ensuring compatibility with most field applications.

Q4: What type of communication protocols does the ADV142-P12 use?
A4: The ADV142-P12 supports Modbus/TCP and Ethernet communication, which allows seamless integration into networked automation systems.

Q5: What is the operating temperature range for this module?
A5: The ADV142-P12 is designed to operate in temperatures ranging from -20°C to +60°C, making it suitable for use in a variety of industrial environments.

Q6: How is the ADV142-P12 mounted in the control system?
A6: The module is designed for DIN rail mounting, which simplifies the installation process and allows for easy integration into control panels.

Q7: What is the protection rating of the ADV142-P12?
A7: The module has an IP20 protection rating, which means it is protected against the ingress of solid objects larger than 12 mm but is not waterproof. It is intended for use in environments that are not exposed to excessive moisture or dust.

Q8: Can the ADV142-P12 be used in hazardous locations?
A8: While the ADV142-P12 is a robust module suitable for many industrial applications, it is not specifically rated for hazardous locations. For use in hazardous environments, it is essential to verify compatibility with relevant safety standards.

Q9: Does the ADV142-P12 have any indicators to show its status?
A9: Yes, the module comes with LED indicators that provide real-time feedback on the power and input status, which helps with monitoring and troubleshooting.

Q10: What is the power supply requirement for the ADV142-P12?
A10: The module operates on a 24 V DC power supply, which is a common requirement for most industrial automation modules, ensuring ease of integration into existing systems.
