AQ (10 Questions & Answers)

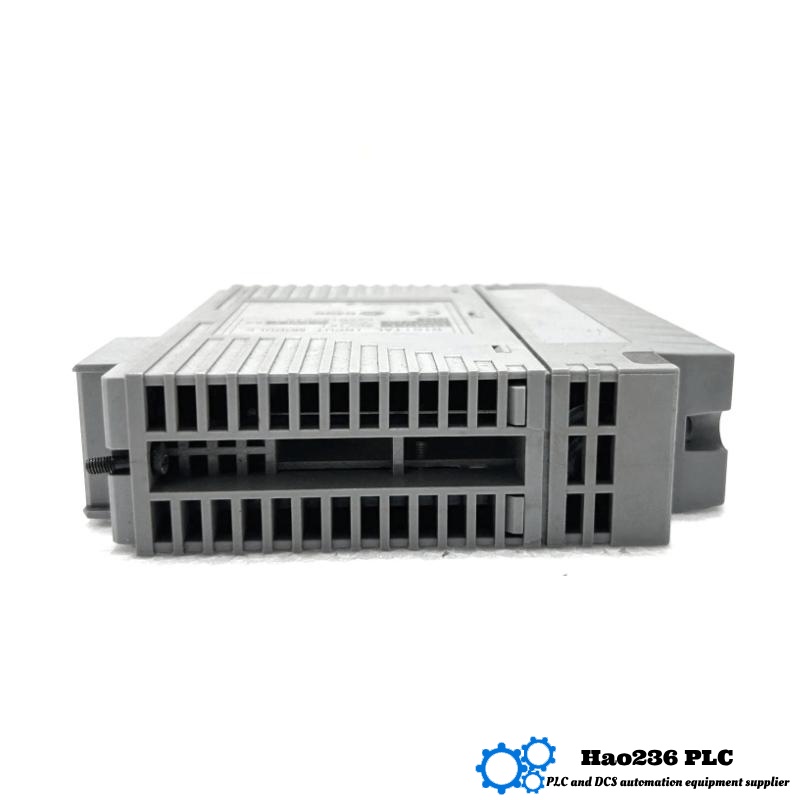

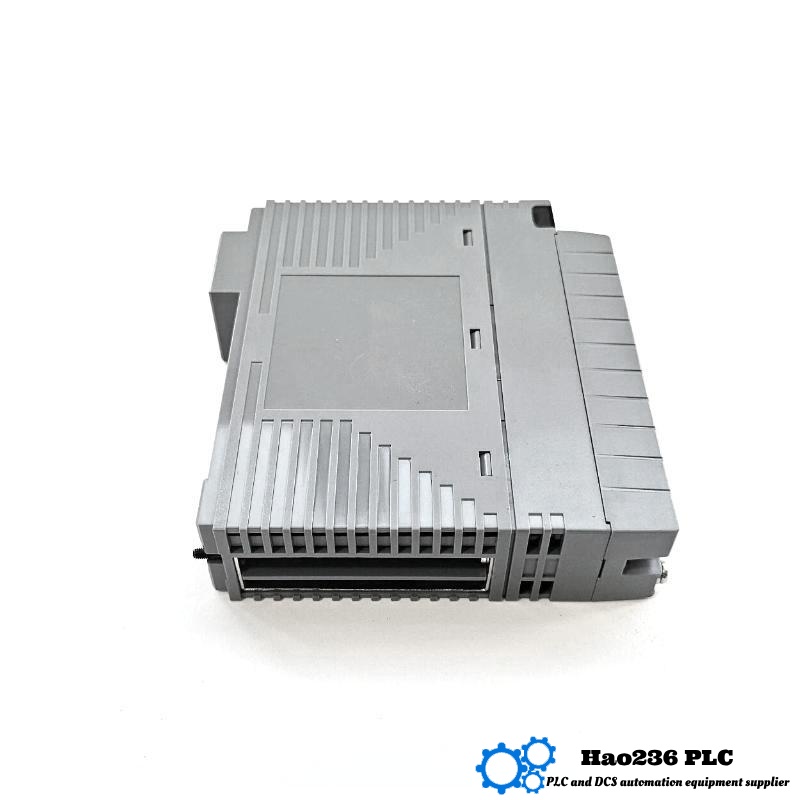

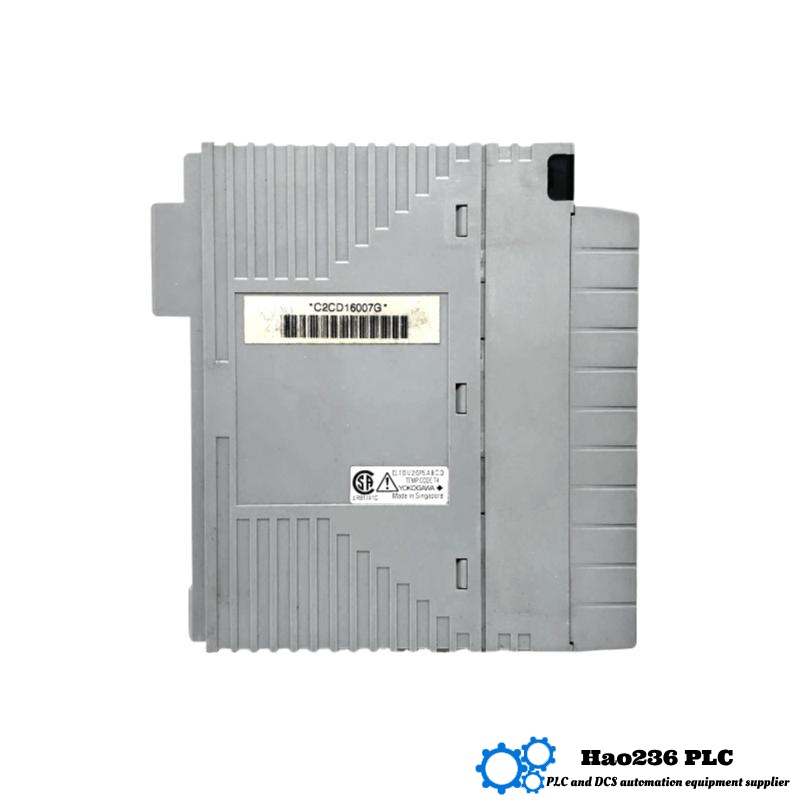

Q1: What is the ADV151‑E63 used for?
A1: It is used to collect digital (ON/OFF) signals from field devices in industrial automation systems.

Q2: How many channels does it have?
A2: 32 input channels.

Q3: What voltage range is considered “ON” for inputs?
A3: Between 18 V and 26.4 V DC are considered “ON”.

Q4: What happens at “OFF” input?
A4: If the input voltage drops to 5.0 V DC or less, it is considered “OFF”.

Q5: How fast does the module respond to input changes?
A5: The response time for status inputs is up to about 8 ms or less.

Q6: What is the maximum voltage the inputs can handle safely?
A6: Up to ~30.0 V DC is allowable without damage.

Q7: Does this module provide isolation?
A7: Yes, it provides electrical isolation between input circuits and the system, reducing interference and improving safety.

Q8: Is a status display available?
A8: Yes — the “6” in the “E63” code indicates the module includes a status display (channel status indication).

Q9: What are its environmental limits?
A9: Operates in a temperature range of approximately ‑20 °C to +70 °C for this variant.

Q10: How much does it weigh?
A10: Approximately 0.30 kg.
