FAQ (Frequently Asked Questions)

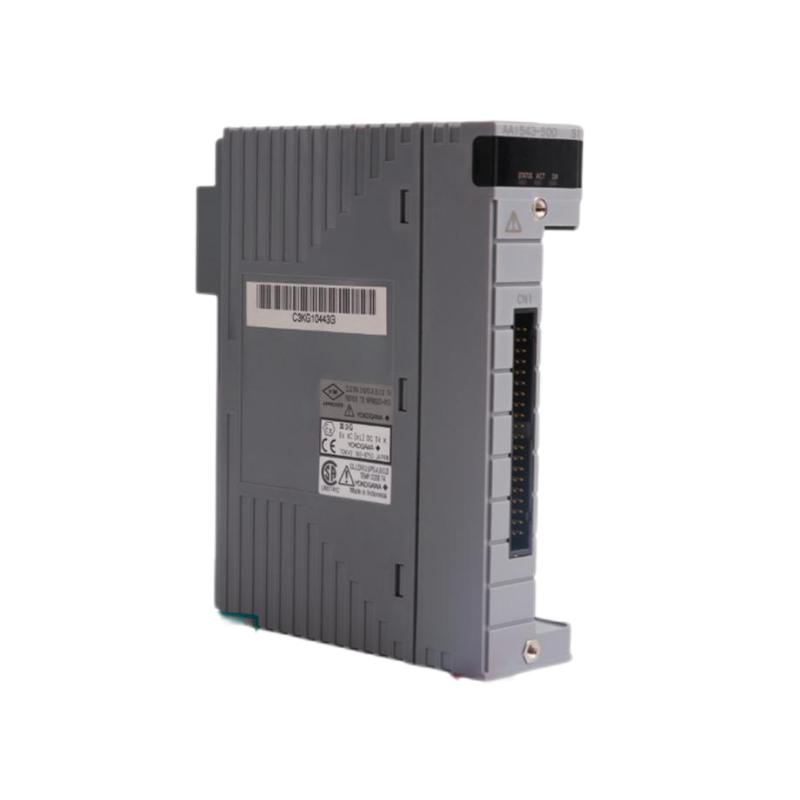

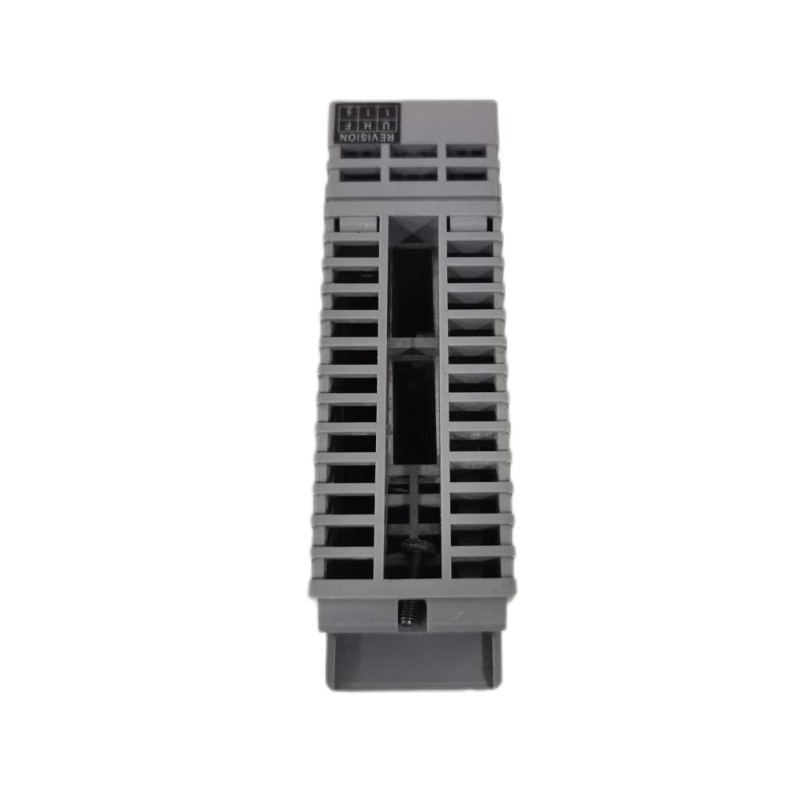

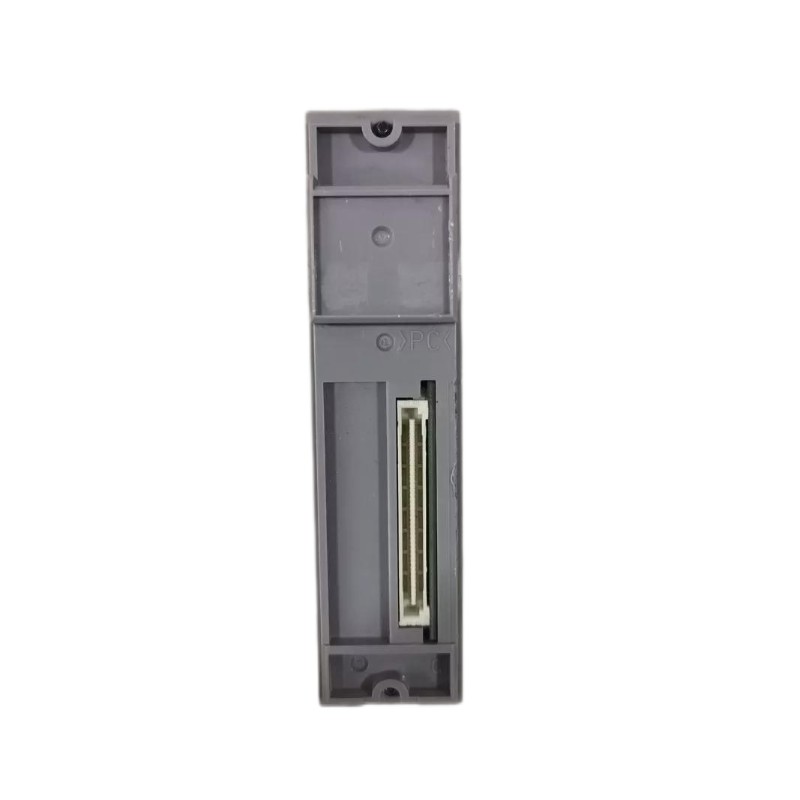

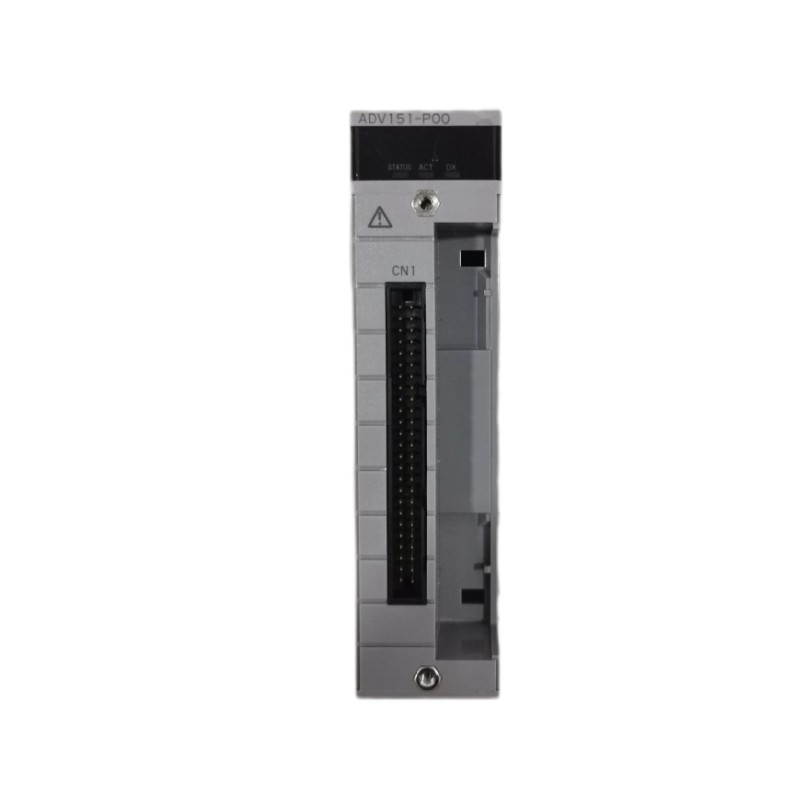

Q1: What is the main function of the ADV151-P00/D5A00?
A1: It functions as a 32-channel digital input module that converts 24 V DC ON/OFF field signals into logic signals for the control system.

Q2: What type of signals can it receive?
A2: It can receive 24 V DC discrete (digital) signals from switches, sensors, relays, and contact outputs.

Q3: What is the response speed of the module?
A3: The response time is 8 ms or less for standard status inputs, ensuring accurate signal recognition.

Q4: Does the module support redundant operation?
A4: Yes, it is designed to operate in redundant control architectures, supporting dual I/O paths for reliability.

Q5: What isolation protection does it provide?
A5: 2 kV AC isolation between signal and system and 500 V AC isolation between commons and the system.

Q6: What are the physical dimensions and weight?
A6: Dimensions are approximately 10.7 cm × 13.0 cm × 3.3 cm (L × W × H) and weight is around 0.30 kg.

Q7: Can the module detect push-button or edge inputs?
A7: Yes, it supports push-button mode for edge and pulse detection, suitable for manual control inputs.

Q8: What wiring options are available?
A8: Supports KS cable interface adapters, MIL connectors, and compression terminals for flexible field wiring.

Q9: Is it suitable for harsh industrial environments?
A9: Yes, the module features high noise immunity and meets industrial environmental standards for temperature and humidity.

Q10: What should be checked if input signals are unstable?
A10: Verify signal voltage levels, grounding quality, shielding, cable integrity, and ensure input frequency is within specifications.
