FAQs (10 Questions & Answers)

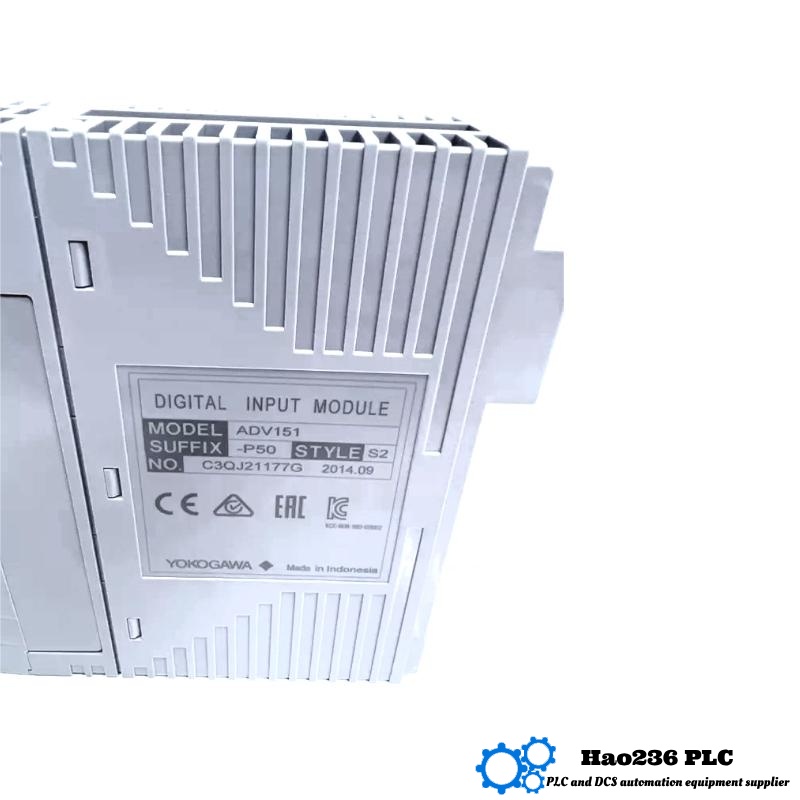

Q1: What does the “P50” suffix mean in ADV151‑P50?

A1: The “P” indicates a module with pushbutton input functionality. The “5” means it is a basic type without status display or explosion‑proof features. The “0” denotes the base version of that variant.

Q2: How many input channels does ADV151‑P50 support?

A2: It supports 32 input channels.

Q3: What voltage is required for signals to be considered “ON”?

A3: Input ON is recognized when the voltage is in the range 18.0 to 26.4 V DC.

Q4: What is the OFF threshold?

A4: Input OFF is any voltage 5.0 V DC or less.

Q5: What is the response time for status inputs?

A5: Status inputs respond in 8 ms or less.

Q6: Can ADV151‑P50 detect button presses (pushbutton)?

A6: Yes. It supports pushbutton input detection; the minimum ON detection time is about 20 ms, maximum ON/OFF cycle for pushbutton input is 25 Hz.

Q7: What is the weight and size of the module?

A7: It weighs approximately 0.30 kg. Dimensions are about 107.5 mm × 130 mm × 32.8 mm.

Q8: How well is it isolated from the system?

A8: It has withstand voltage ratings: 2 kV AC between input signals and system for 1 minute; and 500 V AC between common terminals (every group of 16 channels) for 1 minute.

Q9: What environmental conditions is it rated for?

A9: Operating temperature range is from −20 °C to +60 °C.

Q10: What terminal / connection options are used?

A10: It uses pressure clamp terminals, a dedicated cable (AKB331), or MIL‑connector cable options.
