FAQ (Frequently Asked Questions)

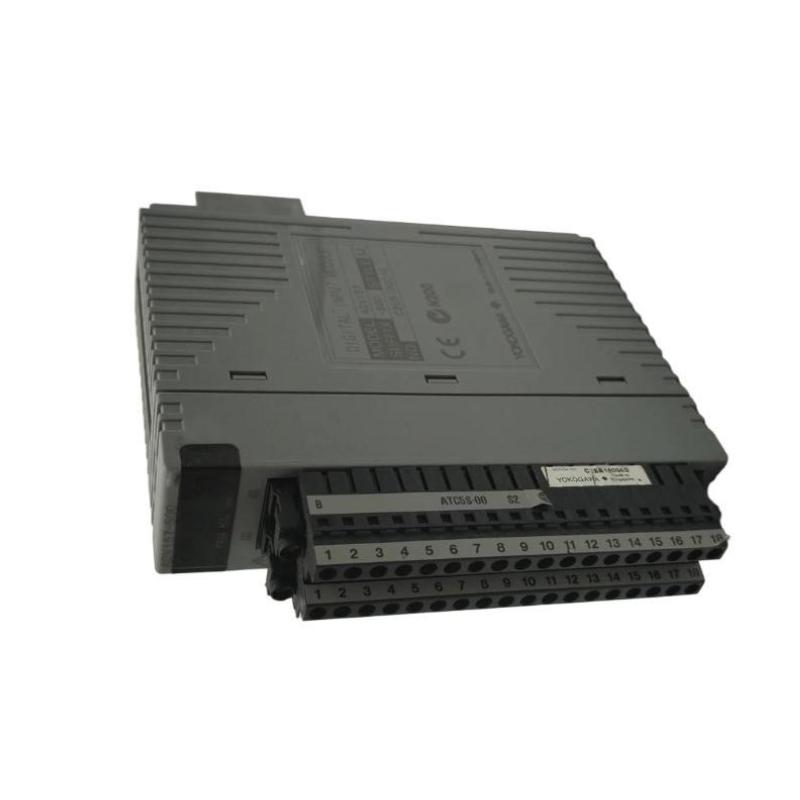

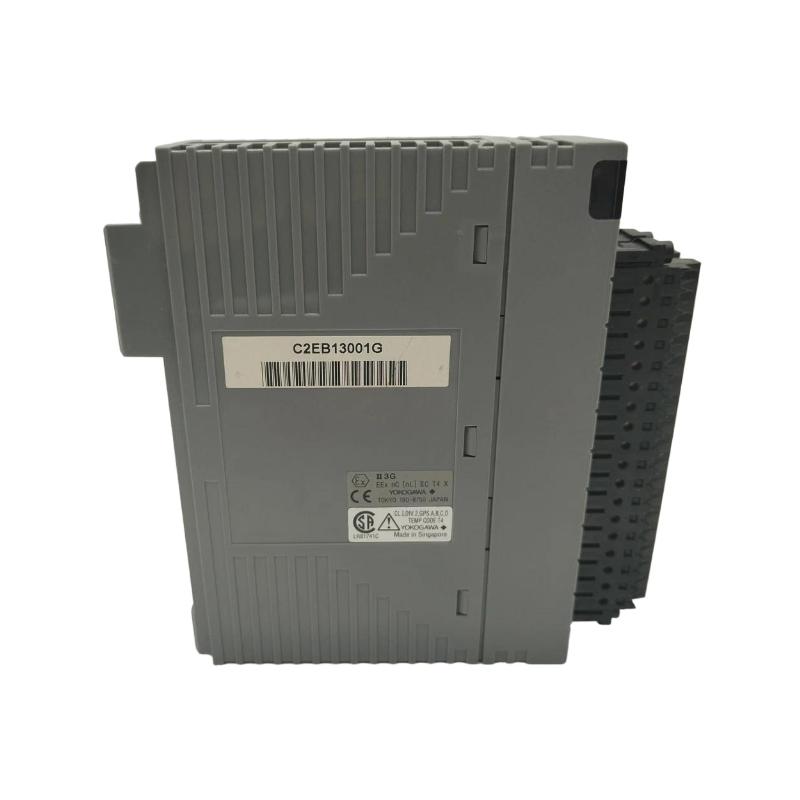

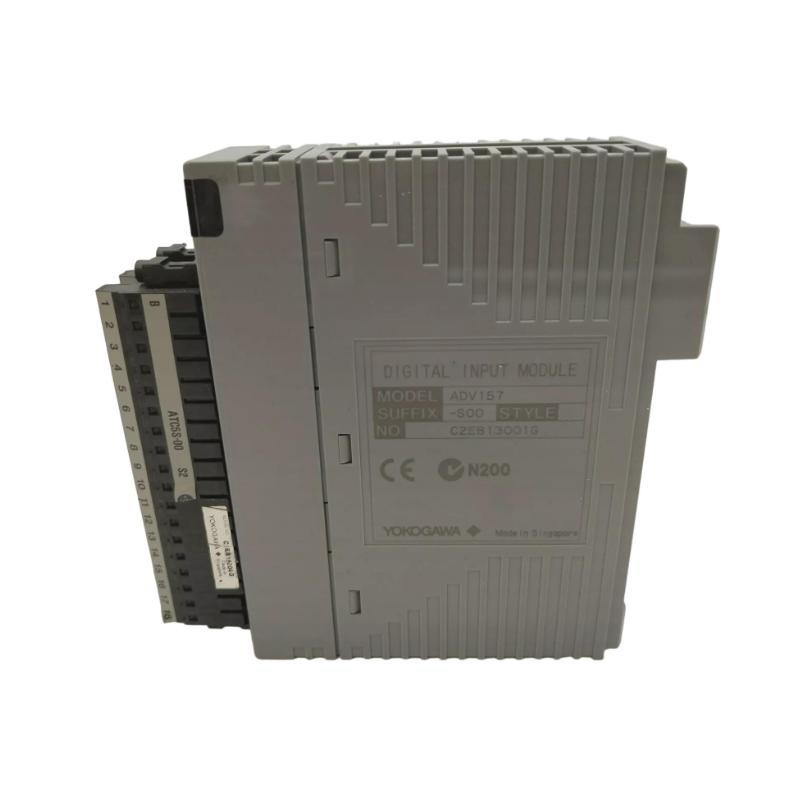

Q1: How many input channels does the ADV157‑S00 provide?
A1: It provides 32 discrete digital input channels.

Q2: What voltage signals are used for input?
A2: The module uses 24 V DC discrete ON/OFF signals. The ON voltage range is 18.0‑26.4 V DC; the OFF voltage is ≤ 5.0 V DC.

Q3: What is the input response time for this module?
A3: The status‑input response time is ≤ 8 ms, allowing timely detection of changes in field signal states.

Q4: Does this module support push‑button edge detection or high‑cycle inputs?
A4: Yes – it supports push‑button input mode with minimum ON detection time around 20 ms and a maximum ON/OFF cycle of about 25 Hz.

Q5: What are the physical dimensions and weight of the module?
A5: Approximately 10.6 cm (width) × 13.0 cm (height) × 3.2 cm (depth). The weight is approximately 0.30 kg.

Q6: What isolation protection does the ADV157‑S00 offer?
A6: It offers 2 kV AC isolation between input signal and system, and 500 V AC between each common group of 16 channels and system (for 1 minute), delivering strong electrical noise immunity.

Q7: Can this module be used in redundant I/O architectures or high‑availability systems?
A7: Yes – it is part of the Yokogawa field‑I/O family and supports installation in field I/O racks with redundant channels or dual rails for higher reliability.

Q8: What wiring interface is used by the S00 suffix module?
A8: The S00 denotes a basic type digital input module using pressure‑clamp terminal blocks for channel wiring.

Q9: Which industries or applications suit this module?
A9: It is suited for process automation industries (oil & gas, petrochemical, power generation), utilities (water/wastewater), manufacturing automation, any system needing many 24 V discrete inputs captured reliably in compact form.

Q10: If I need higher channel count or advanced features (like event logging), which module should I consider?
A10: For higher channel count, you might consider ADV161 (64 channels). For advanced features (such as Sequence‑of‑Events or special environment ratings), consider other variants such as the ADV151‑PE0 series or “E” suffix modules.
