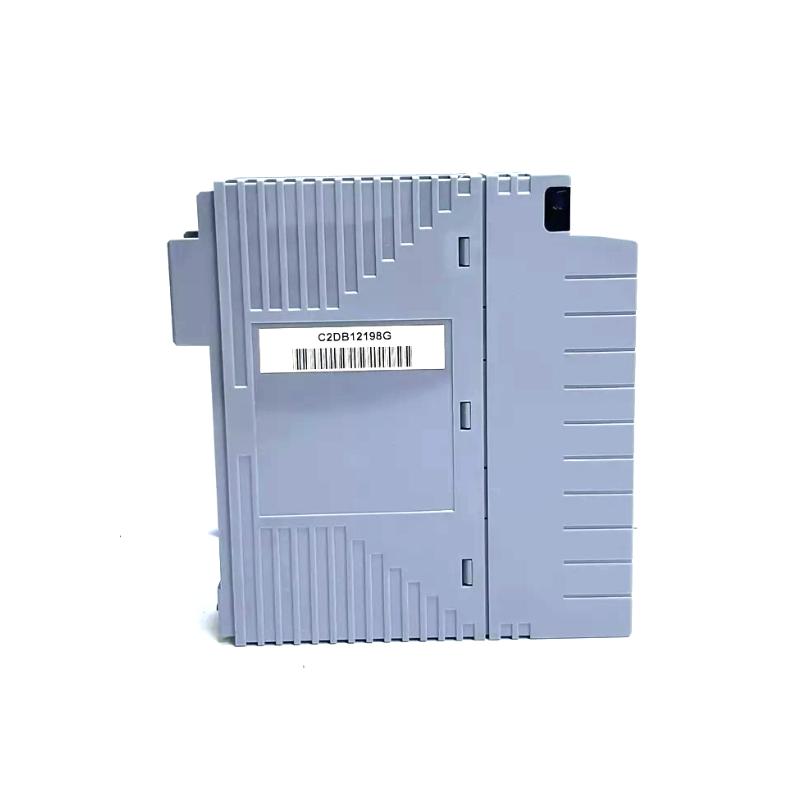

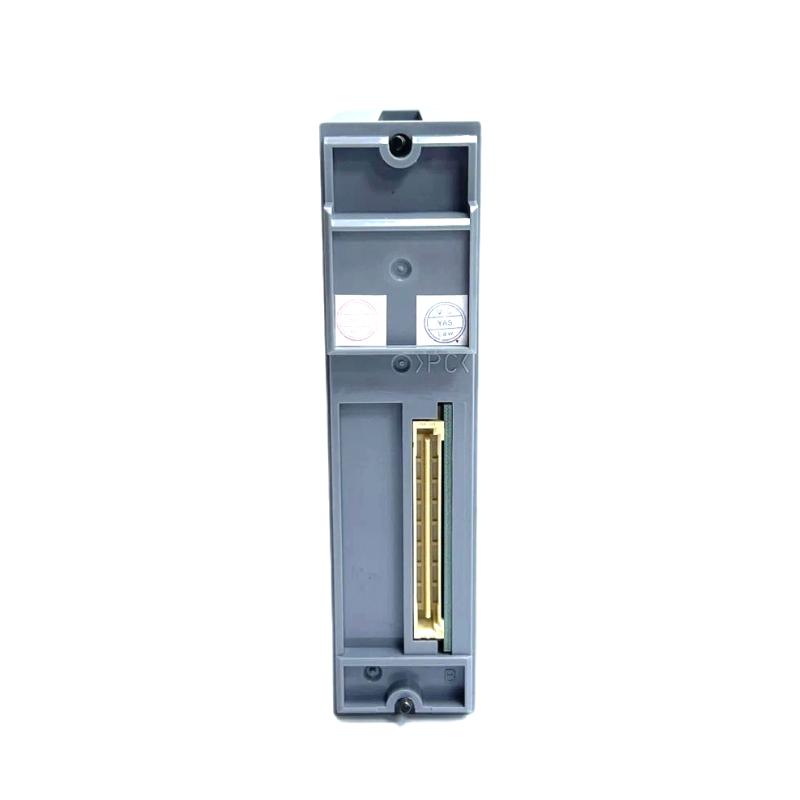

FAQ (Frequently Asked Questions)

Q1: How many input channels does the ADV159‑P01 S1 module provide?
A1: The module provides 32 discrete input channels in one slot.

Q2: What types of input signals can the module accept?
A2: It supports both dry‑contact (contact input) and voltage input (4.5 – 25 V DC) signals, offering flexible field‑device connectivity.

Q3: What is the typical input response time?
A3: The signal response time for status‑type inputs is 8 ms or less.

Q4: Does it support push‑button or edge detection mode?
A4: Yes — the “P” variant (P01) supports push‑button input mode, with minimum ON detection time around 20 ms and maximum ON/OFF cycle of about 25 Hz.

Q5: What are the physical dimensions and weight of the module?
A5: The approximate dimensions are 10.7 cm × 13.0 cm × 3.2 cm, and weight is about 0.40 kg.

Q6: What level of isolation and channel separation does the module offer?
A6: It provides isolated channels, with isolation between input and system and between channel groups, which helps protect signal integrity in noisy environments.

Q7: What is the rated input voltage and ON/OFF thresholds?
A7: The rated input voltage is 24 V DC. ON voltage range is about 18.0‑26.4 V DC; OFF voltage is 5.0 V or less.

Q8: For what kind of applications is this module particularly suited?
A8: It is well suited for process control, manufacturing automation, utility systems, remote I/O nodes or expansions where many discrete inputs must be captured reliably.

Q9: What are the wiring and installation advantages of this module?
A9: With 32 channels per module, support for multiple input types and isolated input channels, wiring is reduced, panel space is saved and maintenance is simplified.

Q10: If I need higher channel density or additional features like event logging, what other module should I consider?
A10: For higher channel density you might consider the ADV161 series (64‑channel input). For features such as SOE/event capture, look for modules with suffixes in the ADV159 or ADV151 family that list “SOE” or “Event” functions.
