FAQ (10 Common Questions – QA Format)

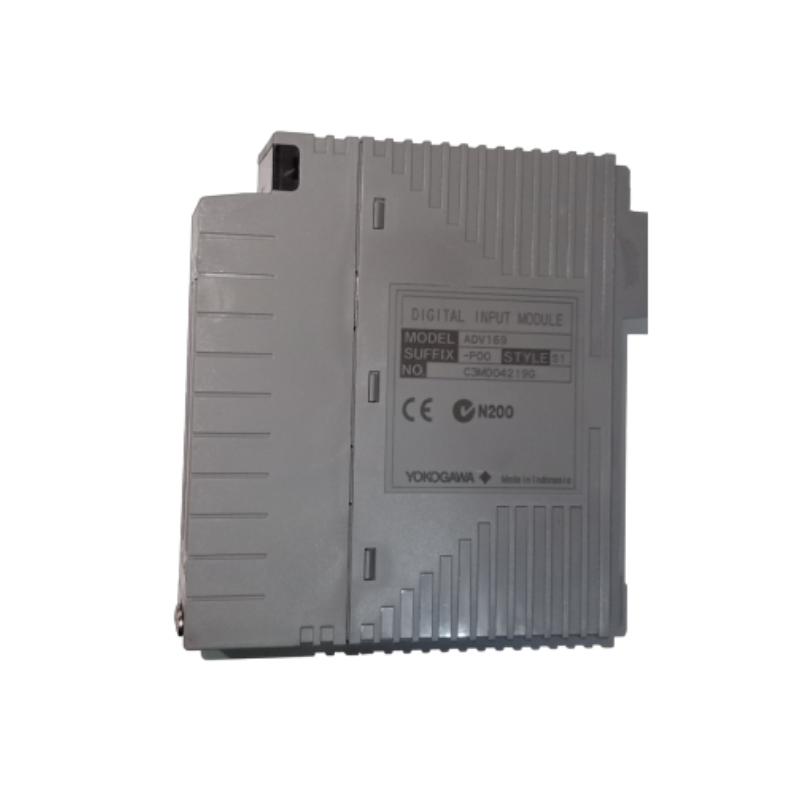

Q1: How many input channels does the ADV169-P00 provide?
A1: It provides 64 independent digital input channels.

Q2: What types of signals can it accept?
A2: It can accept either dry contact inputs (open/closed) or low-voltage DC voltage signals (4.5 – 25 V DC).

Q3: What is the input response time?
A3: The typical response time is 8 milliseconds or less for status input detection.

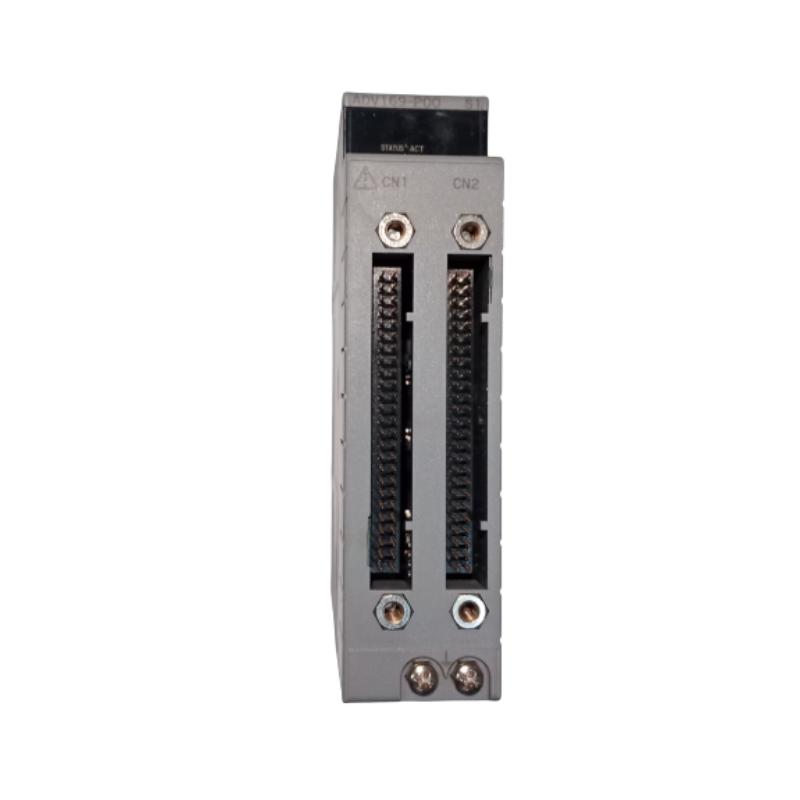

Q4: How are the input channels grouped and what is their wiring scheme?
A4: Every 16 channels share a common minus (COM-) side, which simplifies wiring; each group is isolated from the others for noise immunity.

Q5: What is the weight and physical size of the module?
A5: The approximate dimensions are 120 mm × 230 mm × 35 mm, and the weight is about 0.40 kg.

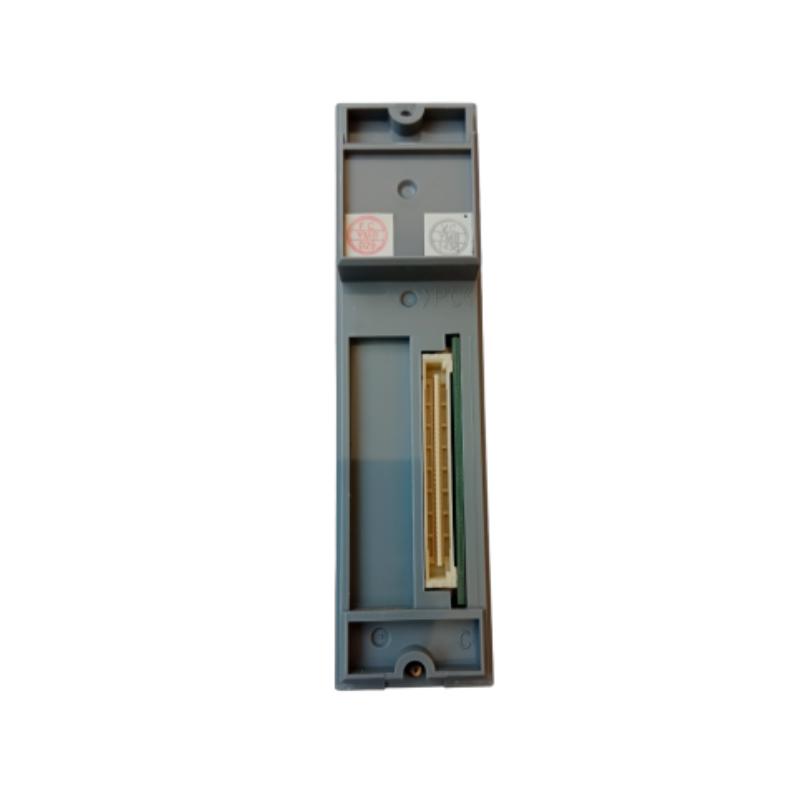

Q6: Is the module compatible with existing Yokogawa I/O racks or base frames?
A6: Yes, it integrates with the I/O base/backplane infrastructure of the Yokogawa family, enabling ease of installation and replacement.

Q7: Can the ADV169-P00 be used in harsh industrial environments?
A7: Yes, it is designed for robust industrial use, with an operating temperature down to -20 °C and humidity up to 95 % (non-condensing).

Q8: What happens if I need fewer channels? Is there a smaller version?
A8: Yes, other variants like the ADV169-PM or ADV169-PK (32-channel versions) exist within the same series to match lower channel-count requirements.

Q9: Does the module require special cooling or significant power supply?
A9: It consumes up to approx. 800 mA at 5 V DC supply, and due to moderate heat dissipation, standard ventilation in a control cabinet is typically sufficient—no special forced cooling is normally required.

Q10: How do I perform maintenance or replacement of this module?
A10: Power down the I/O rack, unplug or slide out the module from its base, disconnect input wiring if required, install the replacement module, reconnect wiring, and power up – then perform a system check to ensure all channels are functioning correctly.
