FAQ – Frequently Asked Questions (10 Q&A)

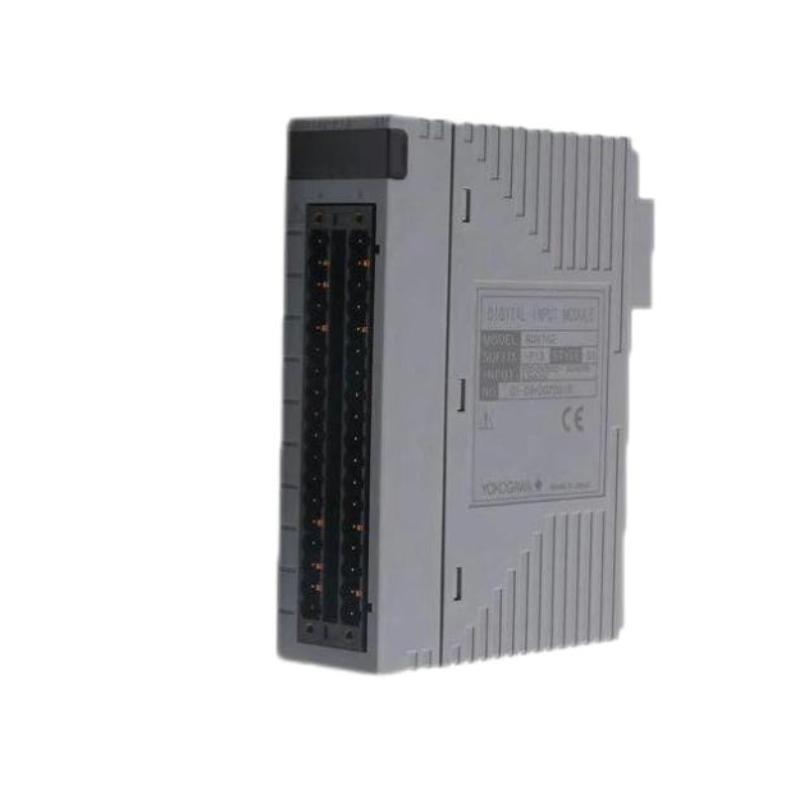

Q1: How many input channels does the ADV169-P01 provide?
A1: It offers 64 discrete input channels for ON/OFF signal acquisition.

Q2: What signal types can the module accept?
A2: It accepts both dry contact inputs (open/closed switch contacts) and low-voltage DC input signals (4.5-25 V DC typical).

Q3: What is the input response time?
A3: The typical response time is ≤ 8 milliseconds for status input detection, allowing for timely monitoring.

Q4: How are the channels grouped for wiring?
A4: The 64 channels are grouped into four blocks of 16 channels each; every block shares a common minus (COM-) side, simplifying wiring.

Q5: What are the physical dimensions and weight of the module?
A5: The module measures approximately 120 mm (width) × 230 mm (height) × 35 mm (depth), and weighs approximately 0.30 kg.

Q6: Is the ADV169-P01 compatible with existing I/O racks and base frames from the same family?
A6: Yes – as part of the ADV169 series, it integrates with the same I/O base frames, backplanes and system infrastructure used by other modules in the brand’s family.

Q7: What environments is the module designed for?
A7: It is built for industrial automation environments, with an operating temperature range from -20 °C to +60 °C and high tolerance for humidity (up to ~95% non-condensing).

Q8: If my signal count is smaller, do I need 64 channels always?
A8: Not necessarily – there are lower-channel modules in the same family (e.g., 32-channel variants) which may better suit smaller signal counts and reduce cost.

Q9: Does the module require special cooling or high power consumption?
A9: No special cooling is required. The typical current consumption is around 800 mA at 5 V DC. Standard panel ventilation is sufficient for many installations.

Q10: How is module maintenance or replacement carried out?
A10: To maintain or replace the module: power down the I/O rack, remove or unplug the module from its base frame, disconnect input wiring if needed, install replacement module, reconnect wiring, power up and perform system check to ensure channel functions.
