FAQ – Frequently Asked Questions (10 Q&A)

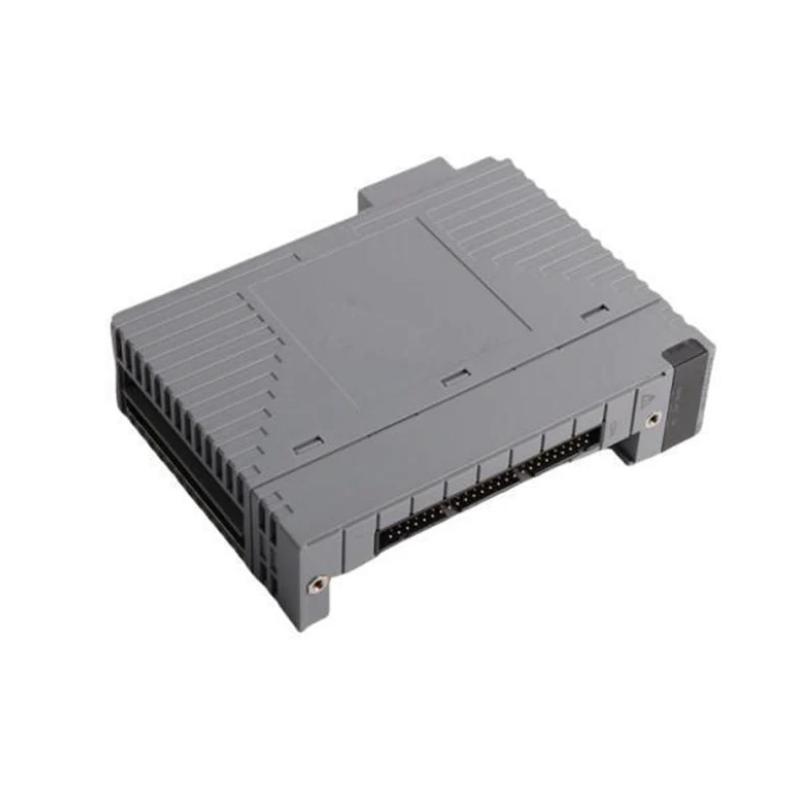

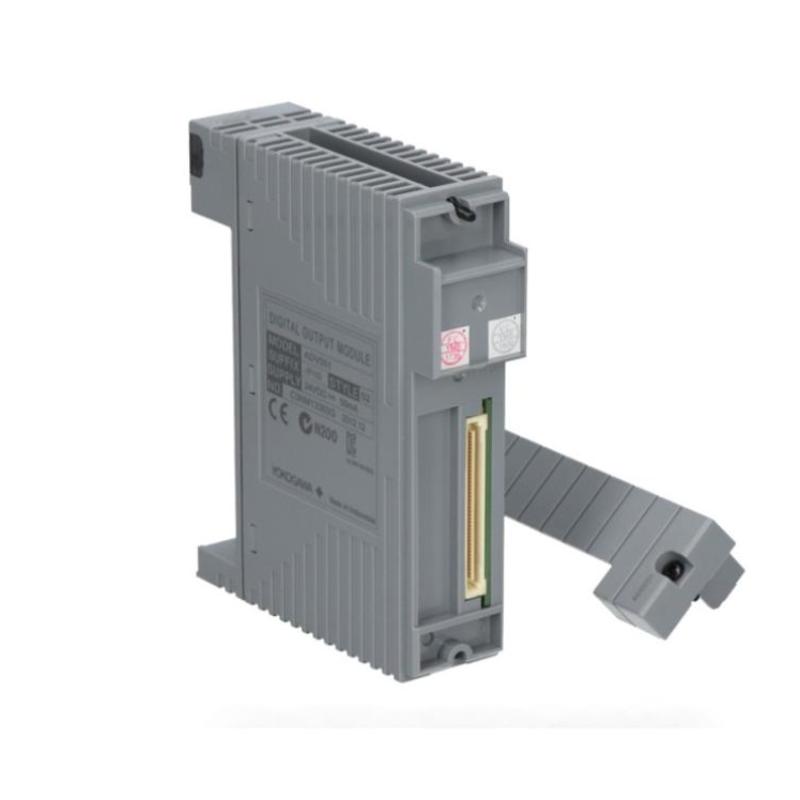

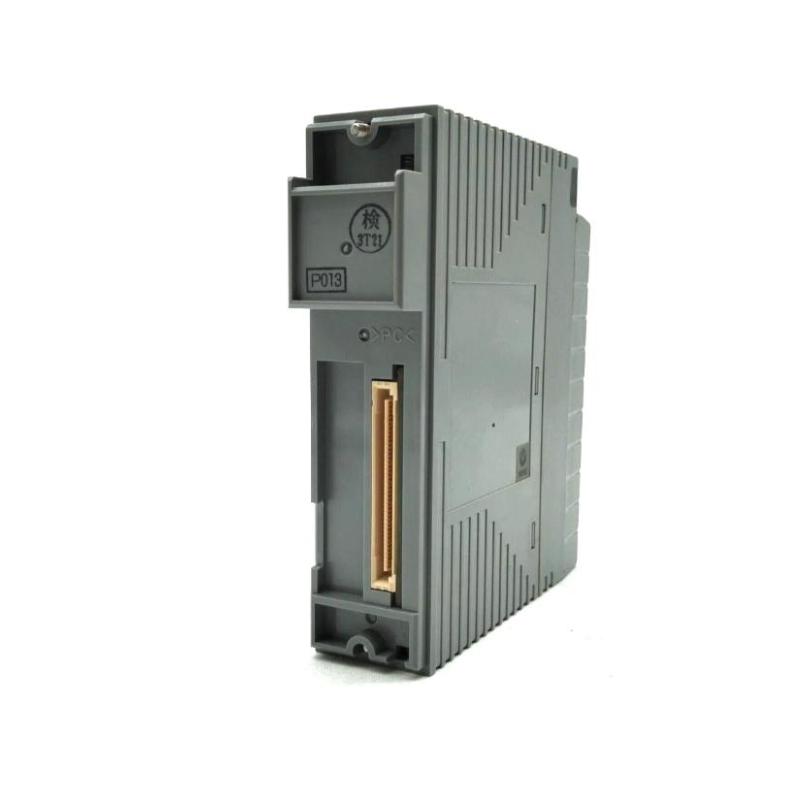

Q1: How many output channels does the ADV551‑P00/D5A00 provide?
A1: It provides 32 discrete digital output channels in one module.

Q2: What is the nominal output voltage for this module?
A2: The module uses a nominal 24 V DC applied voltage.

Q3: What is the maximum current per channel that this module can drive?
A3: Each output channel is rated for approximately 100 mA when operated at approximately 26.4 V DC.

Q4: What is the response time for output switching?
A4: For status ON/OFF outputs the response time is ≤ 3 ms; for mixed status and pulse outputs it may be ≤ 10 ms.

Q5: What are the physical dimensions and weight of the module?
A5: The module measures approximately 107.5 mm wide × 130 mm high × 32.8 mm deep, and the weight is about 0.20 kg (200 grams).

Q6: What output format does the module use (sink/source)?
A6: The ADV551‑P00/D5A00 uses current‑sink type digital outputs suitable for field devices compatible with 24 V DC.

Q7: Does the module support pulse width or time‑proportional output features?
A7: While the P00 variant is the basic model focusing on ON/OFF status outputs, the series supports pulse width/time‑proportioning in certain option variants (e.g., P50).

Q8: Is this module compatible with Yokogawa’s modular I/O platforms?
A8: Yes — it is part of the ADV551 series and designed to integrate with the brand’s base frames, backplanes and cable systems, facilitating system integration and spare‑parts management.

Q9: What operating environment conditions is the module designed for?
A9: Typical operating temperature is around ‑20 °C to +60 °C (depending on installation and ventilation). The module is designed to handle standard industrial environments with appropriate wiring and installation.

Q10: How should I maintain or replace this module in a control system?
A10: Maintenance or replacement involves powering down or isolating the I/O rack/backplane, removing the existing module, inserting the replacement into the same slot, reconnecting field wiring or terminal connections, powering up the system and verifying that all output channels function correctly. Regular inspection of wiring, connections and rack ventilation is recommended.
