FAQ – Frequently Asked Questions (10 Q&A)

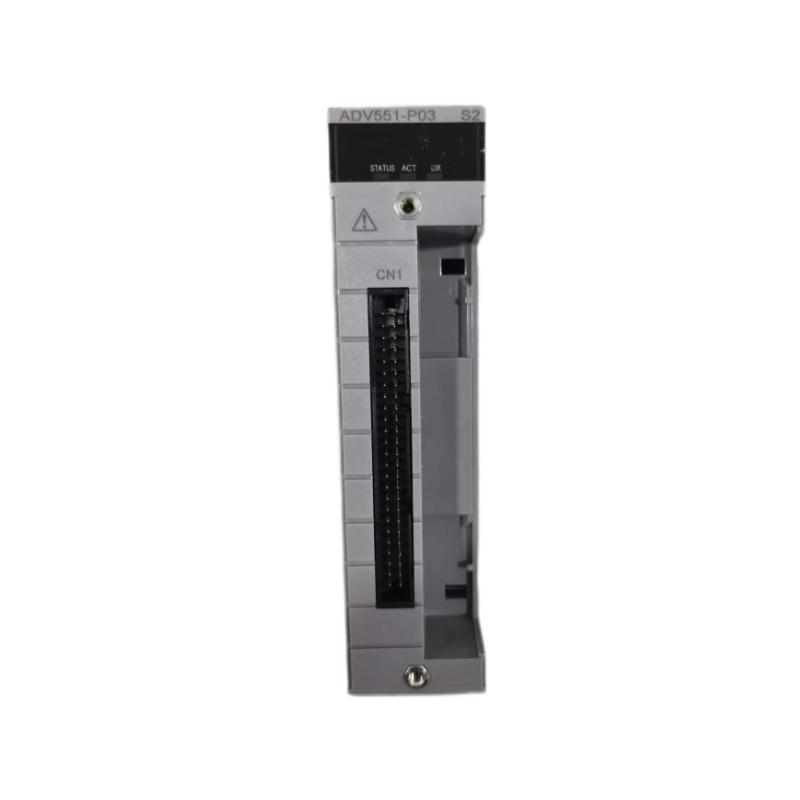

Q1: How many output channels does the ADV551‑P03 S2 provide?
A1: It provides 32 discrete digital output channels.

Q2: What types of signals can this module drive?
A2: It can drive discrete 24 V DC field devices such as solenoids, relays, valve actuators and indicator lamps via current‑sink outputs.

Q3: What is the response time of its outputs?
A3: For standard status outputs the response time is ≤ 3 ms; for mixed status/pulse outputs the response time may be ≤ 10 ms.

Q4: What are the dimensions and weight of this module?
A4: The module measures approximately 107.5 mm (width) × 130 mm (height) × 32.8 mm (depth), and weighs around 0.20 kg.

Q5: What output current can each channel handle?
A5: Each channel is rated for approximately 100 mA load current at the upper allowable voltage (~26.4 V DC).

Q6: Is this module part of a standard I/O platform?
A6: Yes — it belongs to the ADV551 series of Yokogawa digital output modules and integrates with the modular base frames/backplanes used in that ecosystem.

Q7: What is the recommended voltage supply range for the module?
A7: The external field power supply voltage range is 20.4‑26.4 V DC.

Q8: Does the series support pulse width/time‑proportion outputs?
A8: Yes — while the P03 variant focuses on standard output use, the ADV551 series includes variants (such as P50) offering pulse width/time‑proportioning output functions.

Q9: What industrial environments is the module suitable for?
A9: It is designed for industrial automation environments with ambient temperatures roughly ‑20 °C to +60 °C, moderate humidity and typical electrical noise, wiring and vibration conditions.

Q10: What is involved in installing or replacing this module?
A10: Installation or replacement involves mounting the module into the rack/backplane aligned with its peers, connecting field output wiring, powering the system, and verifying each channel’s operation. Replacement typically involves removing the module, inserting the new one, reconnecting wiring and running channel tests.
