FAQ – Frequently Asked Questions (10 Q&A)

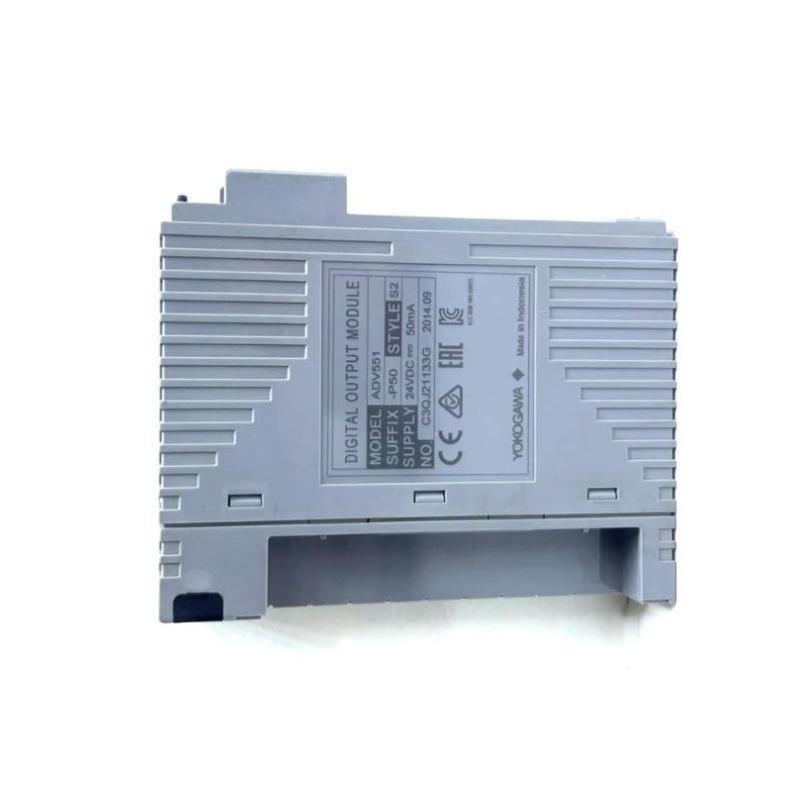

Q1: How many output channels does the ADV551-P50 S2 provide?
A1: It provides 32 discrete digital output channels in one module.

Q2: What is the nominal operating voltage for this module’s outputs?
A2: The outputs are designed for a nominal 24 V DC.

Q3: What is the maximum current each channel can drive?
A3: Each channel is rated to drive up to around 100 mA at the top voltage (approx. 26.4 V).

Q4: What kinds of output functions are supported beyond simple ON/OFF?
A4: The P50 variant supports pulse-width and time-proportional output, enabling more refined control strategies.

Q5: What is the response time for switching the outputs?
A5: For standard status outputs it’s ≤ 3 ms; when using mixed status/pulse modes it may be up to ≤ 10 ms.

Q6: What are the module’s physical dimensions and weight?
A6: Dimensions are approximately 107.5 mm (W) × 130 mm (H) × 32.8 mm (D), and the module weighs about 0.20 kg.

Q7: What output format does this module use?
A7: It uses a current-sink format for digital outputs compatible with 24 V DC field devices.

Q8: Is the module compatible with the brand’s modular I/O architecture?
A8: Yes – it is part of the ADV551 series and designed for integration into standard racks/backplanes of the Yokogawa system.

Q9: What ambient conditions can it operate under?
A9: It is rated for typical ambient range of -20 °C to +60 °C under industrial installation conditions.

Q10: How is maintenance or module replacement handled in a system?
A10: The module uses a plug-in architecture; maintenance involves isolating power, removing the module, replacing it, reconnecting field wiring, and verifying each output channel’s function. Periodic inspection of wiring, connections and ventilation is recommended.
