FAQ – 10 Questions (Q/A Format)

Q1: How many output channels does the ADV557-S00 support?
A1: It supports 32 discrete output channels in the standard module configuration.

Q2: What type of output does the module provide?
A2: The module provides current-sink transistor outputs (24 V DC) with isolation between output channels and the system.

Q3: What is the maximum current each channel can handle?
A3: Typically up to approximately 100 mA per channel under nominal conditions.

Q4: What is the response time of the outputs?
A4: The module features response time of ≤ 3 ms for standard status output; when mixed with pulse or time-proportional functions the response can be ≤ 10 ms.

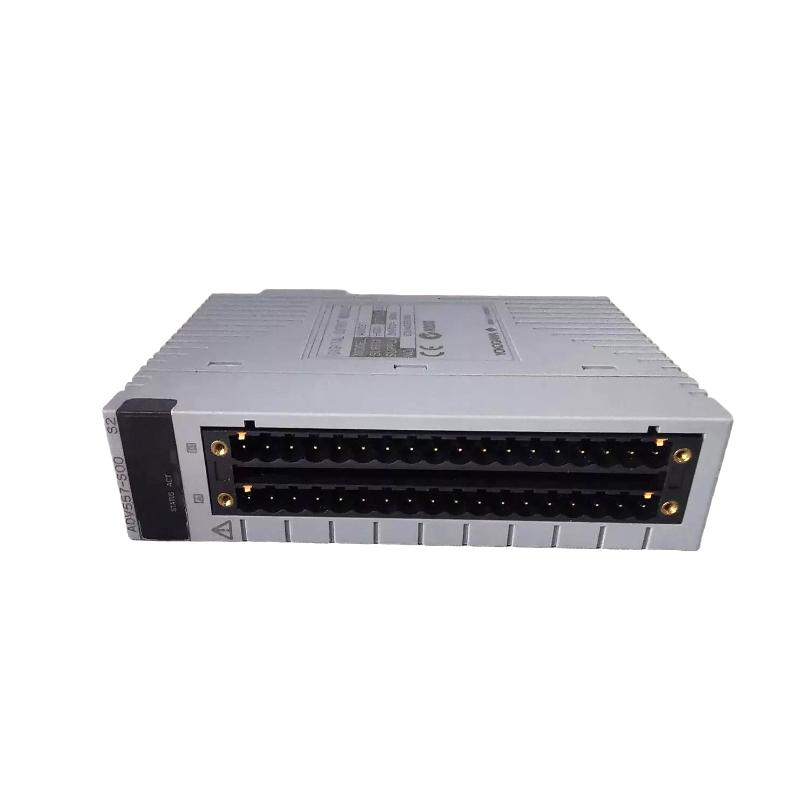

Q5: What wiring interface does the module use?
A5: This variant uses a pressure-clamp terminal block for field wiring; other variants may use cable adapters.

Q6: What are the size and weight of the module?
A6: The module dimensions are approximately 130 mm x 127 mm x 32.8 mm, and it weighs around 0.50 kg (or variant dependent ~0.30 kg).

Q7: Is the module suitable for high-noise industrial environments?
A7: Yes. High isolation ratings (2 kV AC output-to-system, 500 V AC between commons) make it suited to electrical noise, surges, and heavy field wiring.

Q8: What kind of field devices can it drive?
A8: It can drive 24 V DC solenoids, relays, indicator lamps, alarms, actuators — provided the device ratings match the output channel specifications.

Q9: Can the module be used in redundant or high-availability setups?
A9: Yes. It is designed to integrate into modular rack/backplane systems commonly used in redundant or high-availability control environments.

Q10: What is the ambient operating temperature range?
A10: For the standard version, it operates from 0 °C to +55 °C; some variants may support extended temperature ranges.
