FAQ – (10 Questions & Answers)

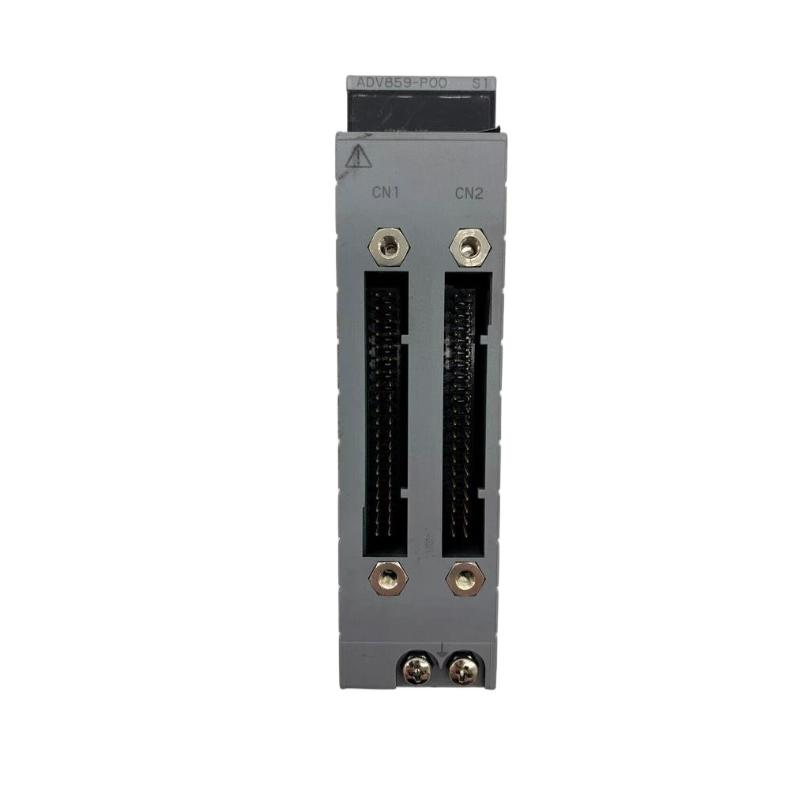

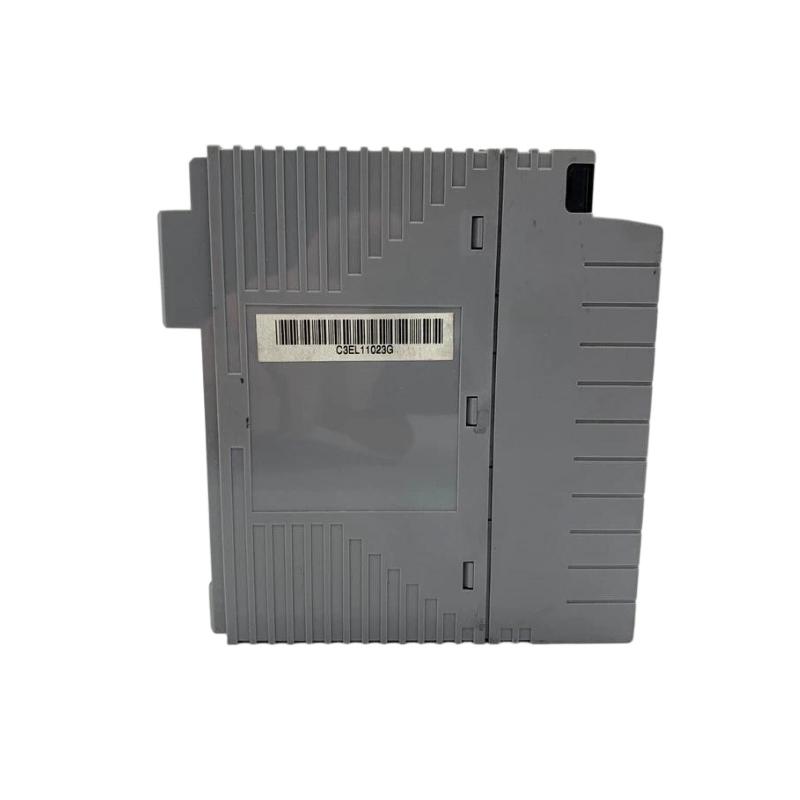

Q1: What does the ADV859-P00 module provide?
A1: It provides 16 digital input channels and 16 digital output channels in one module, combining status monitoring and actuator output in a single card.

Q2: What voltage are the I/O channels designed for?
A2: Both input and output channels are designed for 24 V DC standard industrial signals.

Q3: Are the channels isolated?
A3: Yes — input and output channels are isolated to protect the control system and reduce interference.

Q4: Can the outputs perform timed functions?
A4: Yes — the output section supports pulse-width and time-proportional modes, with a range from roughly 8 ms up to 7200 seconds.

Q5: What is the typical weight and dimension of the module?
A5: Approximately 144 mm wide × 100 mm high × 30 mm deep, and weighs about 0.30 kg.

Q6: What type of loads can the outputs drive?
A6: The outputs are transistor type, rated for approx. 30 V DC and 100 mA (resistive or inductive loads).

Q7: What is the response time for inputs and outputs?
A7: Input response time is about 8 ms for status changes; output response time is less than or equal to 16 ms for normal switching.

Q8: Is this module suited for remote I/O stations?
A8: Yes — thanks to its mixed I/O design and compact footprint, it is well suited for remote racks or field I/O panels.

Q9: Does it support redundant systems?
A9: Yes — the module is designed to plug into modular rack systems which can be configured for redundancy for higher availability.

Q10: In what industries is the ADV859-P00 typically used?
A10: It is often used in process control, utilities, manufacturing, packaging, water/wastewater, and any automation system requiring both discrete inputs and outputs with timing capability.
