FAQ – 10 Questions & Answers

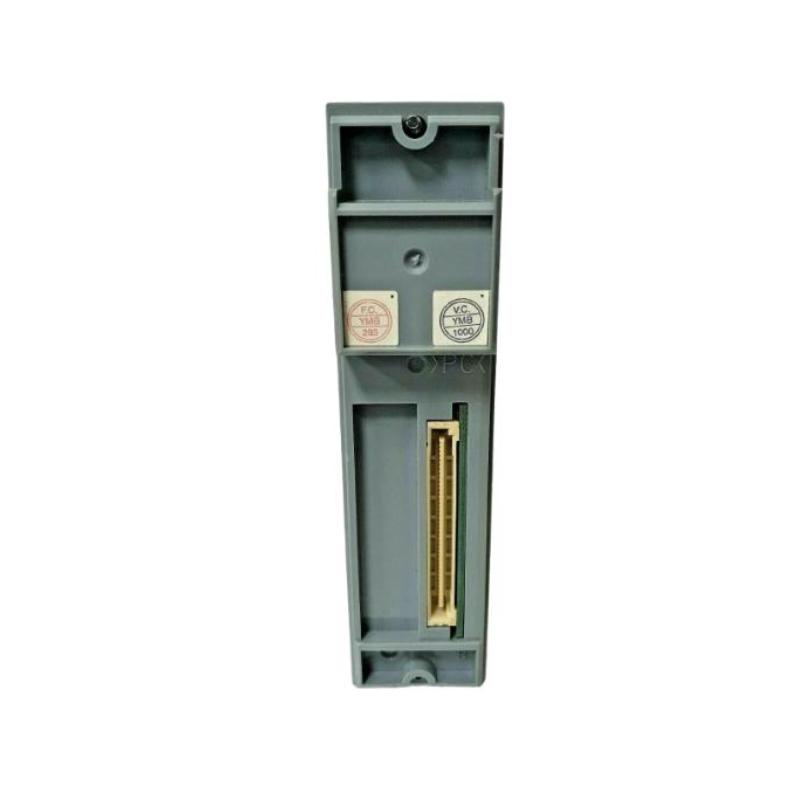

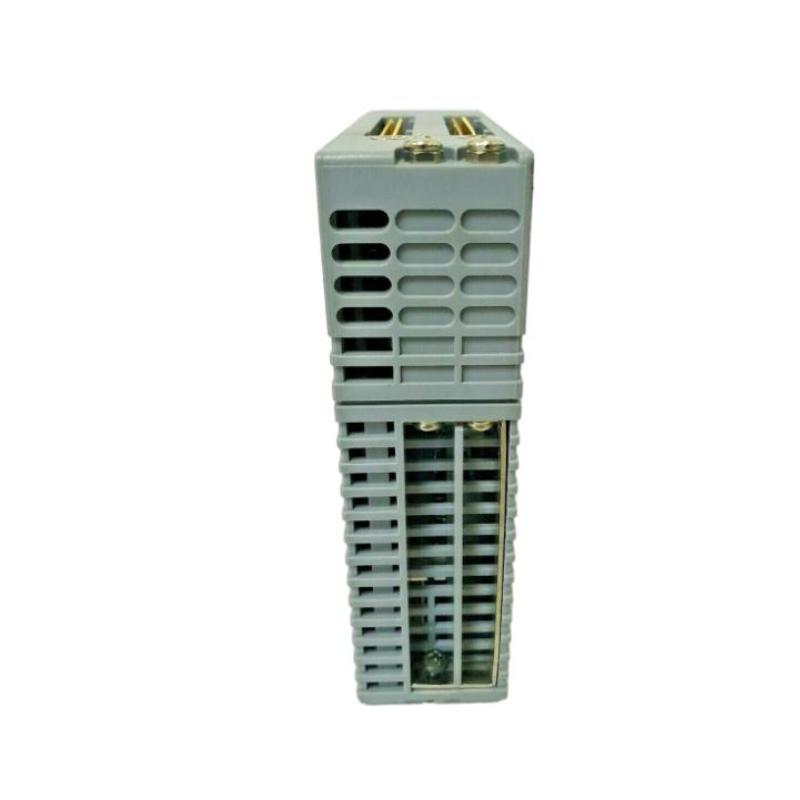

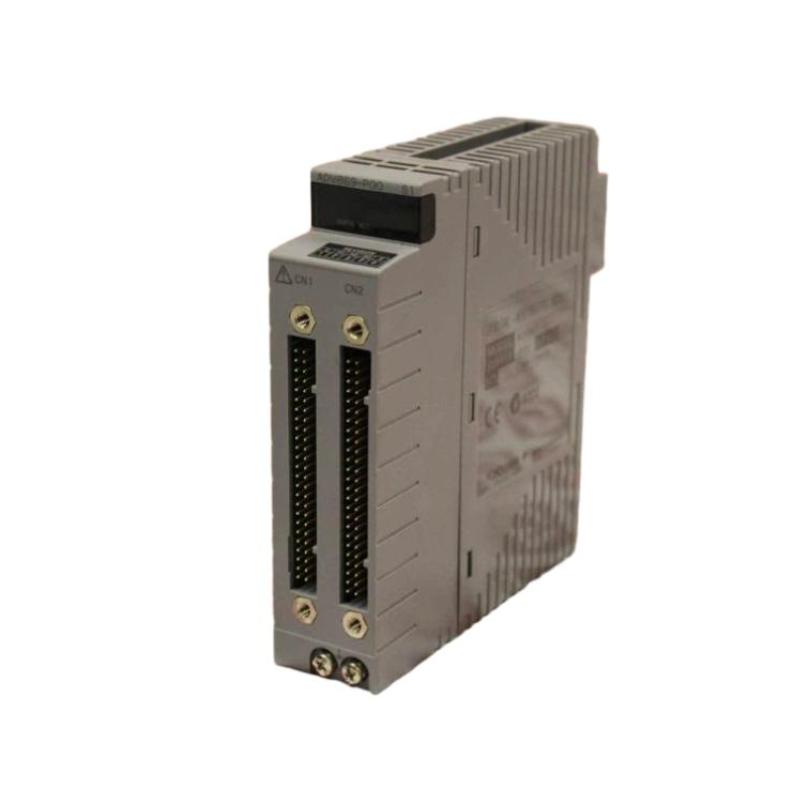

Q1: What I/O capacity does the ADV869-P00 offer?
A1: It offers 32 digital input channels and 32 digital output channels in a single module.

Q2: Does the ADV869-P00 support timed output functions?
A2: Yes — the module supports pulse-width and time-proportional output controls on the output channels.

Q3: What is the rated output load for each output channel?
A3: Each output channel is rated for approx. 30 V DC, 100 mA for resistive or inductive loads.

Q4: What is the physical dimension and weight of the module?
A4: Approximate dimensions are 144 mm × 100 mm × 30 mm, and the weight is about 0.30 kg.

Q5: What is the response time for input detection and output switching?
A5: Input response is about 8 ms; output switching is up to 16 ms for standard on/off, with timing modes slower depending on pulse parameters.

Q6: Is the module isolated per channel group?
A6: Yes — the modules have isolated channel groups: common negative side every 16 channels, helping protect against field interference.

Q7: What field voltage is used for inputs and outputs?
A7: Both inputs and outputs operate at 24 V DC, which is standard industrial discrete logic voltage.

Q8: Can this module be used in remote I/O applications?
A8: Yes — its mixed I/O design and compact size make it suitable for remote I/O racks or field interface panels.

Q9: Is the module suitable for high-availability configurations?
A9: Yes — the module fits modular rack architectures which support redundancy for high-availability systems.

Q10: What are common application areas for ADV869-P00?
A10: Typical applications include process automation, manufacturing lines, utility systems, alarm/interlock panels, water/wastewater systems and other industrial control systems combining status monitoring and timed actuation.
