Frequently Asked Questions (FAQs)

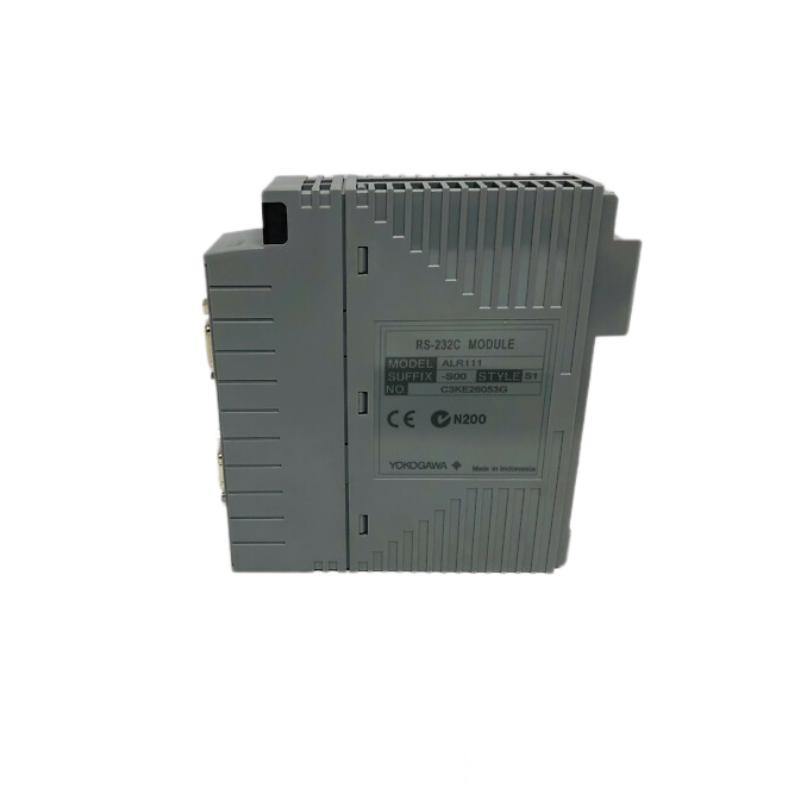

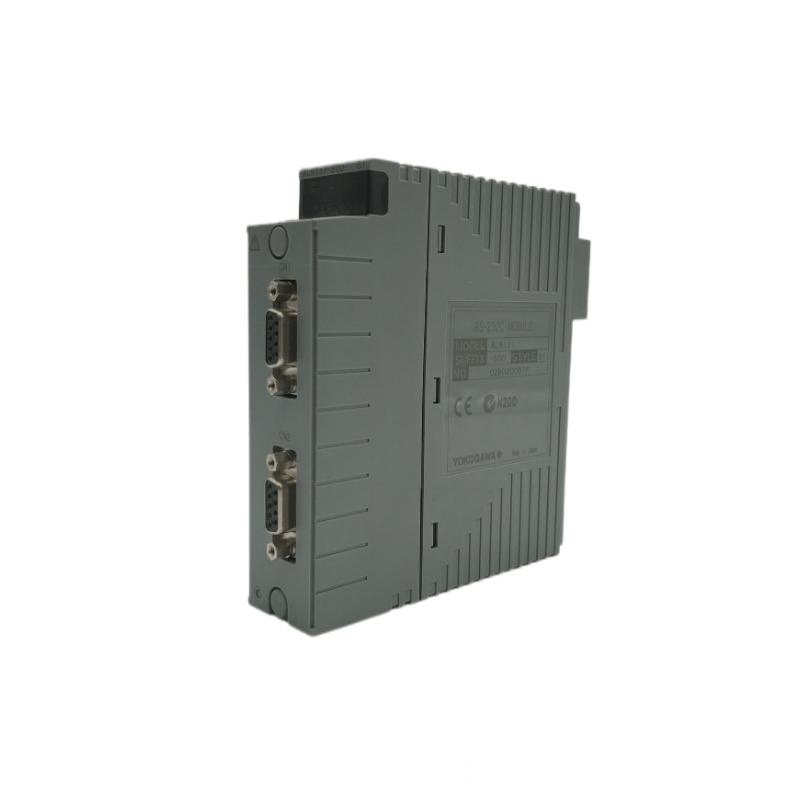

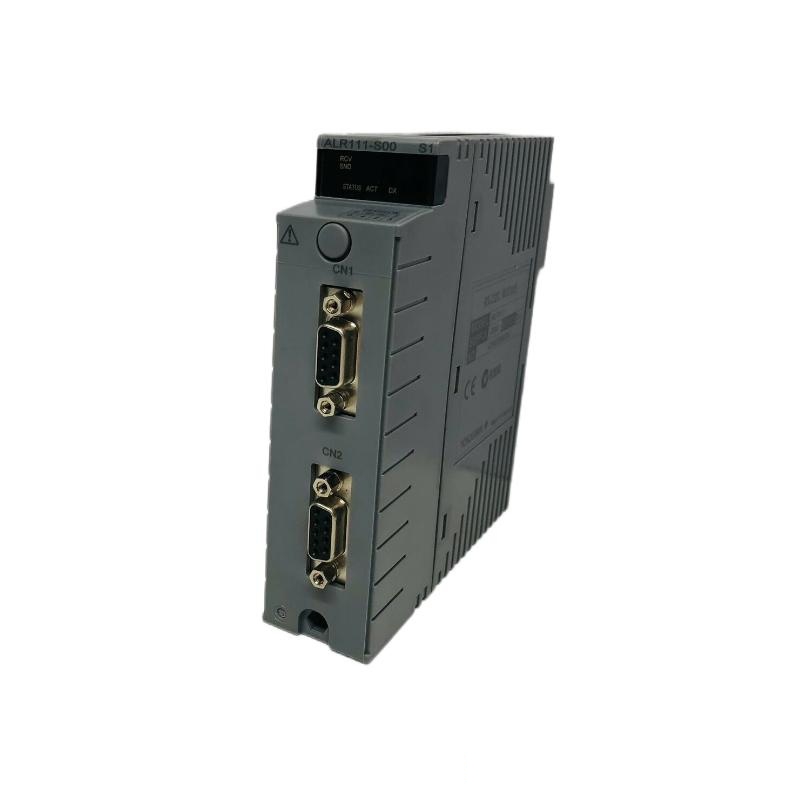

Q1: What is the primary function of the ALR111-S00 communication module?
A1: The ALR111-S00 enables serial communication between field devices and control systems, supporting RS-232 and RS-485 protocols for data transfer.

Q2: What is the cable length for the communication connections?
A2: The module uses standard cables with varying lengths based on installation requirements, but the module itself does not include a cable.

Q3: What is the data transfer rate supported by this module?
A3: The ALR111-S00 supports data transfer rates from 9600 bps to 115200 bps, making it suitable for real-time applications.

Q4: How is the module installed?
A4: The module is designed for DIN rail mounting, allowing for easy integration into control cabinets and other industrial setups.

Q5: Can this module be used in outdoor applications?
A5: The module is designed for indoor use with IP20 protection, making it suitable for standard industrial environments but not for harsh outdoor conditions.

Q6: What is the voltage requirement for this module?
A6: The module operates with a 24V DC ±10% power supply, commonly used in industrial systems.

Q7: Is the ALR111-S00 compatible with Yokogawa’s other systems?
A7: Yes, it is fully compatible with other Yokogawa automation systems and can also integrate with third-party devices using supported protocols.

Q8: What is the temperature range for this module?
A8: The ALR111-S00 operates within a temperature range of -10°C to +60°C, suitable for most industrial environments.

Q9: Does the module have built-in diagnostic capabilities?
A9: Yes, the ALR111-S00 supports diagnostics via the communication protocols, helping to identify potential faults or issues in the system.

Q10: How does the ALR111-S00 module handle noise interference?
A10: The module’s design minimizes the effects of electrical noise, and its use of RS-485 allows for longer cable runs with minimal signal degradation.
