Frequently Asked Questions (FAQ)

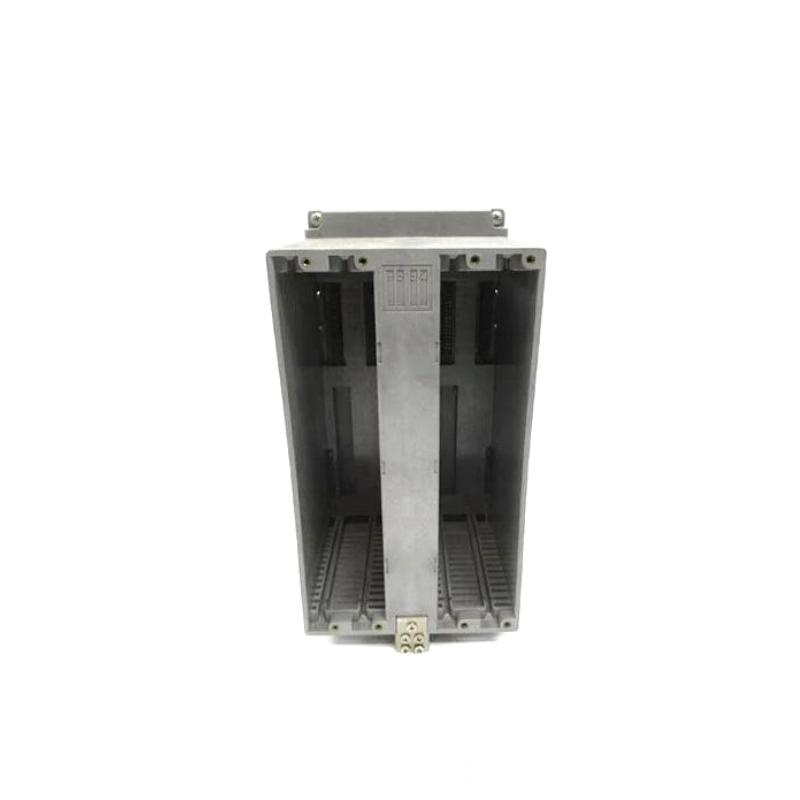

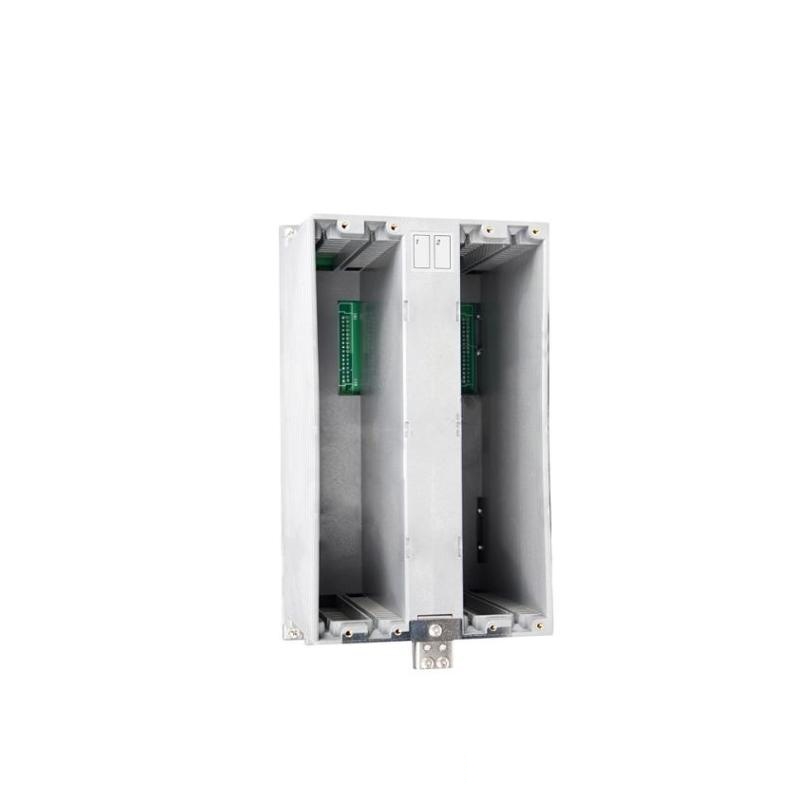

Q1: How many cards can the AMN51 rack accommodate?
A1: Up to eight communication or I/O interface cards.

Q2: What power rails are integrated?
A2: The backplane provides +5 V and +24 V DC power distribution.

Q3: What are the physical dimensions?
A3: 300 × 200 × 150 mm (W×H×D).

Q4: How much does the rack weigh?
A4: Approximately 4 kg.

Q5: What mounting options are available?
A5: It supports panel-mounting or 19″ rack mounting via optional adapters.

Q6: What temperature range can it operate in?
A6: From –10 °C to +55 °C.

Q7: Does it include active cooling?

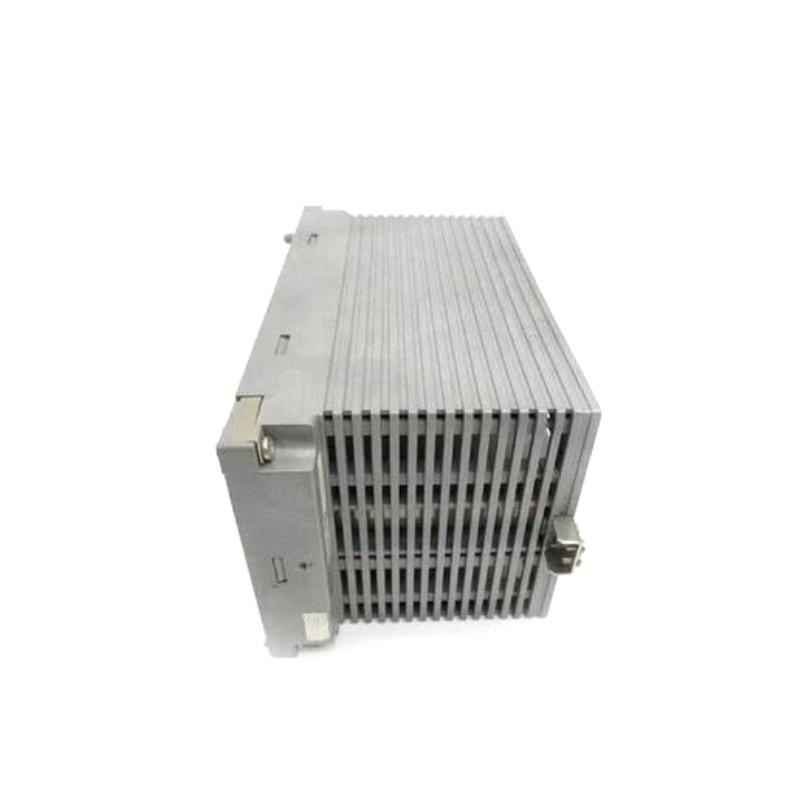

A7: No; it relies on passive vent slots for convection cooling.

Q8: How is cable management handled?
A8: A rear-mounted cable duct with snap-in clamps organizes and secures wiring.

Q9: Can I hot-swap cards?
A9: Yes; the keyed backplane connectors and quick-release bezel allow tool-free card replacement.

Q10: Which systems is this rack compatible with?
A10: Designed for Yokogawa’s CENTUM® VP and related modular automation platforms.
