Frequently Asked Questions (Q&A):

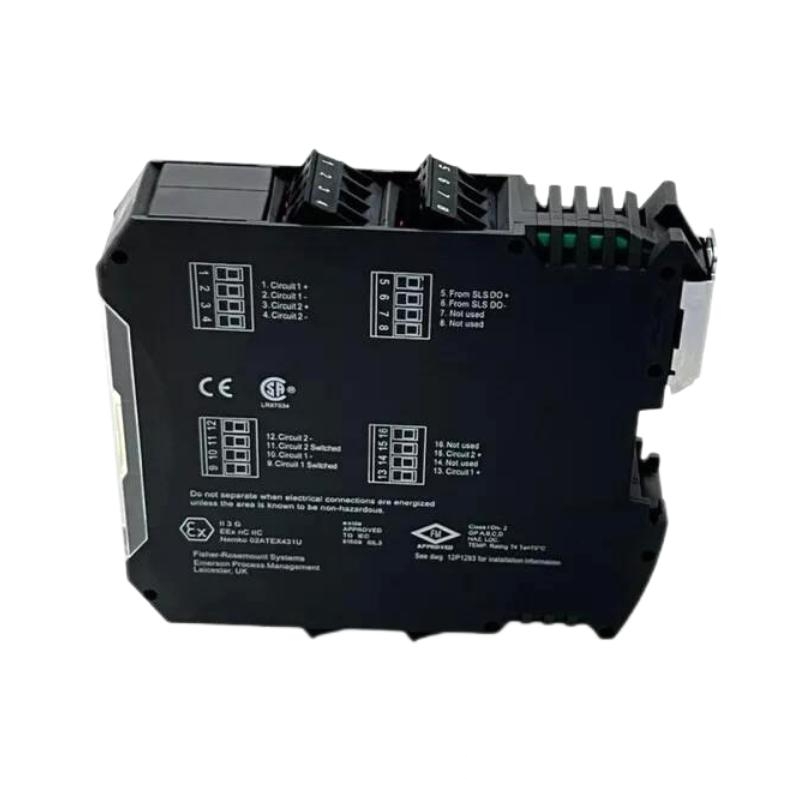

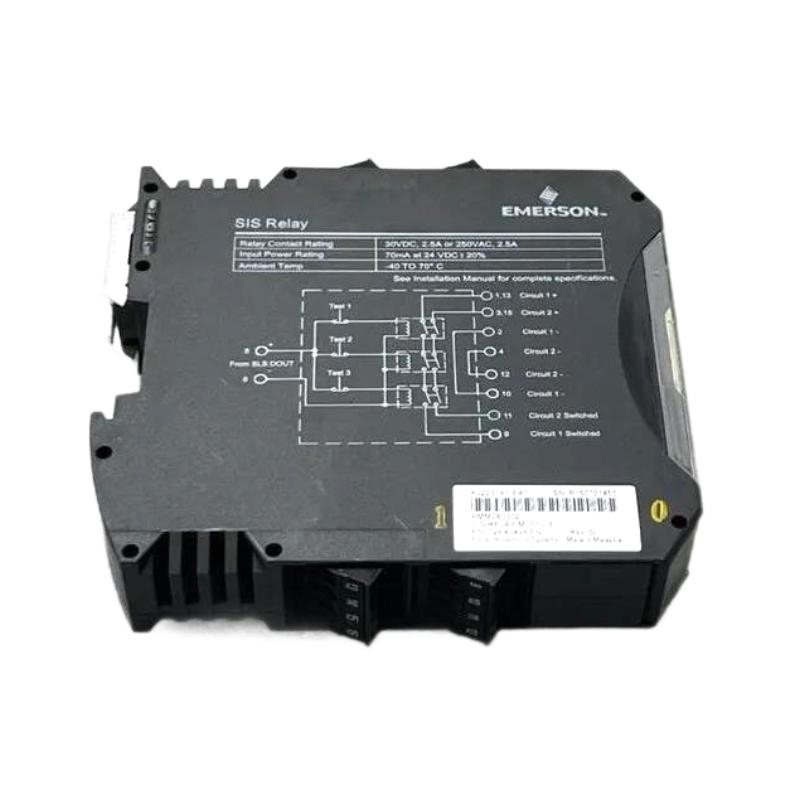

Q1: What type of outputs does the KJ2231X1-EA1 provide?
A1: This module provides relay-based outputs, specifically Form A (normally open) mechanical relay contacts.

Q2: Is this module SIL-certified for use in safety applications?
A2: Yes, it is TUV-certified for SIL 3 compliance according to IEC 61508 standards.

Q3: How many relay channels are included?
A3: The module includes 2 independent relay output channels.

Q4: What is the maximum switching capacity per relay?
A4: Each relay can handle up to 5 A at 250 VAC or 30 VDC.

Q5: Can the module be replaced while the system is online?
A5: Yes, the module is hot-swappable, which means you can replace it without shutting down the system.

Q6: What kind of diagnostics does it offer?
A6: It provides contact monitoring and watchdog supervision, helping verify relay operation and system integrity.

Q7: What systems is the KJ2231X1-EA1 compatible with?
A7: It is specifically designed for the DeltaV SLS Smart Logic Solver, part of Emerson’s SIS architecture.

Q8: Does the module provide electrical isolation?
A8: Yes, it includes galvanic isolation both channel-to-channel and channel-to-ground for maximum system protection.

Q9: What are the module’s physical dimensions and weight?
A9: The unit measures 36 x 229 x 51 mm and weighs 0.4 kg.

Q10: In what environments can the module be used?
A10: It is rated for -40°C to +70°C operation, suitable for harsh industrial and process plant environments.
