Frequently Asked Questions (FAQ)

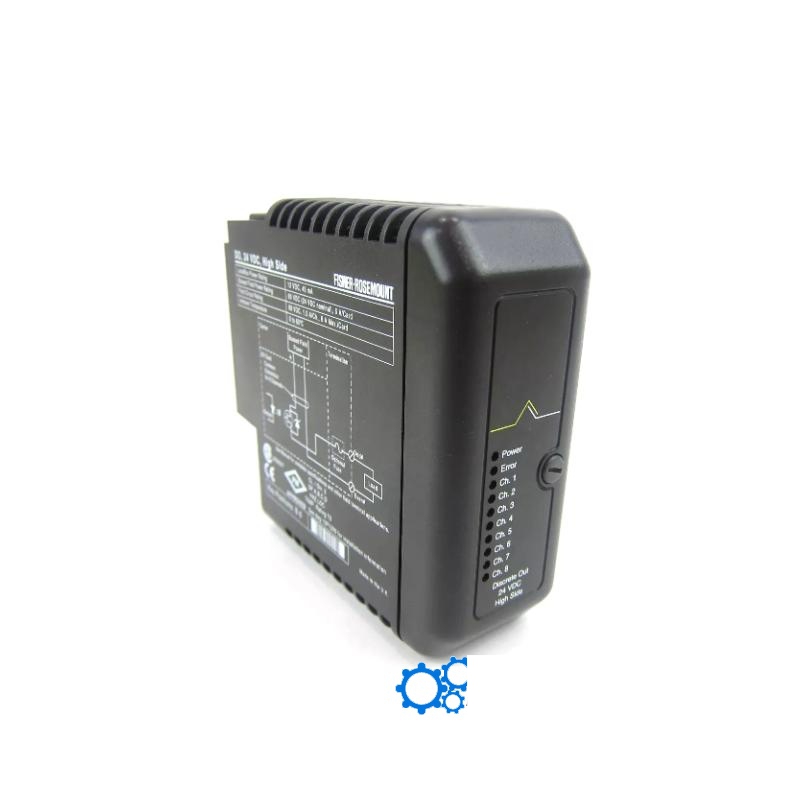

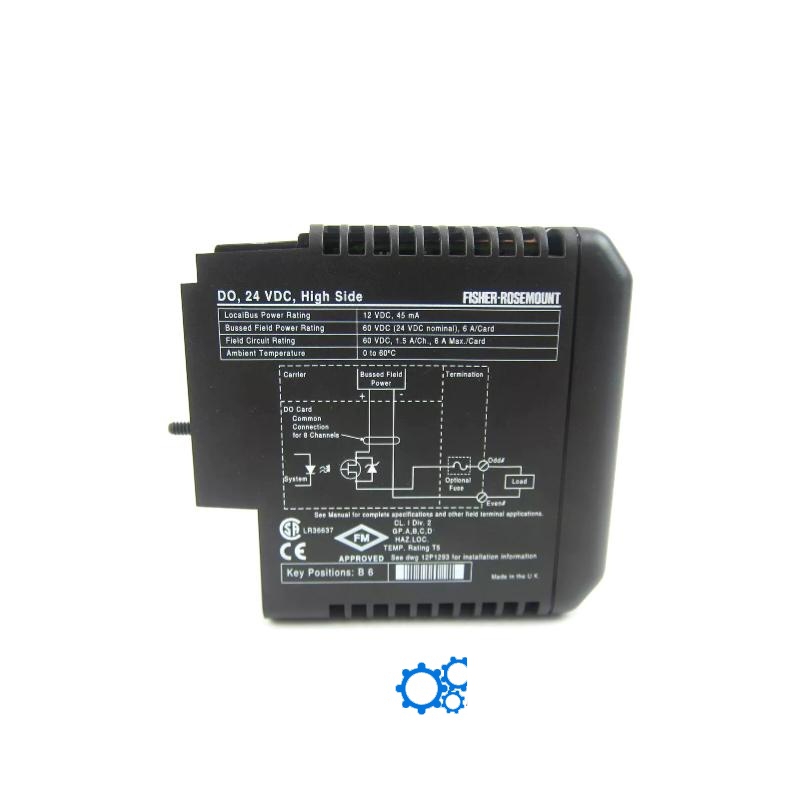

Q1: What is the primary function of the KJ3001X1-BJ1 module?
A1: It serves as an 8-channel digital output module, providing high-side switching for 24 VDC outputs in control systems.

Q2: Can the KJ3001X1-BJ1 handle inductive loads?
A2: Yes, but appropriate suppression devices should be used to protect the module from voltage spikes.

Q3: Is the module hot-swappable?
A3: Yes, it can be replaced without shutting down the system, minimizing downtime.

Q4: What diagnostics are available on the module?
A4: The module features channel and module status LEDs, along with fault detection capabilities.

Q5: How does the module integrate with the DeltaV system?
A5: It seamlessly integrates via the DeltaV backplane, allowing for straightforward configuration and operation.

Q6: What is the isolation voltage of the module?
A6: The module provides 1500 V RMS isolation between channels and system components.

Q7: Can the module operate in extreme temperatures?
A7: Yes, it operates within a temperature range of –30°C to 60°C.

Q8: What is the maximum current per channel?
A8: Each channel can handle up to 1.5 A, with a total module capacity of 6 A.

Q9: Is the module suitable for safety-critical applications?
A9: While it offers robust performance, suitability for safety-critical applications depends on system requirements and certifications.

Q10: What maintenance is required for the module?
A10: Regular inspections for physical damage and ensuring secure connections are recommended; however, the module is designed for low maintenance.
