FAQ (10 Questions)

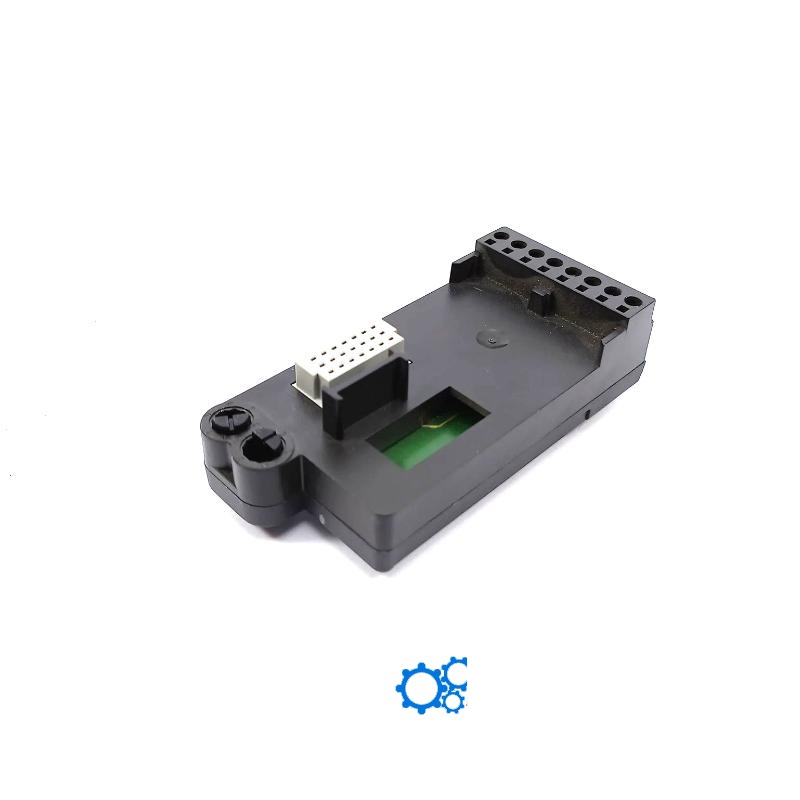

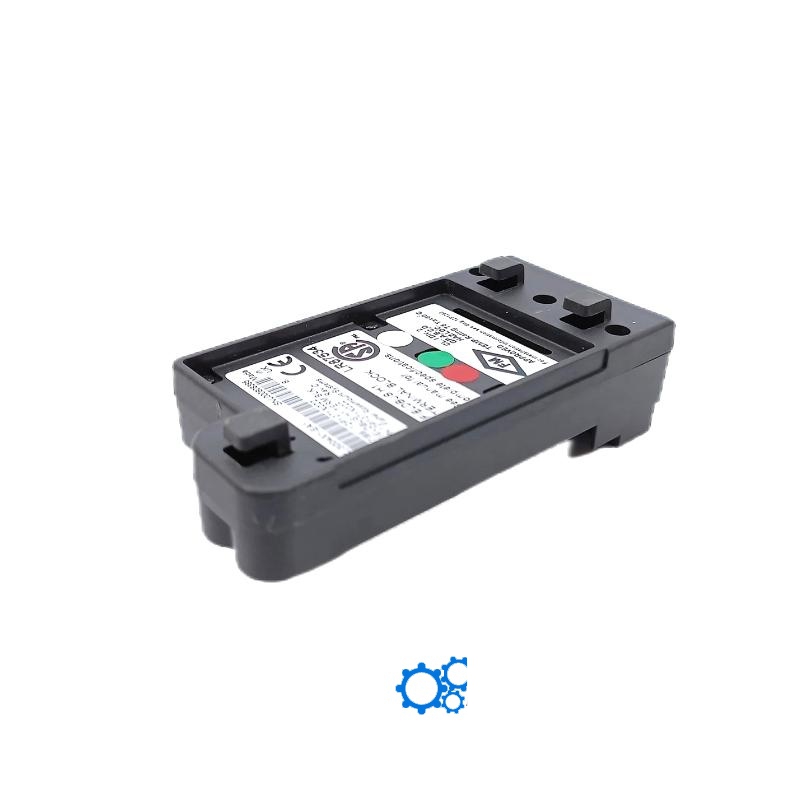

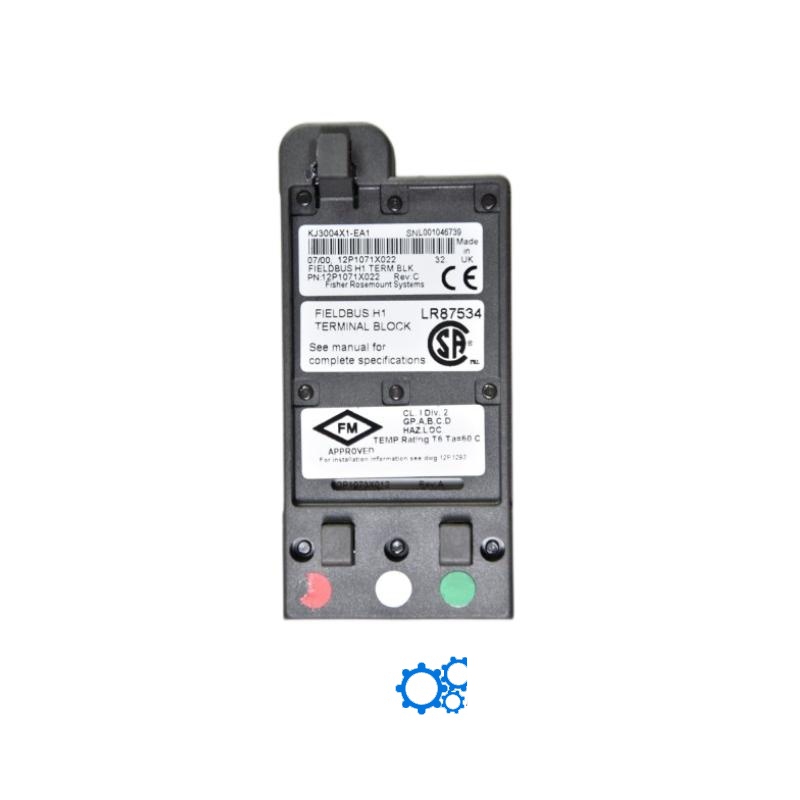

Q1: What is the main function of the Emerson KJ3004X1-EA1 termination board?

A1: The KJ3004X1-EA1 is designed to facilitate the termination of field devices in a FOUNDATION Fieldbus network, ensuring reliable communication between field devices and control systems.

Q2: What industries use the KJ3004X1-EA1?

A2: The KJ3004X1-EA1 is used in industries such as oil & gas, chemical processing, power generation, and water treatment, where accurate field device communication is essential.

Q3: How many devices can the KJ3004X1-EA1 support?

A3: The termination board supports up to 8 field devices on a single bus segment.

Q4: What is the operating temperature range for the KJ3004X1-EA1?

A4: The KJ3004X1-EA1 operates within a temperature range of –20°C to +60°C, suitable for a wide range of industrial environments.

Q5: What is the power supply requirement for the KJ3004X1-EA1?

A5: The termination board requires a 24 VDC power supply for operation.

Q6: How is the KJ3004X1-EA1 mounted?

A6: The KJ3004X1-EA1 is designed for easy mounting on a DIN rail, allowing for quick installation in control cabinets.

Q7: What are the dimensions and weight of the KJ3004X1-EA1?

A7: The KJ3004X1-EA1 has dimensions of 100 x 60 x 30 mm and weighs 0.05 kg, making it compact and lightweight.

Q8: What is the Fieldbus power requirement for the KJ3004X1-EA1?

A8: The KJ3004X1-EA1 requires a 10-12 V fieldbus power supply to operate correctly.

Q9: Can the KJ3004X1-EA1 be used in hazardous environments?

A9: Yes, the KJ3004X1-EA1 is designed to operate in hazardous environments where reliable field device communication is critical.

Q10: How easy is it to integrate the KJ3004X1-EA1 with a DeltaV system?

A10: The KJ3004X1-EA1 integrates seamlessly with other DeltaV system components, providing an efficient and reliable solution for process control.
