Frequently Asked Questions (Q&A):

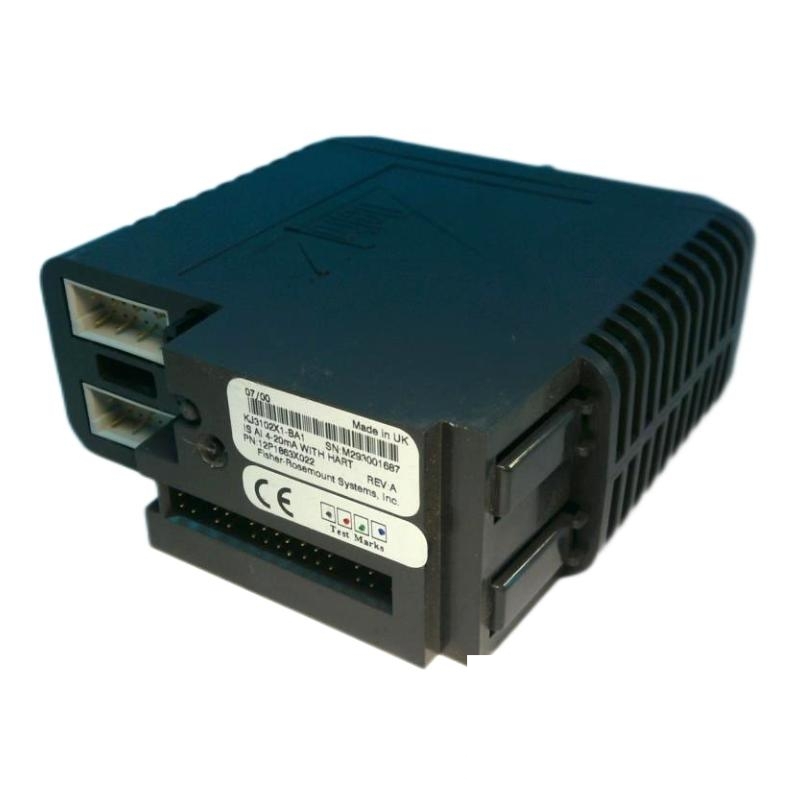

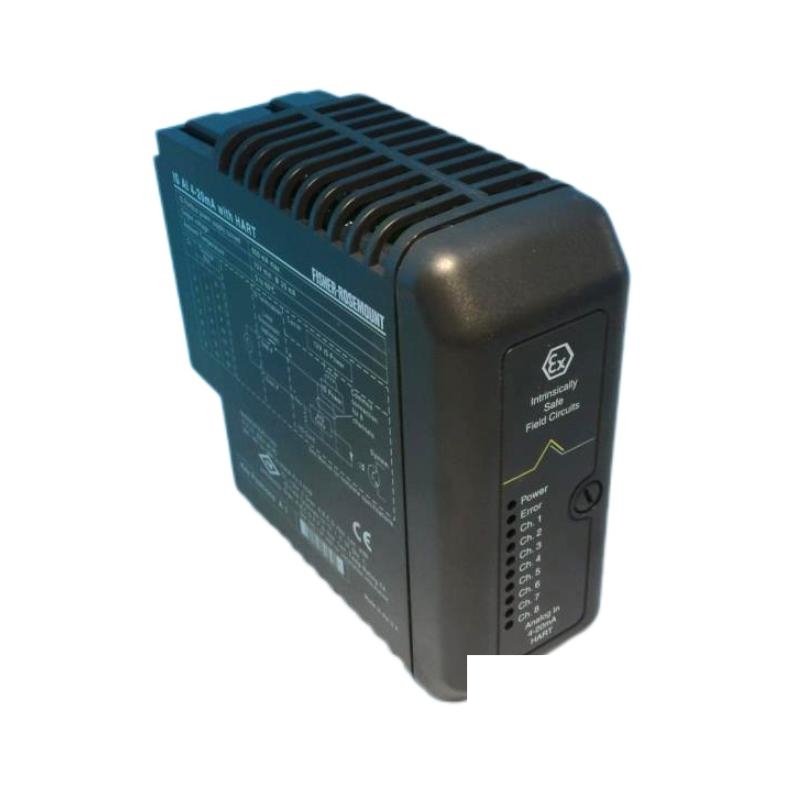

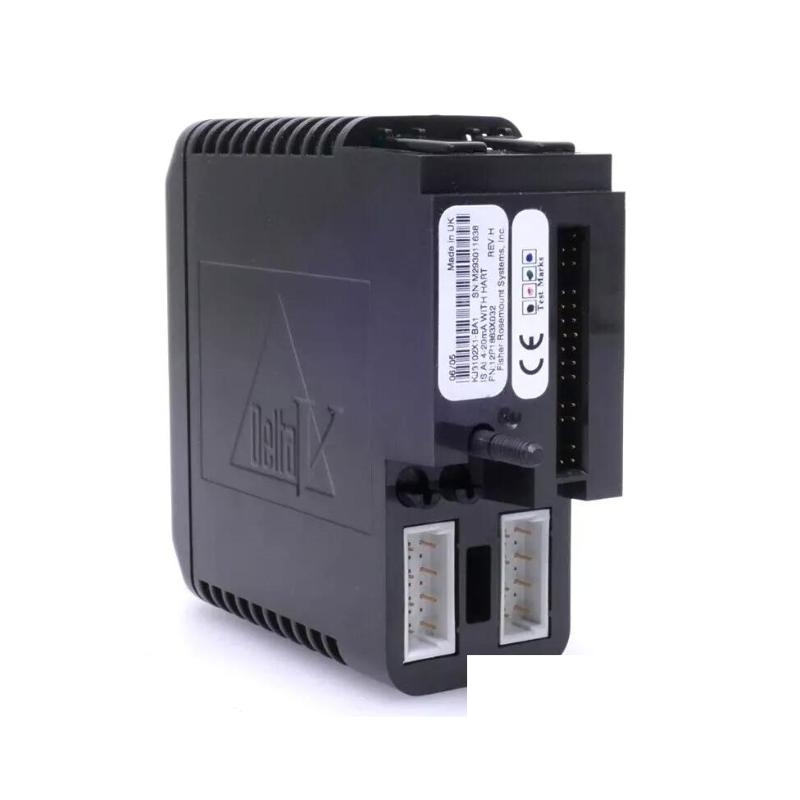

Q1: What is the function of the KJ3102X1-BA1 module?
A1: It’s an 8-channel analog input module designed to read and digitize 4–20 mA signals from field devices for the DeltaV control system.

Q2: Does this module support HART communication?
A2: Yes, it supports HART communication when used with compatible HART-enabled devices and interfaces.

Q3: Can the module be hot-swapped?
A3: Absolutely. The module is hot-swappable, allowing for replacement without system shutdown.

Q4: What kind of input isolation does it provide?
A4: It offers channel-to-channel and channel-to-ground galvanic isolation to prevent signal interference.

Q5: What is the input signal range?
A5: The signal range is nominally 4–20 mA, but the module can detect inputs in the range of 0–24 mA.

Q6: How accurate is the module?
A6: It delivers ±0.1% of span accuracy, ensuring high measurement precision.

Q7: What are the physical dimensions of the module?
A7: It measures 44 × 102 × 108 mm, making it compact for panel installations.

Q8: What is the weight of the KJ3102X1-BA1?
A8: The module weighs 0.22 kg, making it lightweight and easy to handle.

Q9: In what temperature range can this module operate?
A9: It operates from -40°C to +70°C, suitable for most industrial environments.

Q10: What applications is this module suitable for?
A10: It’s used in pressure, temperature, flow, and level monitoring—across process plants in industries like oil & gas, chemical, and power.
