Frequently Asked Questions (Q&A):

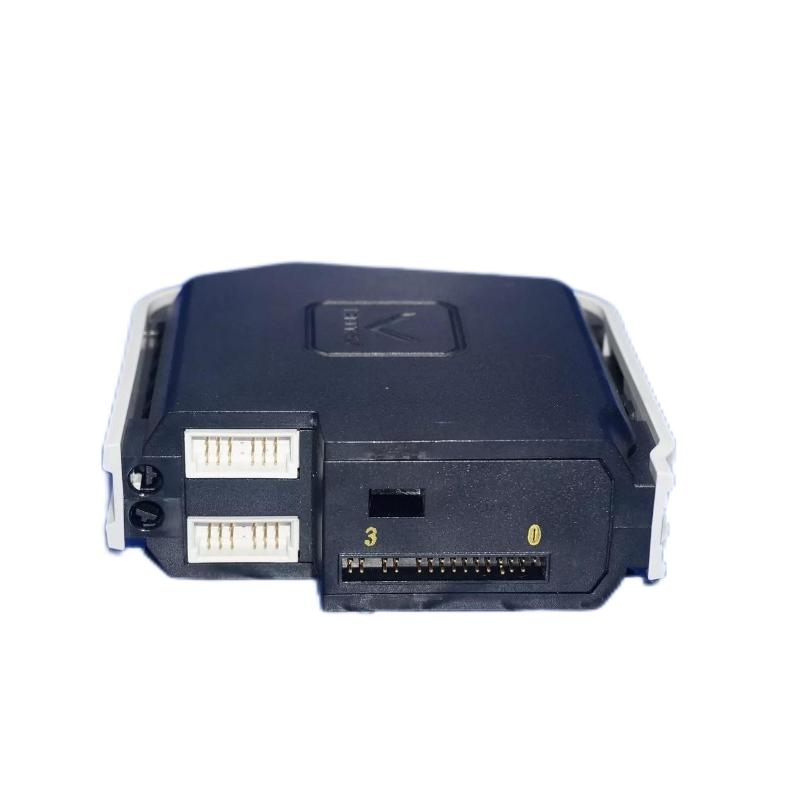

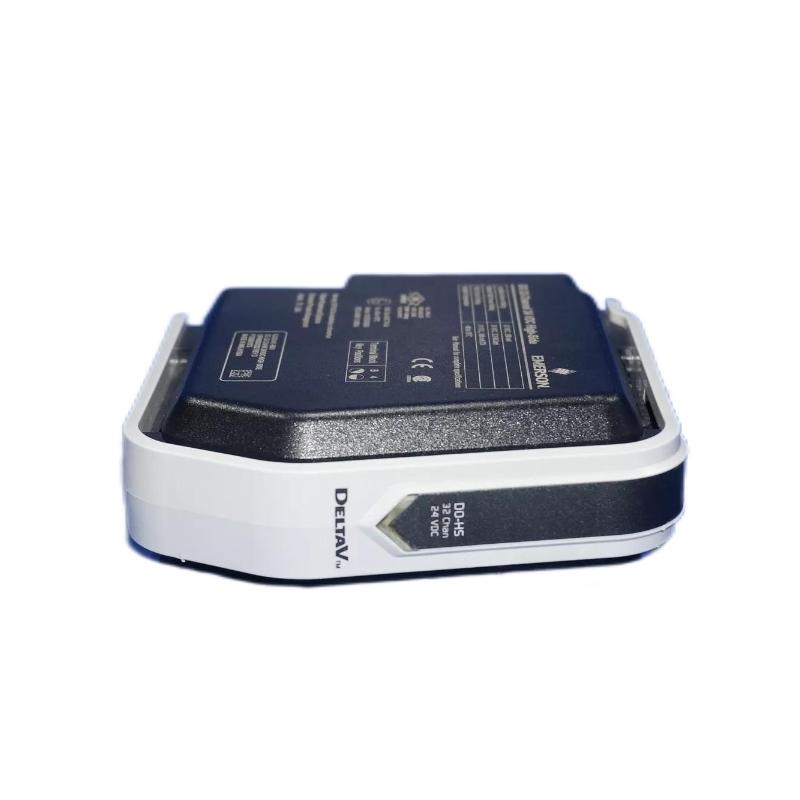

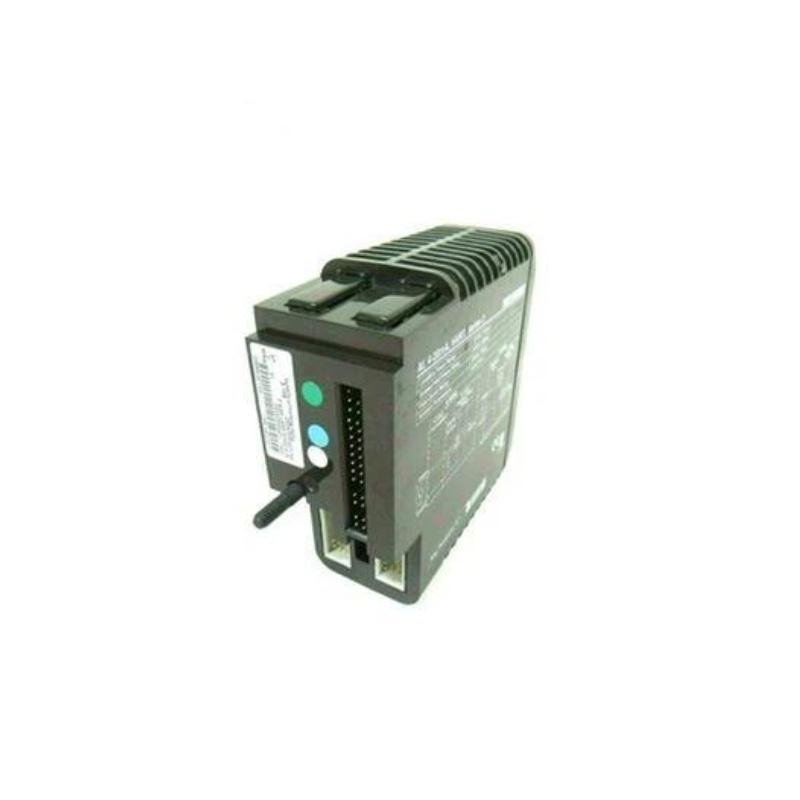

Q1: What type of devices can be connected to the KJ3204X1-BK1 output card?
A1: You can connect devices like solenoids, indicator lights, alarms, motor contactors, and other 24 VDC digital actuators.

Q2: Is this module hot-swappable?
A2: Yes, the KJ3204X1-BK1 supports hot-swapping when used in a redundant DeltaV system, allowing for safe replacements without process interruption.

Q3: How many output channels does it provide?
A3: It provides 16 discrete digital output channels per module.

Q4: What is the maximum current per channel?
A4: Each channel can handle up to 0.5 A output current.

Q5: Can this module drive inductive loads?
A5: Yes, it is suitable for resistive and inductive loads, with built-in protection for overload and short circuits.

Q6: What diagnostics are available on the card?
A6: It includes diagnostics for open circuit detection, short circuits, and power status.

Q7: What systems is this card compatible with?
A7: It is designed for full integration into Emerson’s DeltaV distributed control system.

Q8: What’s the physical size of the module?
A8: It measures 41.8 mm wide, 130.8 mm high, and 131 mm deep.

Q9: What is the total weight of the unit?
A9: The module weighs approximately 0.4 kg.

Q10: Can the outputs be configured individually?
A10: Yes, each output channel can be individually configured and monitored through DeltaV software.
