Frequently Asked Questions (FAQ)

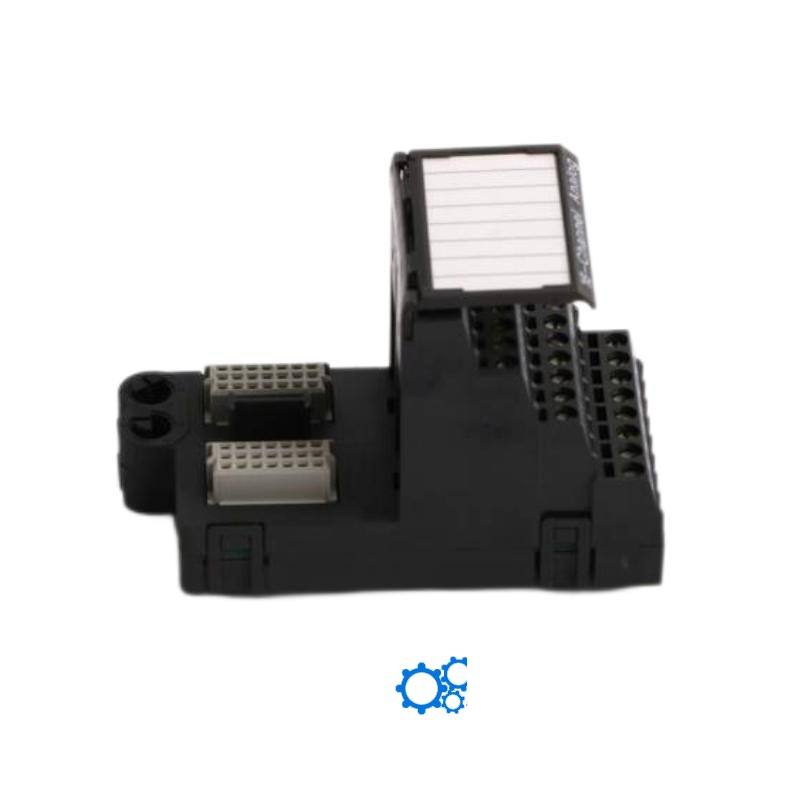

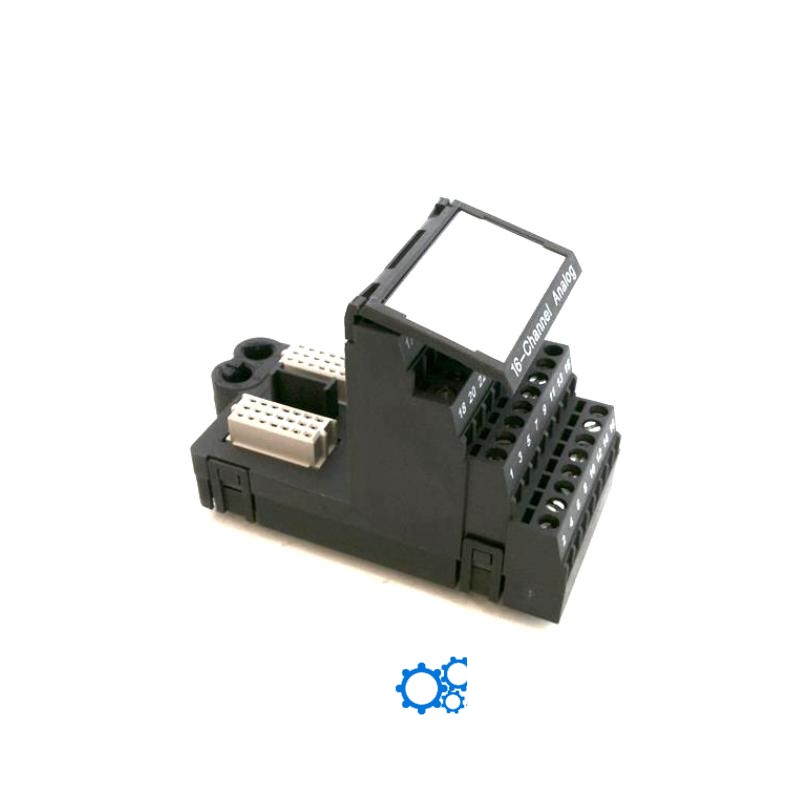

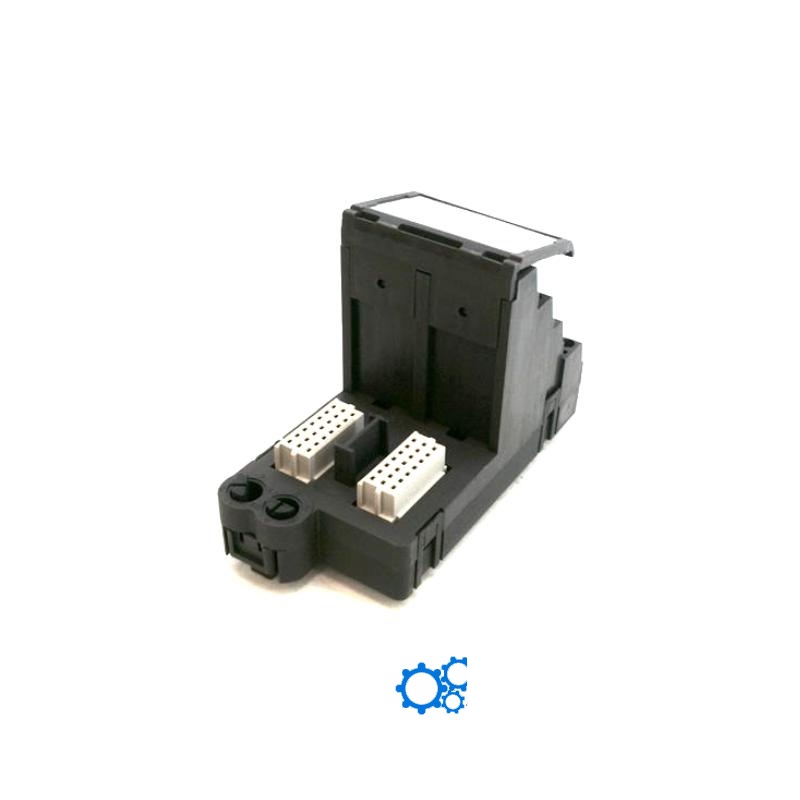

Q1: What is the KJ3223X1-EA1 used for?
A1: The KJ3223X1-EA1 is a terminal block used to establish secure and reliable connections for both analog and digital signals in industrial automation and process control systems.

Q2: What is the voltage rating of the KJ3223X1-EA1 terminal block?
A2: The voltage rating for the KJ3223X1-EA1 is 24V DC.

Q3: What is the current rating for each terminal in the KJ3223X1-EA1?
A3: The current rating for each terminal is 4 A.

Q4: What environmental protection rating does the KJ3223X1-EA1 have?
A4: The KJ3223X1-EA1 has an IP20 environmental protection rating, meaning it is protected from solid objects larger than 12mm but is not dustproof or water-resistant.

Q5: Can the KJ3223X1-EA1 terminal block be used in outdoor applications?
A5: The terminal block is designed for indoor use in controlled environments, as it has an IP20 rating.

Q6: How is the KJ3223X1-EA1 mounted?
A6: The terminal block is mounted on a DIN rail, which is a standard mounting system for industrial control panels.

Q7: What is the operating temperature range of the KJ3223X1-EA1?
A7: The operating temperature range is from –20°C to +60°C.

Q8: What materials are used in the construction of the KJ3223X1-EA1?
A8: The terminal block is made from high-quality electrical insulation materials, ensuring long-lasting performance and safety.

Q9: Is the KJ3223X1-EA1 compatible with the DeltaV control system?
A9: Yes, the KJ3223X1-EA1 is designed to integrate seamlessly with Emerson’s DeltaV process control system.

Q10: How do I install the KJ3223X1-EA1 terminal block?
A10: The terminal block is designed for easy installation on a DIN rail, simplifying the setup in industrial control panels.
