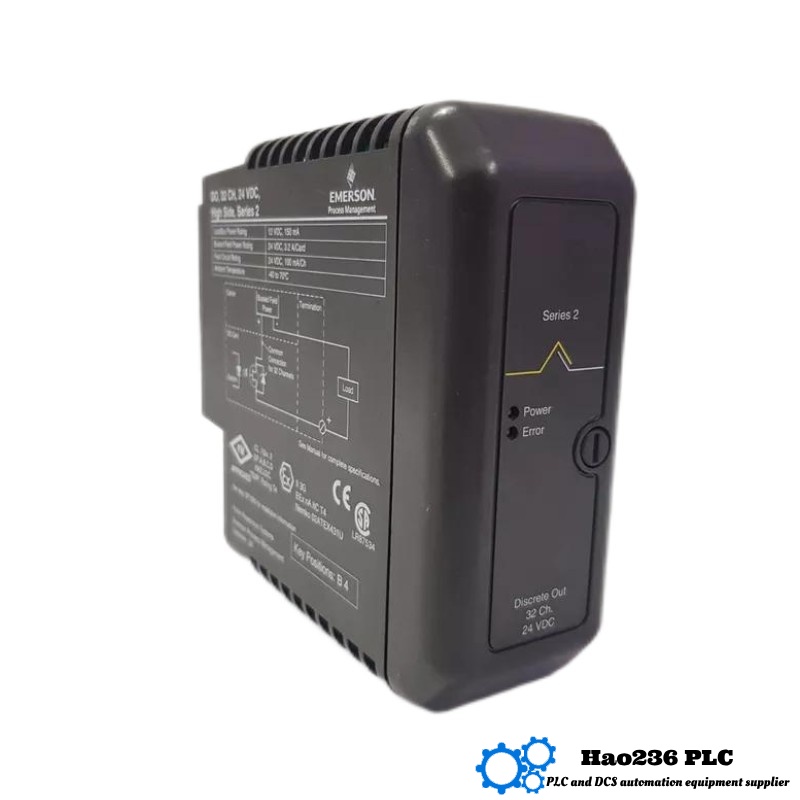

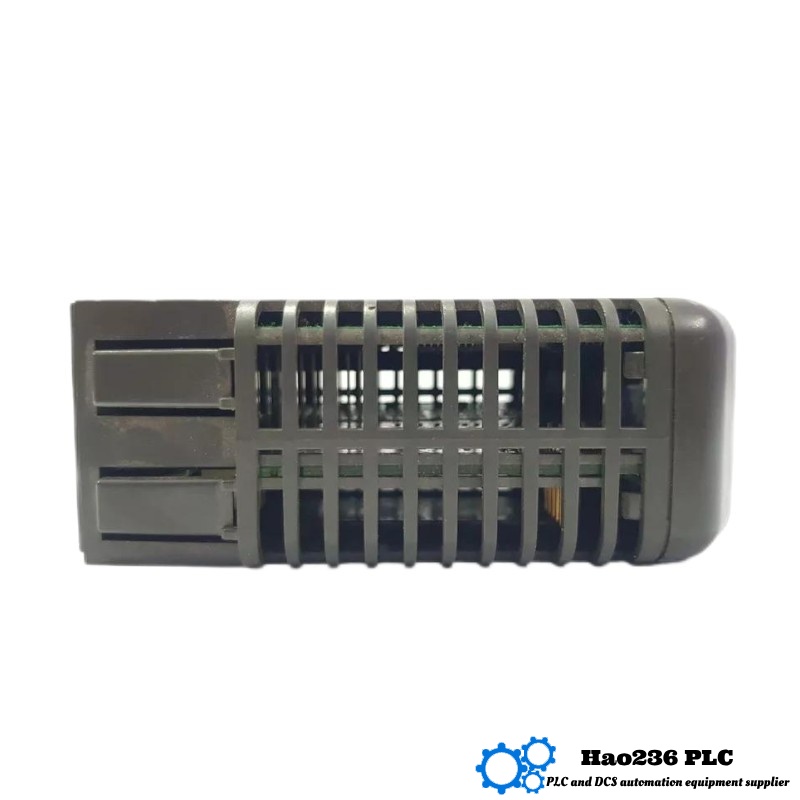

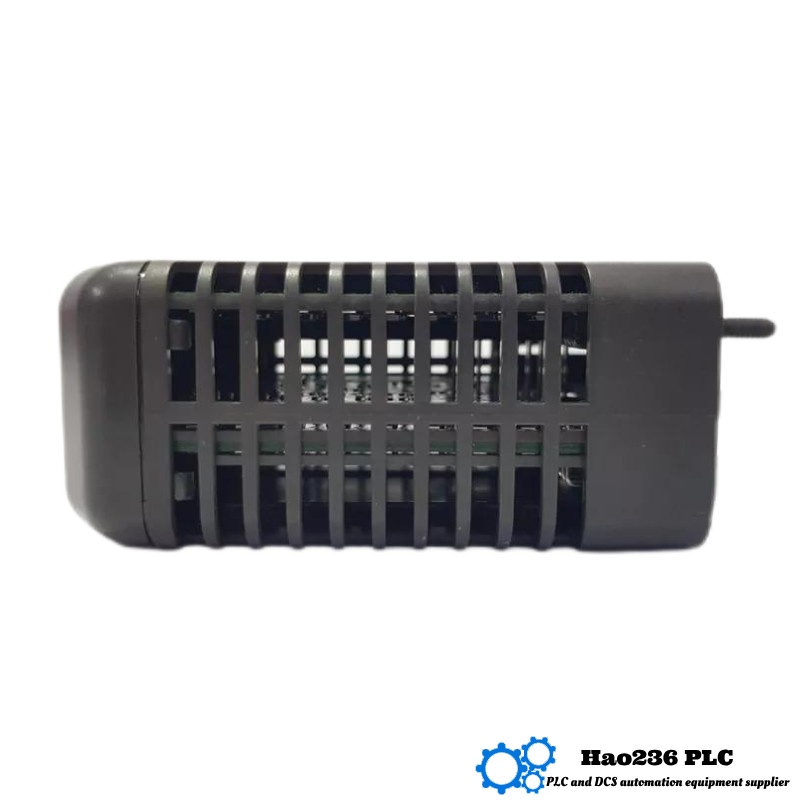

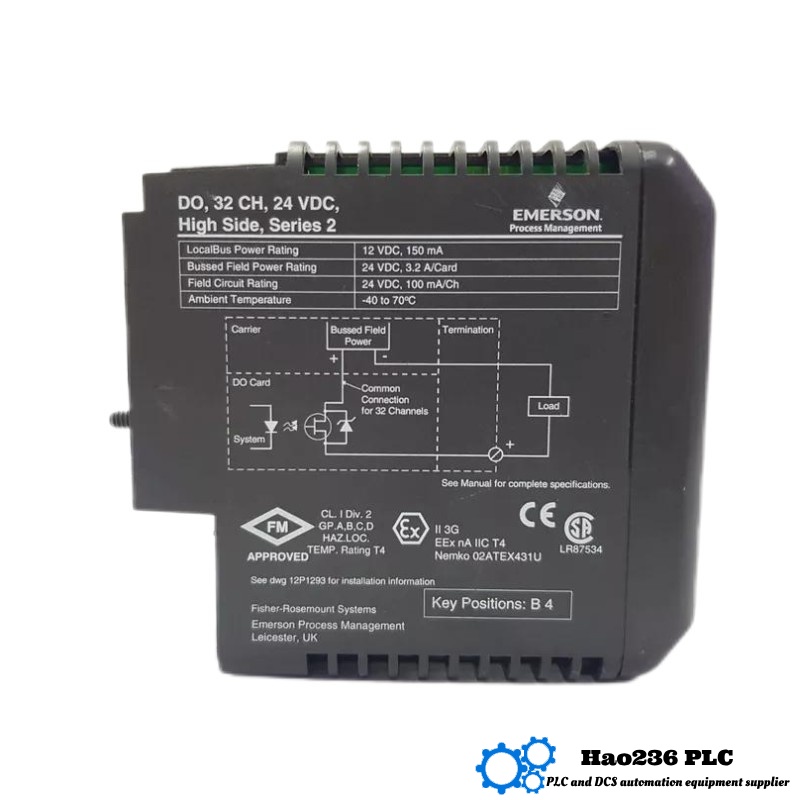

FAQs (10 QA) for VE4002S1T2B5

Q1: How many discrete outputs does VE4002S1T2B5 provide?
A1: It provides 32 discrete high‑side output channels.

Q2: What is the output voltage and current per channel?
A2: Each channel outputs 24 V DC and is typically rated for 100 mA per channel.

Q3: What is the field power requirement?
A3: The module requires 24 V DC field power, up to approximately 3.2 A for full loading.

Q4: What is the local bus power requirement?
A4: It draws about 150 mA from the 12 V DC local bus.

Q5: What is the module’s response time?
A5: Its response time is typically ≤ 1 ms.

Q6: What environmental temperature range can it tolerate?
A6: It operates between –40 °C and +70 °C.

Q7: What are the module’s dimensions and weight?
A7: Approximate size is 86.8 mm × 51.1 mm × 32.4 mm, with weight around 0.5 kg.

Q8: What protection does it offer?
A8: It provides per-channel isolation, protection from faults, and an IP20 rating for indoor industrial use.

Q9: What applications is this module suited for?
A9: It’s ideal for controlling solenoids, relays, actuators, indicators, valves, and other discrete 24 V DC field devices.

Q10: How does this module fit into a control architecture?
A10: It plugs into a standard I/O carrier or backplane in a modular I/O system and integrates seamlessly with Emerson’s control environment.
