FAQ (Frequently Asked Questions)

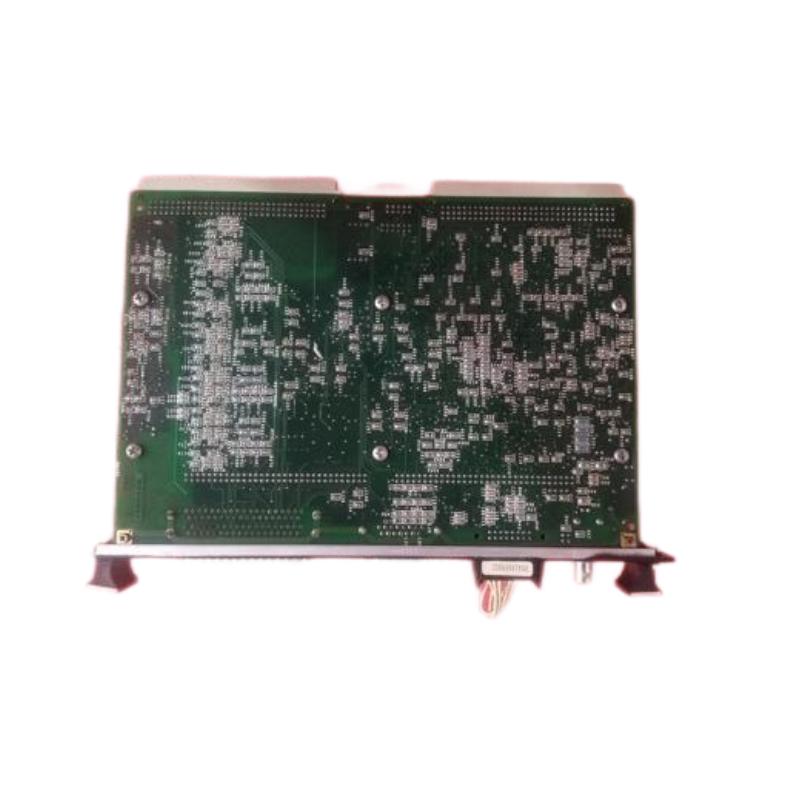

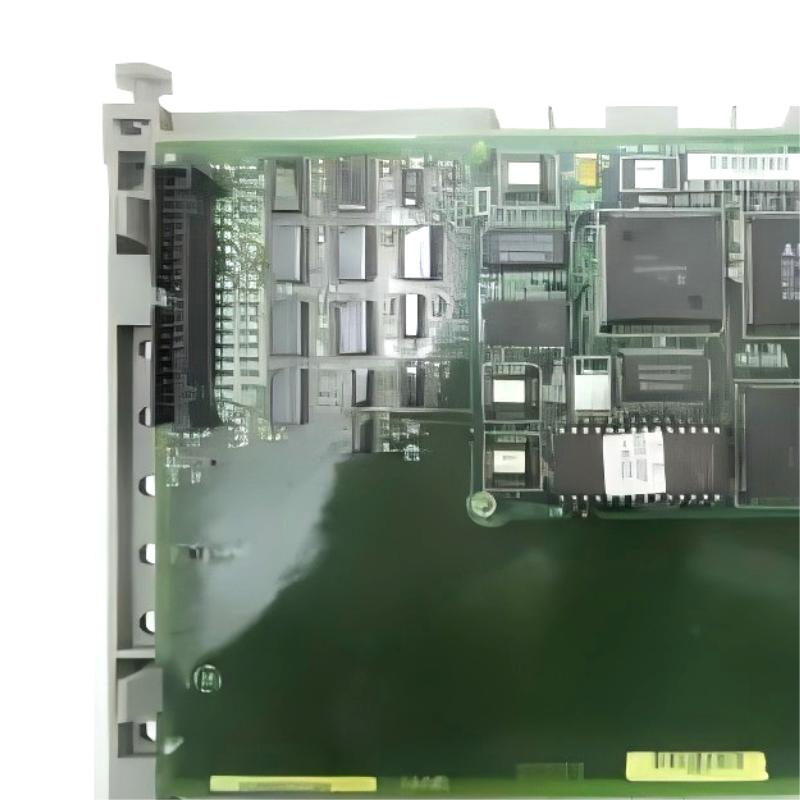

Q1: What is the primary function of the IS215UCVDH5A board?
A1: It acts as a VME assembly board (controller/logic module) in the Mark VI/VIe system, executing control logic, interfacing with I/O and communications networks.

Q2: What are its physical dimensions and weight?
A2: Approx. 10.5 in × 7.75 in × 3.5 in (≈ 267 mm × 197 mm × 89 mm); weight about 1.7 kg.

Q3: What is the operating temperature range?
A3: Typically 0 °C to +60 °C; storage rated ‑40 °C to +85 °C (varies by revision).

Q4: What power requirements does it have?
A4: Uses +5 V DC (~6.08 A), +12 V DC (~0.9 A), ‑12 V DC (~0.2 A) in typical specification.

Q5: What communications interfaces are included?
A5: Features an Ethernet port (10Base‑T), two ISBUS/ISNet interfaces, two COM ports and front‑panel status LEDs.

Q6: Is the board compatible with redundancy or safety systems?
A6: Yes— it is part of the Mark VI/VIe ecosystem which supports redundant configurations (dual, TMR) and integration with protection logic.

Q7: Where is this board typically applied?
A7: In turbine control racks for steam, gas or wind turbines; in process or power generation control systems; and in large rotating‑equipment automated systems.

Q8: Why would one choose this board instead of a generic controller?
A8: Because it is purpose‑built for turbine and heavy‑industry control, with optimized form‑factor, industry heritage, compatibility with Mark VI/VIe systems and industrial ratings.

Q9: What maintenance or spare‑parts advantages does it offer?
A9: The VME modular format allows board‑level replacement, front‑panel LEDs aid diagnostics, spare‑parts are simplified by standardized format across many systems.

Q10: What upgrade benefit does this board provide?
A10: It allows owners of Mark VI/VIe control racks to replace or upgrade logic modules without replacing the entire system, extending system life and reducing cost.
