FAQ (10 × Q & A)

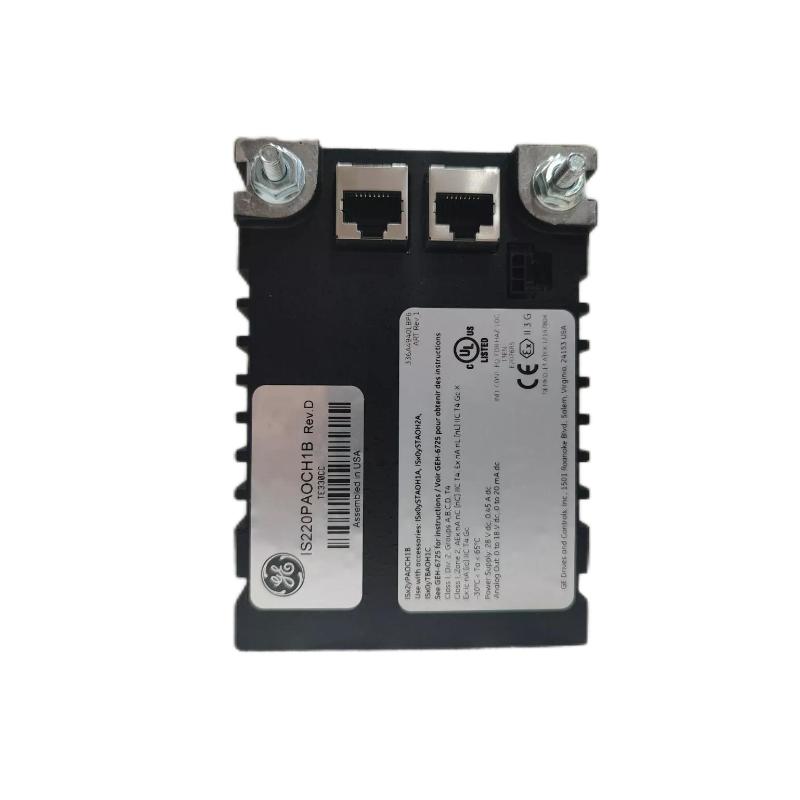

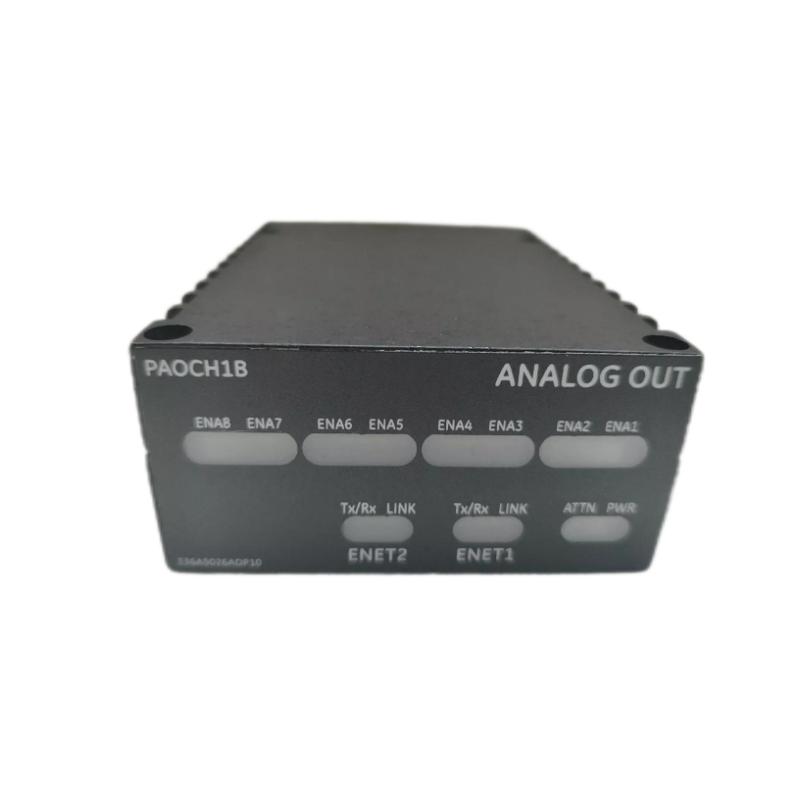

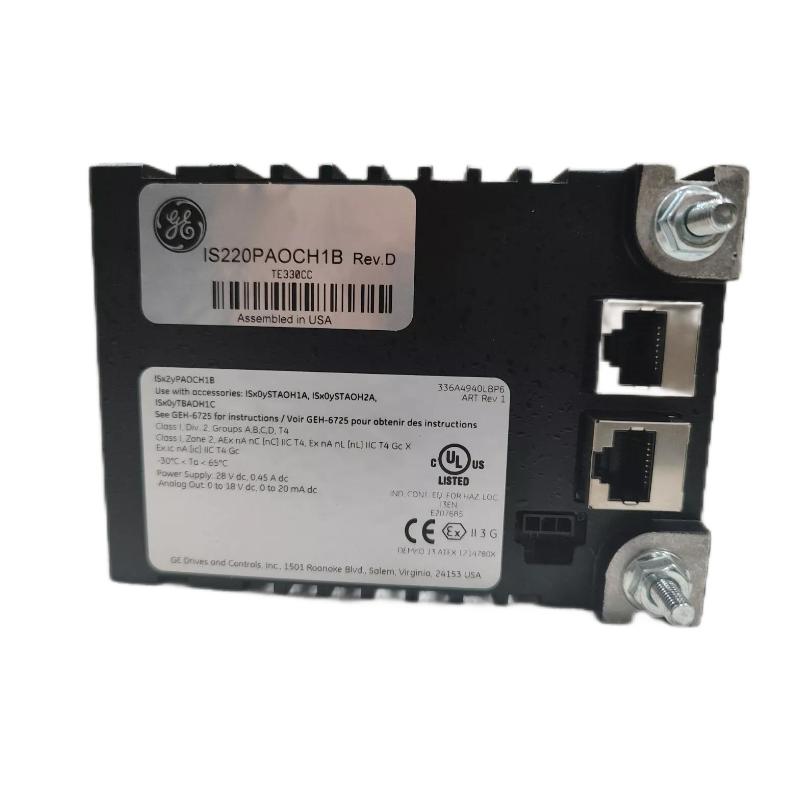

Q1: What is the function of the IS220PAOCH1B?
A1: It converts digital controller commands into precise analog output signals for actuators and control devices.

Q2: How many channels does it provide?
A2: Six independent, isolated analog output channels.

Q3: What output signal types are supported?
A3: Configurable 0–10 V DC or 0–20 mA current outputs.

Q4: What are its dimensions and weight?
A4: Approximately 132 × 94 × 35 mm and 0.20 kg.

Q5: What is the module’s power requirement?
A5: 24 V DC nominal (±10 %), ≤ 5 W consumption.

Q6: Does it feature communication redundancy?
A6: Yes, it includes dual Ethernet ports (10/100 Mbps) for network redundancy.

Q7: Can it operate in extreme conditions?
A7: Yes, it functions reliably from –40 °C to +70 °C.

Q8: Is the module hot-swappable?
A8: Yes, it can be replaced without interrupting the entire control system.

Q9: What diagnostic features are available?
A9: Self-test routines, LED status indicators, and network diagnostics.

Q10: Which control system is it designed for?
A10: It is part of the Mark VIe distributed control system architecture.
