FAQ (10 Questions & Answers)

Q1: What is the main function of the IS220UCSAH1A?
A1: It acts as the central controller in a Mark VIe system, executing control logic, supervising I/O modules and managing network communications.

Q2: What supply voltage does the module require?
A2: The module operates on DC power ranging approximately from 18 V to 36 V, typically around 24 V to 28 V DC.

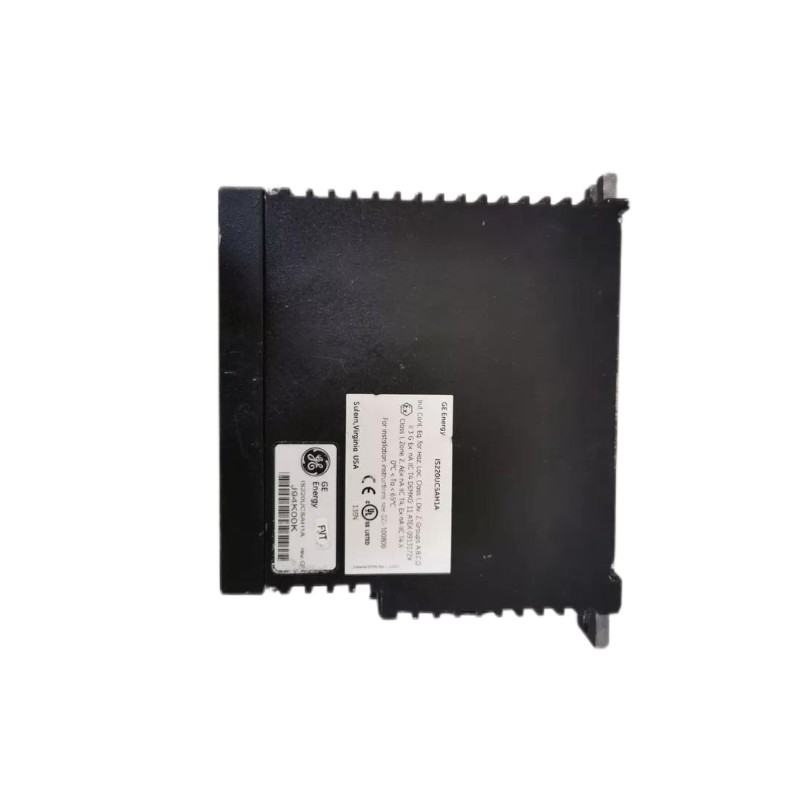

Q3: What are the size and weight of this controller?
A3: Approximate dimensions are 233.4 mm × 177.8 mm × 44.45 mm and the weight is about 2.27 kg.

Q4: What kind of processor and memory does it include?
A4: It uses a 667 MHz Freescale PowerQUICC II Pro processor and typically 256 MB of DDR SDRAM (some variants 512 MB).

Q5: Can the module operate in harsh environments?
A5: Yes, it is designed for industrial conditions, passive cooling (no fans), temperature range typically 0 °C to +65 °C (some variants extend further) and supports wide humidity ranges.

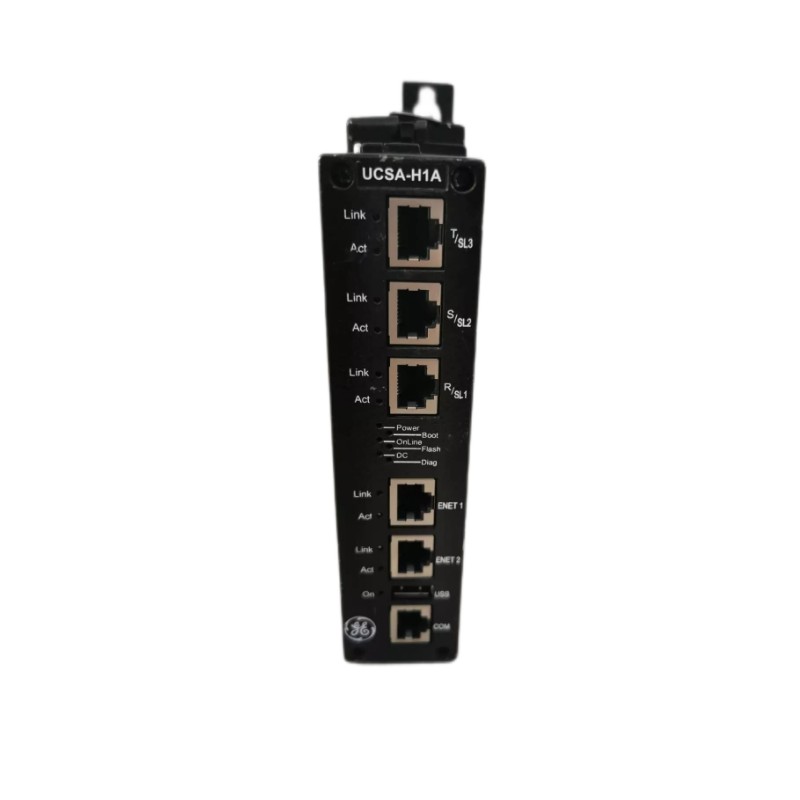

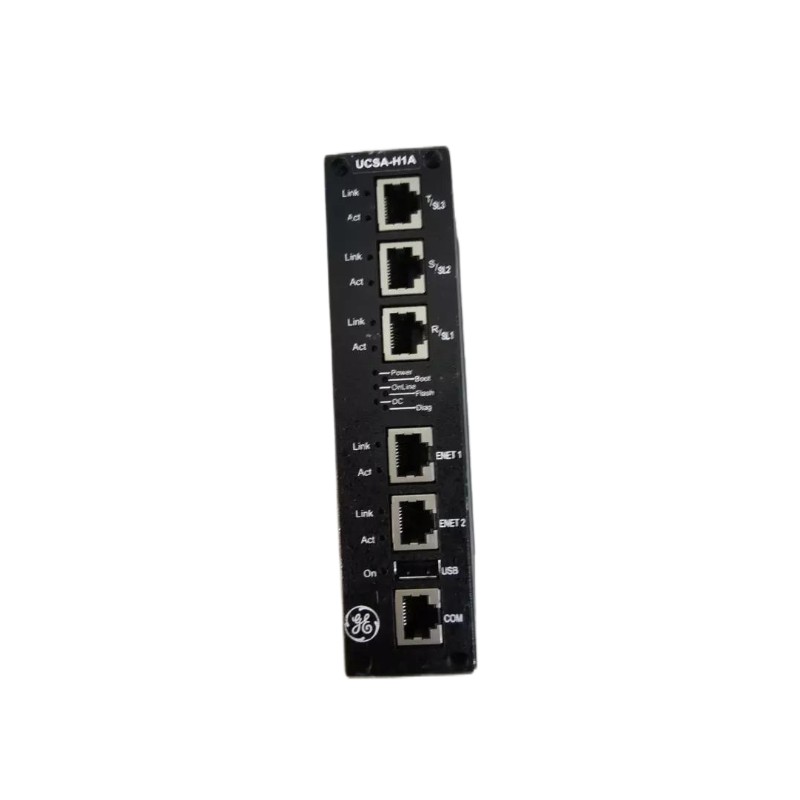

Q6: What kind of communication ports does it provide?
A6: It provides multiple Ethernet RJ-45 ports (5-6), a USB port and other network/diagnostic interfaces to connect with I/O modules and system networks.

Q7: Does it support redundant configurations?
A7: Yes, the design supports triple-redundancy in control architectures, enabling high availability systems.

Q8: In which industries is this controller commonly used?
A8: Key industries include power generation (gas/steam turbines), oil & gas, renewable energy, process automation and manufacturing lines.

Q9: What are the maintenance benefits of this module?
A9: Its plug-in form, front-panel LEDs, USB port, and modular design simplify diagnostics, replacement and servicing, reducing downtime.

Q10: How does this controller contribute to system investment protection?
A10: Because it belongs to a mature architecture (IS220/Mark VIe), it enables long-term lifecycle support, integration with many I/O modules and upgrade paths without full system replacement.
