FAQ (10 Questions & Answers)

Q1: What is the main function of the IS220YTURS1A?

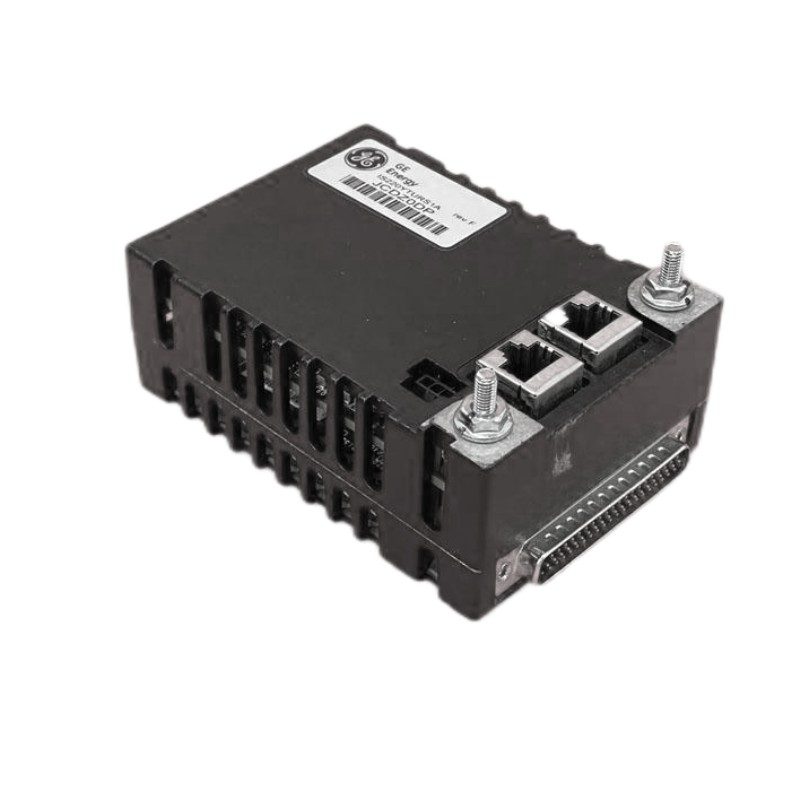

A1: It functions as a turbine input/output pack, capturing turbine-specific signals (speed, flame, trip, E-stop) and interfacing them to the control system’s I/O network.

Q2: What supply voltage does this module require?
A2: It operates at a nominal supply of ~28 V DC, with an operating minimum around ~27.4 V and a maximum ~28.6 V.

Q3: What are its approximate dimensions and weight?
A3: The module measures about 165 mm × 100 mm × 35 mm and weighs approximately 1.26 kg.

Q4: Can it be used in harsh environments?
A4: Yes. It is designed for turbine control environments with an operating temperature of approximately –30 °C to +65 °C and supports mounting in rugged installations.

Q5: Does it support network redundancy?

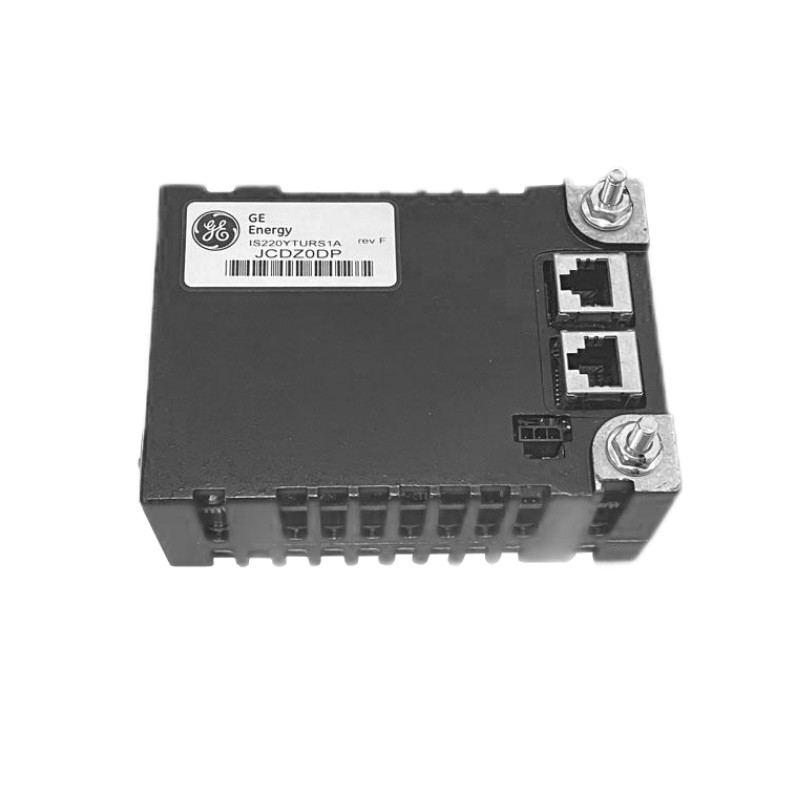

A5: Yes. It features dual Ethernet ports for I/O network redundancy, enhancing system availability.

Q6: Which terminal boards is it compatible with?
A6: It is compatible with turbine control terminal boards such as TTURS1C, TRPAS1A, TRPGS1B and TRPGS2B (depending on configuration).

Q7: Is this module suited for retrofit or upgrade?
A7: Absolutely. The IS220YTURS1A fits into the standard I/O rack architecture and is ideal for upgrades where turbine I/O packs need replacement or modernization.

Q8: What diagnostics features does it include?
A8: It includes LED indicators showing power status, network status, attention/fault, enabling field maintenance and quick visual checks.

Q9: How does it differ from a generic analog I/O pack?
A9: Unlike generic I/O packs, this module is specifically tailored to turbine control signals—speed pickups, flame detectors, trip relay outputs—and interfaces with turbine terminal boards, providing specialized functionality.

Q10: What benefits does it bring to turbine control systems?
A10: The module improves reliability, simplifies I/O integration of turbine-specific signals, supports redundancy, and reduces space/weight while maintaining compatibility within the control system architecture.
