FAQ (Frequently Asked Questions)

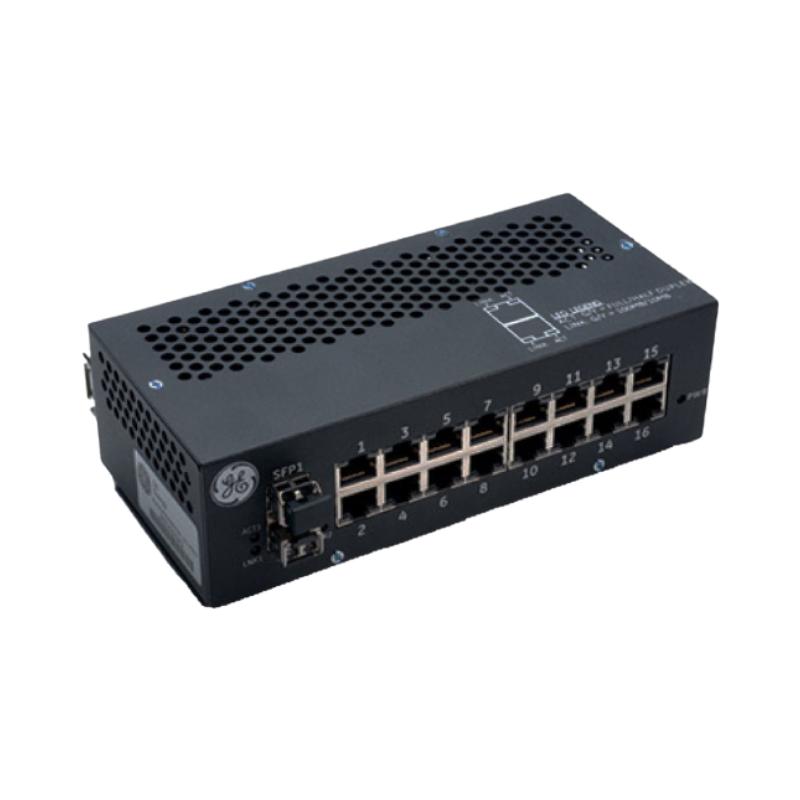

Q1: What is the primary function of the IS420ESWBH3AE module?
A1: It acts as an industrial Ethernet switch within an automation rack, providing multiple 10/100BASE‑TX ports for controllers, I/O and supervisory devices to communicate reliably.

Q2: What is the operating temperature range for the module?
A2: The module supports an operating temperature from approximately –40 °C up to +70 °C.

Q3: How many ports does the switch have?
A3: It provides 8 to 16 RJ‑45 copper 10/100BASE‑TX ports, depending on the variant.

Q4: What are the physical dimensions and weight?
A4: Dimensions are approximately 138 mm (W) × 86 mm (H) × 56 mm (D). Weight is around 0.45 kg.

Q5: Does the module require a fan for cooling?
A5: No — it uses convection cooling (fanless design), reducing maintenance and improving reliability.

Q6: What electrical power supply does it use?
A6: It uses 24/28 V DC nominal supply, typically with dual redundant inputs (‑/‑), rated up to 1 A max.

Q7: Is it suitable for retrofit projects?
A7: Yes — due to its compact size, ruggedness and compatibility with GE Mark VIe/VIeS platforms, it is often used for upgrades or replacements.

Q8: Can it be mounted in a control cabinet or rack?
A8: Yes — it supports DIN‑rail mounting or panel mounting depending on the installation environment.

Q9: What is the typical application environment?
A9: It is especially used in turbine control systems, power generation racks, industrial automation cabinets, and any environment where reliable Ethernet switching is required under harsh conditions.

Q10: What maintenance or service requirements are there?
A10: Minimal — the fanless and rugged design reduces moving parts. Regular inspection of connectors and environment (dust, vibration) is recommended, plus verifying supply redundancy.
