FAQ (Frequently Asked Questions)

Q1: What is the main function of the IS420PPNGH1A module?

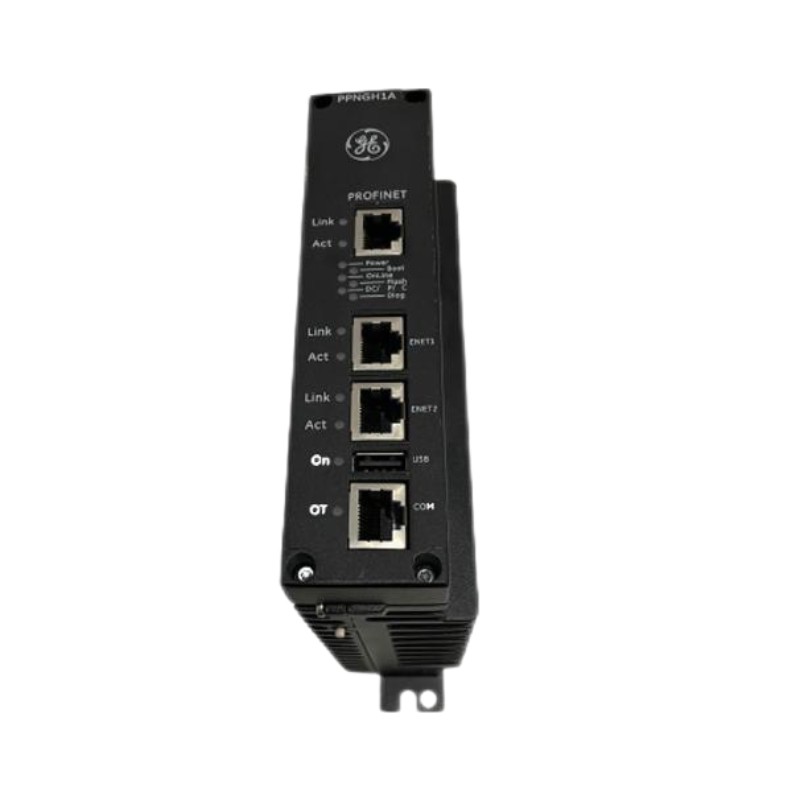

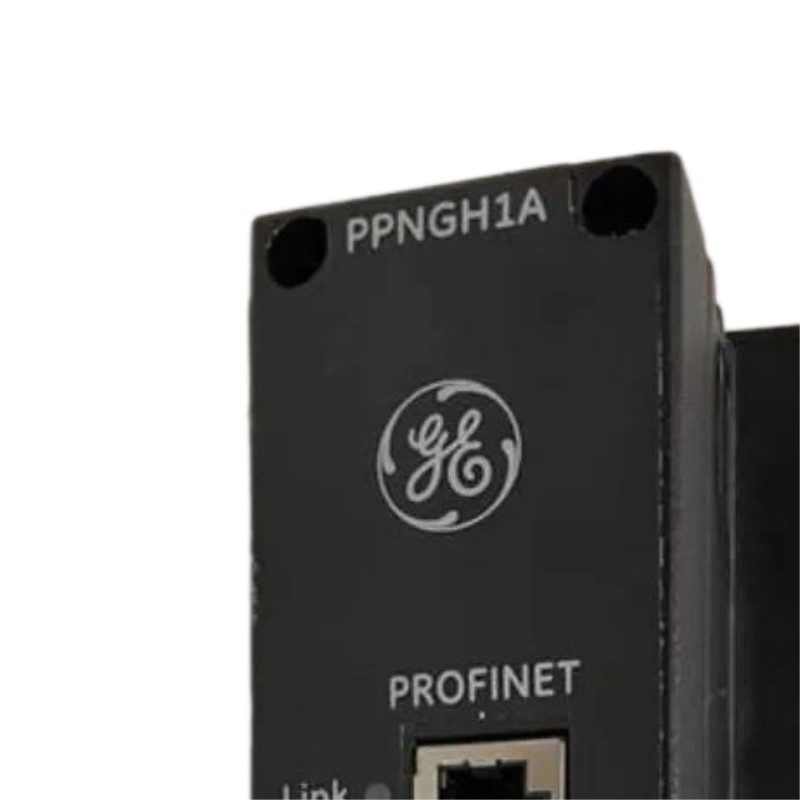

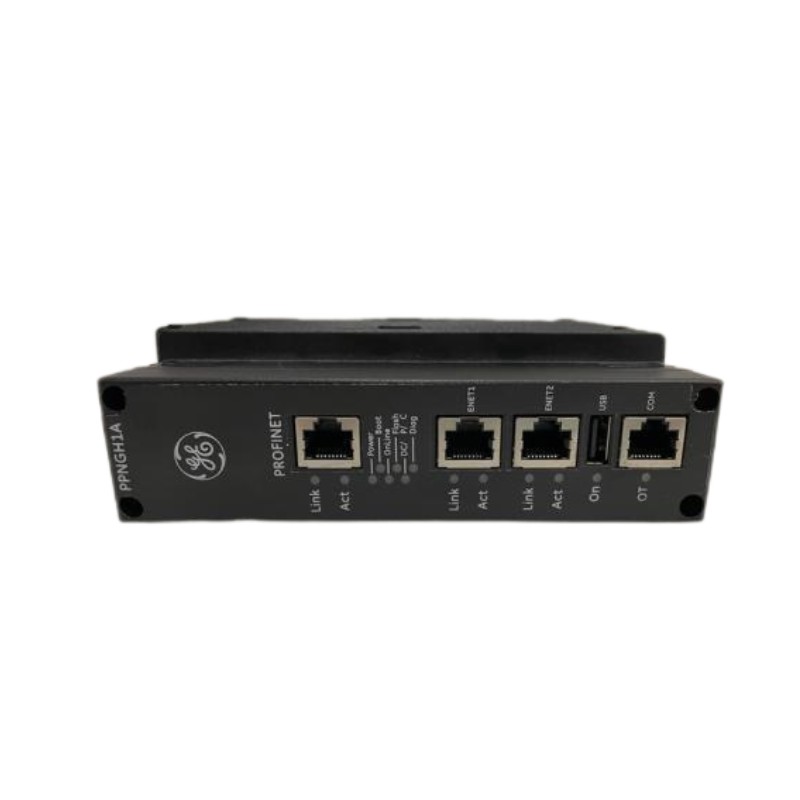

A1: It acts as a PROFINET gateway module connecting GE’s Mark VIe controllers via IONet to PROFINET‑enabled I/O devices and networks.

Q2: What communication ports does it provide?
A2: It typically provides 1 RJ‑45 for PROFINET I/O devices and 2 RJ‑45 ports for IONet communication.

Q3: What is its operating temperature range?
A3: The module supports approximately –40 °C to +70 °C operating range, with storage up to –40 °C to +85 °C.

Q4: What are the module’s dimensions and weight?
A4: Roughly 127 mm × 178 mm × 76 mm, with a weight around 1.30 kg.

Q5: Does it include a fan or battery?
A5: No — it uses passive cooling (fanless), and does not require internal batteries, reducing maintenance.

Q6: Is this module compatible with newer network devices?
A6: Yes — it enables GE Mark VIe systems to interface with modern PROFINET I/O and devices, improving integration.

Q7: What is the maximum data rate supported?
A7: The specification lists a maximum PROFINET data exchange rate of about 6 KB per millisecond.

Q8: Where is this module commonly used?
A8: In turbine control systems, power‑generation automation, large compressors, and process plants requiring deterministic networking.

Q9: Does it support redundant systems?
A9: Yes — the architecture supports redundant power and network configurations for increased reliability.

Q10: What maintenance advantages does it offer?
A10: With no moving parts (fan), no battery, compact form factor and simplified replacement design, it minimizes downtime and operational maintenance.
